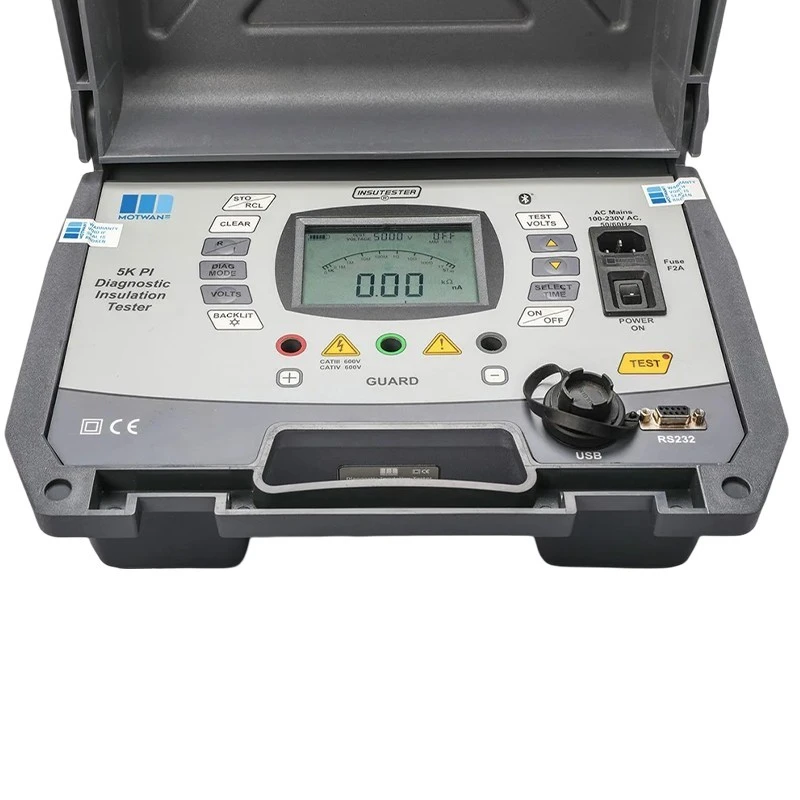

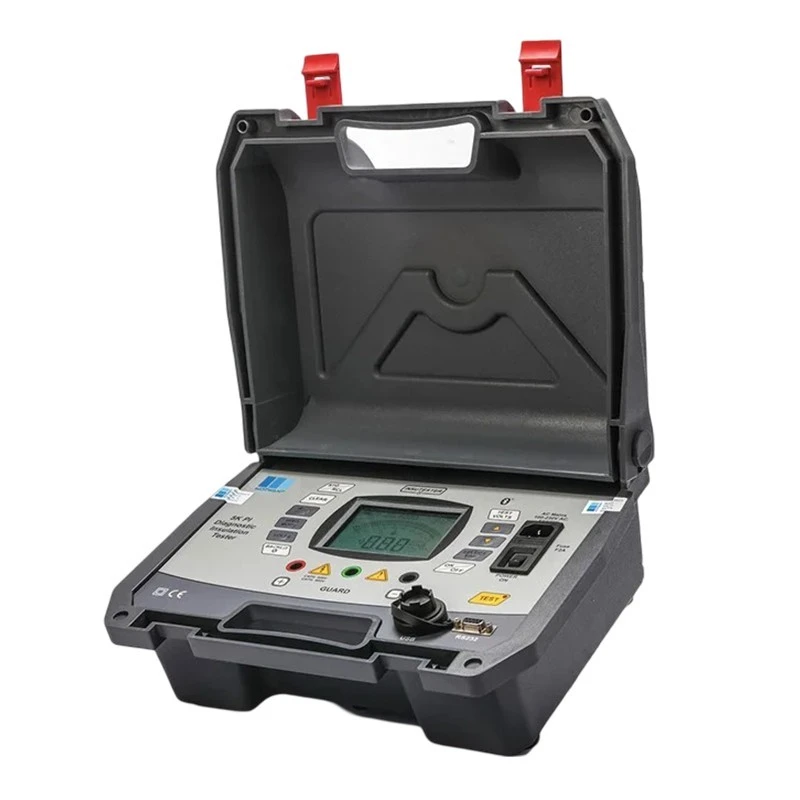

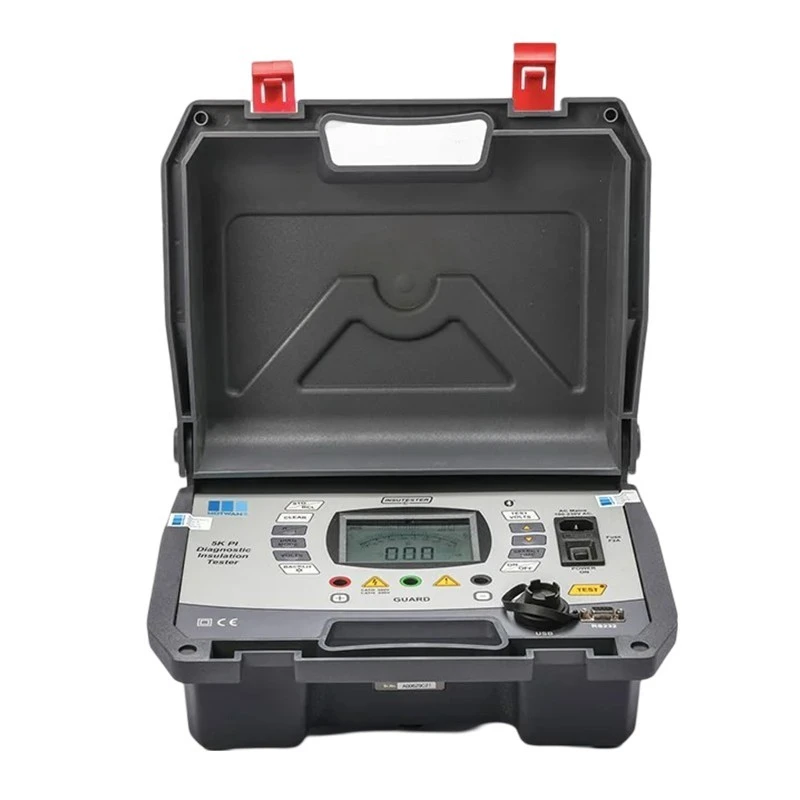

Motwane 5K-PI 5kV Insulation Diagnostic Tester
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 10nF to 50µF |
| Frequency | 50/60Hz |
| Relative Humidity | Less than 95% RH / non-condensing |
| Brand | Motwane |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 365mm(L) x 285mm(W) x 190mm(H) |
| Storage Temperature | -20°C to 70°C |
| Model | 5K-PI |
| Certifications | CE / CAT III 600V / CAT IV 600V / IEC 61010-31 (accessories) |
| Battery Backup | Approx. 5 Hours (5KV / 250MΩ load) |
| Weight | 4Kg (excluding accessories) |
| Charging Time | Approx. 3 Hours (95% charged) |
| Safety Standards | EN 61010-1 |
| Ingress Protection | IP 54 |
| Baud rate | 115200 / 1 Stop bit / no parity |
| Test Voltage (V) | 250V - 5KV (50V steps) |
| Data transfer | Bluetooth (ISM band 2.4 Ghz) |
| Voltage Measurement Range | Up to 600V DC / Up to 600V AC RMS |
| Voltage Measurement Accuracy | ±(5% of reading + 5 digits) |
| Capacitance Accuracy | ±(10% of reading + 5nF) |
| Test Voltage Accuracy | ±(5% of reading + 5 digits) |
| Test Regimes (Automatic) | IR / Leakage Current / PI / DAR / DD / SV / BDV |
| Short Circuit Test Current | ≤ 6mA + 0.5 mA |
| Programmable Timers | T1 / T2 / T3 (max. 99 min 59 sec) |
| Insulation Resistance Analog Display | 1KΩ to 5TΩ |
| Insulation Resistance Digital Range | 1KΩ to 10TΩ (3mA/5mA) / 1KΩ to 50TΩ (6mA) |
| Insulation Resistance Accuracy (25°C) | ±(5% of reading + 5 digits) up to 1TΩ / ±(10% of reading + 5 digits) 1TΩ to 50TΩ |
| Guard | 300kΩ ± 10% |
| Leakage Current Range | Up to 6mA |
| Leakage Current Accuracy | ±(5% of reading + 5 digits) |
| AC Mains Voltage (V) | 100 - 230V AC |
| Internal Rechargeable Battery | 14.8V / 26Ah |
| Interference Rejection | 1mA rms per 250V (max 4mA) |
| Serial Communication | RS232 / USB (Galvanic isolated) |
| EMC Standards | EN 61326-1 |
| Type Test | IS 11994 |
Key Features
- 5 KPI available in three variants : 3mA, 5mA and 6mA
- Self Replaceable Battery
- Compatibility under heavy induction environment.
- Programmable Test Voltage 250 – 5000V in steps of 50V
- Insulation Resistance upto 50TΩ
- Three Programmable Timers
- Modes for conducting IR, Leakage current, PI, DAR,
- DD, SV and BDV test
- Mains & Battery Operation
- CE, CAT-IV 600V, IP65, complies with latest IEC/IS
- Standards
- 1000 test results storage
- Optically Isolated RS-232 port & USB port
- AC / DC Voltage Measurement
- LCD Display with backlit
- Bluetooth enabled for Motware Mobile App
Product Description
5 kV Insulation diagnostic is designed to conduct various diagnostic tests on electrical apparatus like transformers, cables, bushings, insulators, switchgear, lighting arrestors, rotating machines, etc. It is designed and developed indigenously at our state-of-the-art R&D laboratory. The 5K-PI is a microprocessor based instrument that employs the latest technology and very high-speed data sampling to give a correct, repetitive, and durable performance, even under harsh conditions. It can be operated through mains and battery for smooth functioning. Weighing less than 5 kgs, it makes for a lightweight & compact insulation resistance tester for outdoor applications. The device is specially designed for easy operation, and to suit the operator’s test requirements. It is certified as per the relevant IS/IEC standards. The gadget has a large white backlight LCD indication and displays test information like the insulation resistance value, test voltage, leakage current, capacitance, battery status, and timer. It is equipped with three programmable timers, provided to conduct various tests like Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV) test, and Breakdown Voltage (BDV) test. The device has automatic capacitive loads discharged at the end of the test. 5K-PI has a Bluetooth module with Motware mobile app for remote access of the testing data & storage in the cloud for further analysis & record purposes.

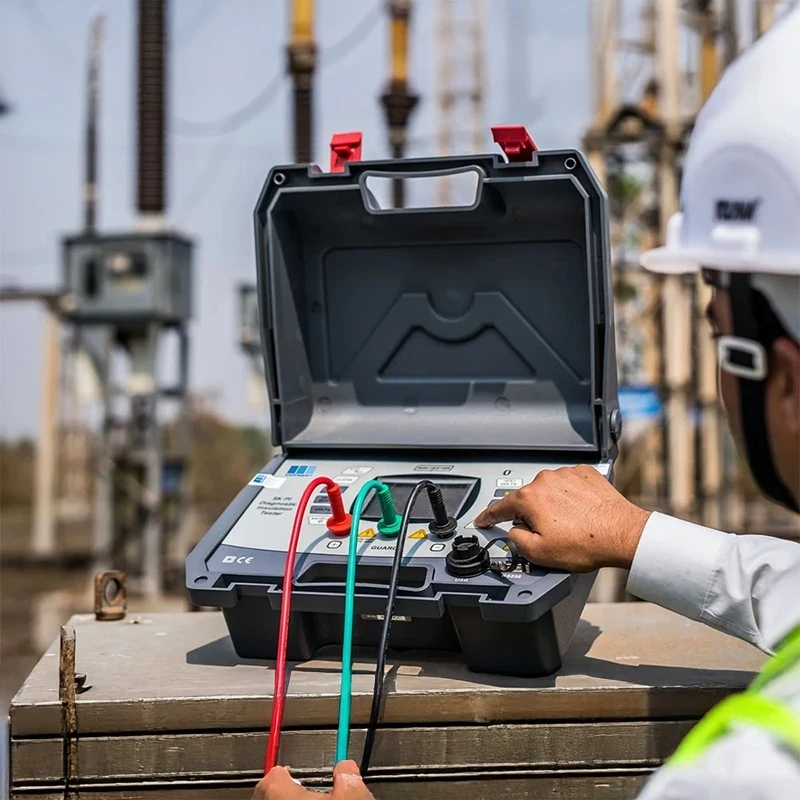

Application
The Insulation Resistance test is an essential test that helps to verify the condition of electrical insulation. The insulation resistance quality of an electrical system degrades with time and with environmental conditions such as temperature, humidity, moisture, and dust particles. The instrument is designed for routine insulation resistance testing and diagnostic testing like PI, DD, DAR & SV of high voltage electrical apparatus. It is a temperature independent test for appliances like transformers, generators, motors, cables, bushings, LA’s, switchgear, etc. The data trends can reveal vital information about the insulation quality and enable the user to make informed decisions.
Standard Accessories
- 3m Test lead set – for 3mA & 5mA : 01 Set
- 10m Test lead set – for 6mA : 01 Set
- Main Power Cord : 01 No
- Mains protected fuse : 02 Nos
- Instruction manual : 01 No
- Carrying Bag : 01 No
- Pen Drive : 01 No
- USB 2.0 A/B cable 1.5 mtr long : 01 No
- Test & Calibration Certificate : 01 No
- Communication cable RS232 male to female serial cable 9 pin : 01 No
Optional Accessories
- 15m Test Lead Set : 01 Set
Available on EnvMart, these Insulation Testers are designed for precise insulation resistance measurement, ensuring electrical safety and equipment reliability. Motwane Insulation Testers provide high accuracy and durability, making them essential for electrical maintenance, troubleshooting, and compliance testing
