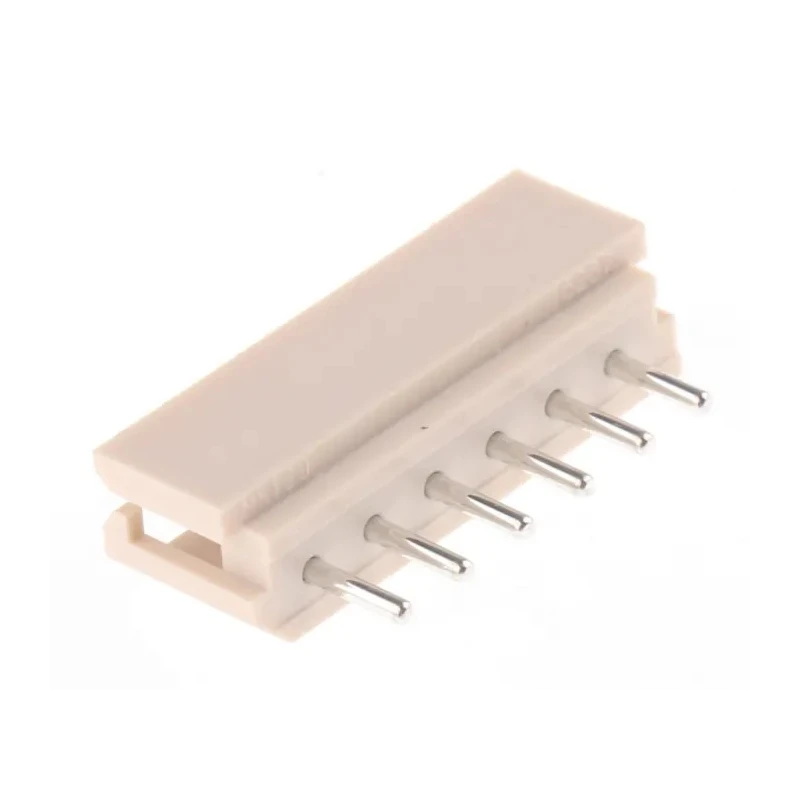

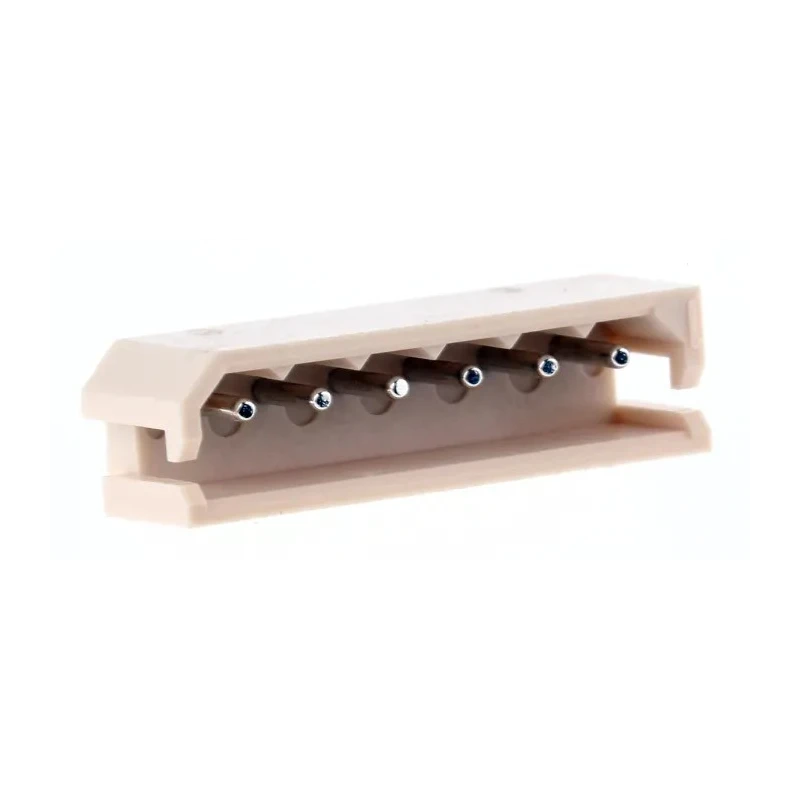

Molex SPOX Series Shrouded Straight Through Hole PCB Header, 6 Contacts, 2.5 mm Pitch, 1 Row, Brass Tin-Plated 22-03-5065

Free Delivery in India | Lowest Global Shipping Charges

Molex SPOX Series Shrouded Straight Through Hole PCB Header, 6 Contacts, 2.5 mm Pitch, 1 Row, Brass Tin-Plated 22-03-5065

Name: Molex SPOX Series Shrouded Straight Through Hole PCB Header, 6 Contacts, 2.5 mm Pitch, 1 Row, Brass Tin-Plated 22-03-5065
Brand: Molex
SKU: 212099
Price: 0.51 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Korea
Voltage	250V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Features a durable nylon housing for insulation and mechanical support.
6 brass contacts plated with tin ensure reliable conductivity and corrosion resistance.
Shrouded design prevents mismating and provides polarization features.
Through hole mount type facilitates soldering to PCBs for stable connections.
Rated for 3A current and 250V voltage with operating temperatures from -40°C to 105°C.
Contact tail pins extend 3.5 mm for secure PCB retention.
Suitable for automotive, industrial, telecommunications, medical, and consumer electronics applications.

Product Description

Molex 22-03-5065 SPOX Series shrouded straight through hole PCB header is engineered to offer secure and reliable wire-to-board connections with a 2.5 mm pitch and 1 row configuration. The connector features a robust nylon housing providing insulation and protection against environmental factors.

The 6 brass contacts are tin-plated to prevent corrosion and ensure consistent electrical performance under demanding conditions. The shrouded design integrates polarization and friction lock mechanisms that prevent mismating and maintain secure connections in industrial and electronic applications.

This PCB Header is a through hole mount type suitable for solder termination, ensuring strong mechanical and electrical bonds with the printed circuit board. Its 3.5 mm tail pin length facilitates easier insertion and retention on PCBs.

Rated at 3A current capacity and 250V voltage, it supports operating temperatures from -40°C up to 105°C, making it ideal for use in automotive electronics, industrial machinery, telecommunications, data communications, medical instruments, and consumer devices.

Manufactured in Korea, this connector series is recognized for its low profile and compact footprint, helping designers save PCB space while maintaining high reliability. The SPOX series connectors are widely respected in the electronics industry for their durability and performance.

Durable nylon housing for electrical insulation. Tinned brass contacts resist corrosion and provide good conductivity. Polarization features prevent mismating during installation. Friction lock mechanism holds the connector firmly in place.

Through hole mount with solder termination for strong PCB attachment. Low profile design ideal for compact electronic assemblies. Suited for harsh environments due to wide temperature range. Explore more quality PCB connectors and headers in the Electronics & Electricals category at EnvMart to enhance your projects with reliable connectivity solutions.
