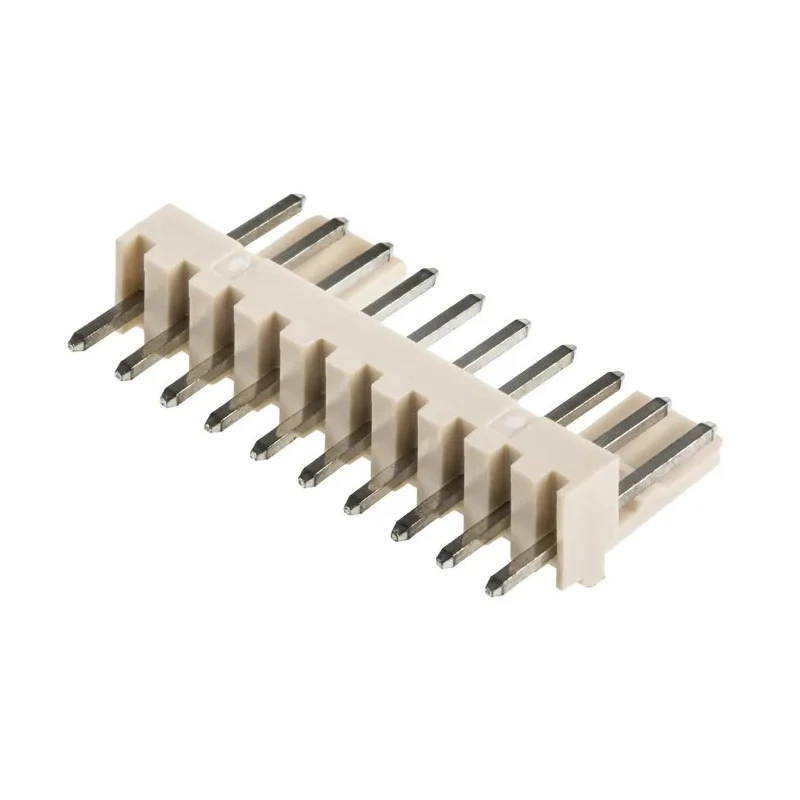

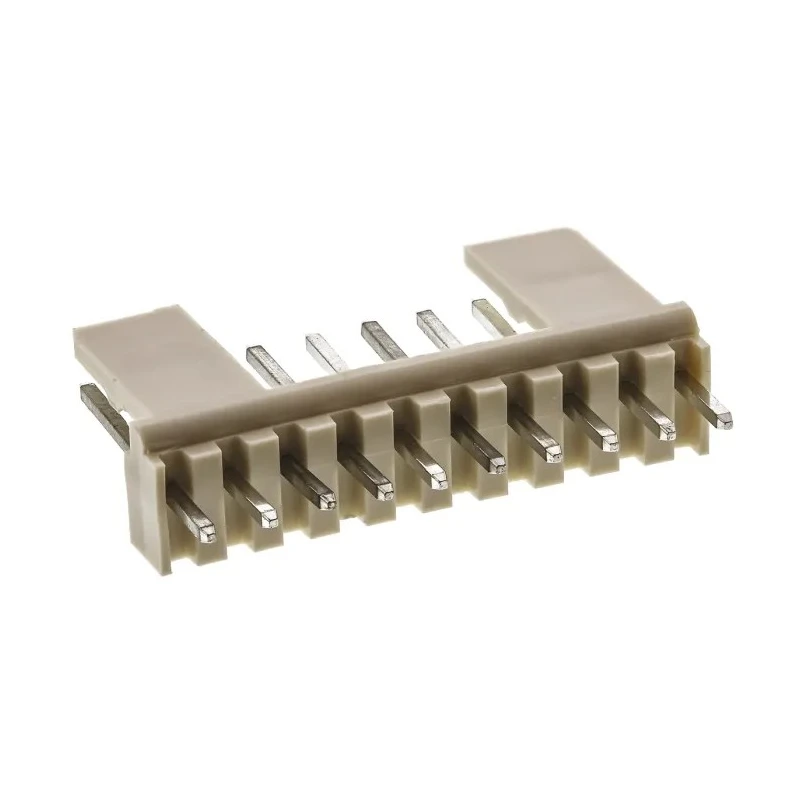

Molex Mini-Latch Series Straight Through Hole Pin Header 10 Contact 2.5 mm Pitch 1 Row Unshrouded 22-04-1101
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a friction locking ramp ensuring a secure mating connection.
- Designed with a straight orientation and through hole mount type.
- Constructed with brass contacts plated with tin and nylon housing material.
- Rated for 3A current and operating voltage of 250V.
- Operates reliably from -40°C up to 105°C maximum temperature.
- Compatible with Mini-Latch 51191 series and KK series 2.5 mm crimp housings.
- Unshrouded male contact type facilitating solder termination.
- Provides design flexibility with a single row of 10 contacts at 2.5 mm pitch.
Product Description
Molex 22-04-1101 Mini-Latch Series Straight Through Hole Pin Header is a high-quality PCB connector designed for wire-to-board applications requiring secure interconnections. This 10-contact header features a 2.5 mm pitch and a single row of unshrouded male pins, delivering reliable mechanical and electrical performance.
Constructed with brass contacts plated with tin and housed in robust nylon, this header supports currents up to 3A and voltages up to 250V. It is optimized for operation from -40°C to 105°C, ensuring durability across a wide temperature range.
The friction locking ramp locking mechanism provides secure mating with complementary Mini-Latch 51191 and KK series crimp housings, emphasizing connection stability in environments subject to vibration and mechanical stress. Its through-hole mount type facilitates strong soldered joints on printed circuit boards.
This Mini-Latch pin header is suitable for versatile electronic applications, including automotive electronics, printers, fax machines, PC monitors, and data communications equipment. The connector's design flexibility with vertical mounting and single-row configuration supports diverse design requirements.
Friction locking ramp for secure mating connection. Brass contacts with tin plating and nylon housing. Supports 3A current and 250V voltage. Operating temperature range from -40°C to 105°C. Through-hole mount type for reliable solder termination.
Compatible with Mini-Latch 51191 and KK series crimp housings. Straight orientation with 2.5 mm pitch and 10 contacts. Male contact gender and unshrouded pin header design. Ideal for automotive, communications, and office equipment.
Choose Molex Mini-Latch Series for reliable, secure PCB connections across industrial, commercial, and automotive electronics sectors. Explore more PCB connector options and accessories on EnvMart for your design and manufacturing needs.
Explore more products in our PCB Pin Header category.
