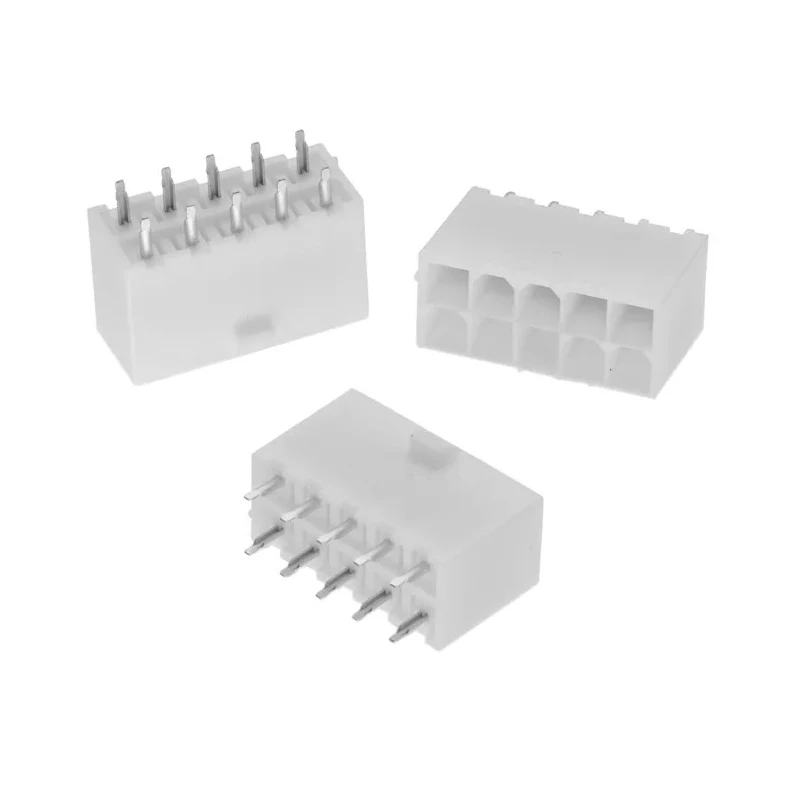

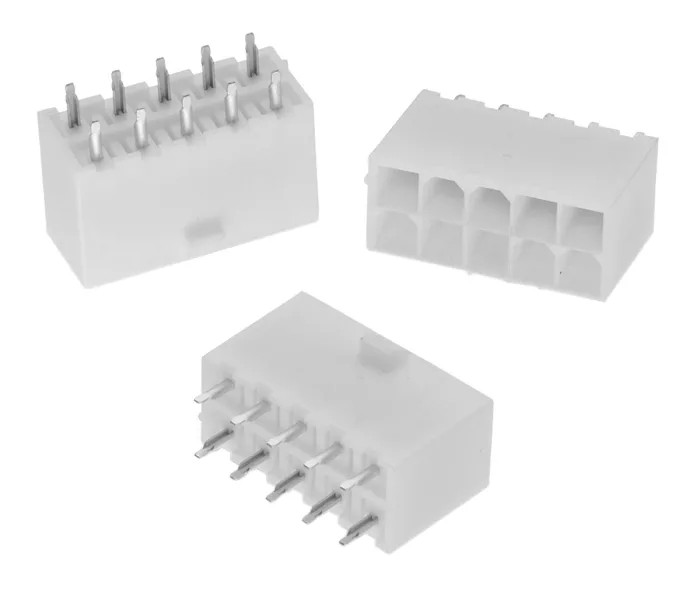

Wurth Elektronik WR-MPC4 Series Straight Through Hole PCB Header, 10 Contacts, 4.2 mm Pitch, 2 Row, Shrouded MPC4
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 600V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 69A |
| Model | MPC4 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-MPC4 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Supports a current rating of 69 amperes.
- The housing is made of durable polyamide material ensuring robust insulation.
- Utilizes a wire-to-board connector system with through hole mounting type.
- Features copper alloy contacts plated with tin over nickel for reliable conductivity and corrosion resistance.
- Operates reliably within a temperature range of -40°C to 105°C.
- Includes a 3.5 mm tail pin length for solder termination.
- Designed with a straight orientation and male contact gender.
- Rated for a voltage of 600 volts, supporting high voltage applications.
Product Description
Wurth Elektronik MPC4 Series Straight Through Hole PCB Header, model MPC4, offers a reliable and durable connector solution with 10 contacts arranged in two rows and a standard 4.2 mm pitch. This connector is designed with a polyamide housing material that meets UL94-V0 flammability standards, providing excellent insulating properties.
The cable-to-board interface system utilizes male copper alloy contacts that are plated with tin over nickel for optimal conductivity and resistance against corrosion. The through-hole mount type and solder termination ensure secure and stable electrical connections.
With a current rating of 69 amperes and a voltage rating of up to 600 volts, this component is suitable for demanding industrial and electronic applications. Its operating temperature range from -40°C to 105°C allows it to function reliably in harsh environments.
The product is shrouded for added protection to prevent accidental contact with pins and to facilitate easy, secure mating. The 3.5 mm tail pin length supports versatile PCB designs and efficient soldering processes.
Supports a current rating of 69 amperes. Durable polyamide housing for enhanced insulation. Wire-to-board connector system with through hole mount. Copper alloy contacts plated with tin over nickel. Operating temperature range from -40°C to 105°C.
Straight orientation and male contact gender. 600 volts voltage rating for high voltage use. Shrouded design for contact protection. 3.5 mm tail pin length for solder termination. Manufactured in Taiwan, Province Of China.
This Wurth Elektronik MPC4 Series PCB Header is ideal for electronic manufacturing, industrial automation, and power distribution systems requiring robust, high-current connectors. Its design ensures longevity and reliability in both commercial and industrial applications.
Explore the wider range of electronic components and connectors at EnvMart for compatible solutions including female receptacles and complementary wiring accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 69 amperes, making it suitable for high-current applications.
The voltage rating is up to 600 volts, allowing it to be used in high voltage applications.
The contacts are arranged with a standard pitch of 4.2 mm.
The housing is made of durable polyamide material, providing robust insulation.
This model features 10 contacts arranged in two rows.
It utilizes a through hole mounting type for secure installation on PCBs.
It operates reliably within a temperature range of -40°C to 105°C.
The termination type is solder, with a tail pin length of 3.5 mm for efficient soldering processes.
This connector has a male contact gender, designed for wire-to-board connections.
The contacts are made of copper alloy and are plated with tin over nickel for optimal conductivity and corrosion resistance.
This model is shrouded, providing added protection against accidental contact with the pins.
This PCB header is manufactured in Taiwan, Province Of China.
