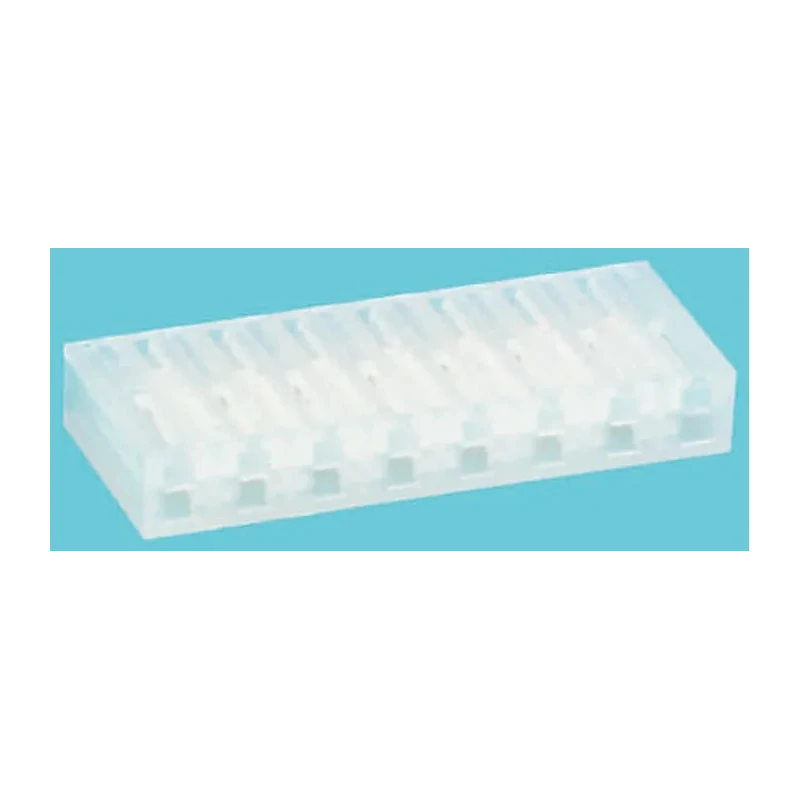

Molex KK Female Connector Housing 5.08 mm Pitch 7 Way 1 Row Straight 10-01-1074

Molex 10-01-1074 KK Female Connector Housing is a 7 way, 1 row straight cable mount connector housing designed for reliable electronic interconnections. The connector features a 5.08 mm pitch and is constructed from durable Polybutylene Terephthalate (PBT) material, providing excellent mechanical strength and electrical insulation.

This housing is part of the widely used Molex KK series, compatible with KK crimp terminals that support wire gauges ranging from 18 to 26 AWG. Its straight orientation makes it ideal for direct cable-to-board connections, ensuring efficient space utilization and ease of assembly.

The connector housing's precise 5.08 mm pitch provides improved creepage and clearance distances suitable for industrial and commercial electronics applications where safety and reliability are critical. The 7 contacts in a single row configuration provide multiple connection points in a compact form factor with dimensions of 35.56 mm length and 6 mm width.

Applications for this product span industrial control systems, instrumentation, consumer electronics, and general electronic assembly where stable, secure cable connections to PCB boards are needed. The KK series system supports seamless mating with KK 3003 series PCB headers, enabling modular and scalable wiring harness designs.

Manufactured to exacting standards, this connector housing ensures consistent performance and long operational life in demanding environments. Its UL94V-2 nylon material also supports flame resistance for enhanced safety compliance.

This connector housing is made from Polybutylene Terephthalate material ensuring durability and insulation. It features a straight orientation suitable for cable connections. The housing belongs to the Molex KK Series, compatible with KK crimp terminals supporting 18-26 AWG wires.

The pitch of 5.08 mm ensures adequate creepage and clearance for reliable wire to board connections. This product supports economical and simple wire to board and board to board interconnection applications. The connector housing dimensions include a length of 35.56 mm and width of 6 mm.

It is designed for female connectors with 7 contacts arranged in 1 row configuration. Molex KK series 5.08 mm pitch housings mate with 3003 series PCB headers for seamless integration.
