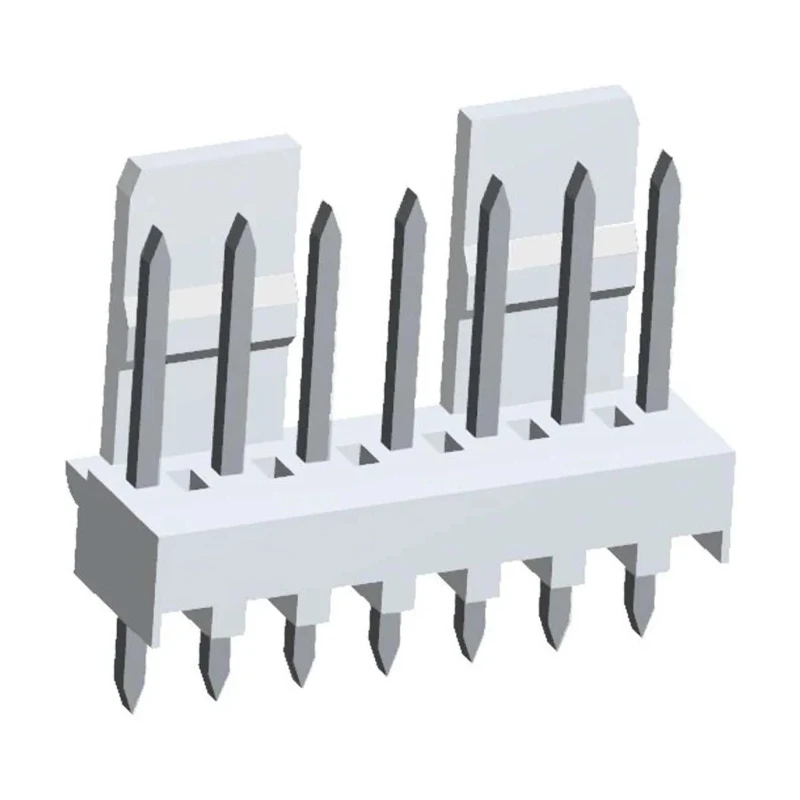

Molex Mini-Latch Series Straight Through Hole Pin Header 7 Contacts 2.5 mm Pitch 1 Row Unshrouded 22-04-1071
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Latch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with brass contacts and tin plating for reliable electrical connections.
- Designed with a friction locking ramp mechanism to ensure secure mating connections.
- Housing made of durable nylon material suitable for temperatures from -40°C to 105°C.
- Supports a maximum current rating of 3A and voltage up to 250V.
- Mount type is through hole with a straight orientation.
- Termination type is solder, and the contact gender is male.
- Compatible with Mini-Latch 51191 series and KK series 5051 2.50 mm crimp housings for flexible designs.
- Applications include vehicles, printers, fax machines, PC monitors, and data communication centers.
Product Description
Molex 22-04-1071 Mini-Latch Series Straight Through Hole Pin Header is a high-quality PCB pin header featuring 7 contacts arranged in a single row with a 2.5 mm pitch. It is unshrouded and designed for through-hole mounting to ensure a robust wire-to-board connection.
The contacts are crafted from brass with tin plating, providing excellent conductivity and corrosion resistance. The nylon housing supports operating temperatures ranging from -40°C to 105°C, ensuring durability under various environmental conditions.
This pin header uses a friction locking ramp mechanism that secures the connection firmly, preventing accidental disconnection. Available in straight orientation, it offers design flexibility for numerous electronic assembly scenarios.
With a maximum current capacity of 3A and voltage rating of 250V, the connector is suitable for medium power applications. Termination is solder type, and the male contacts enable reliable connectivity.
The Mini-Latch system is compatible with Mini-Latch 51191 series and KK series 5051 crimp housings, facilitating easy and flexible assembly in various industrial and commercial applications.
Common industrial use cases include automotive electronics, printing devices, communication equipment, and consumer electronics, providing secure, reliable interconnections in demanding operational environments.
Constructed with brass contacts and tin plating for reliable electrical connections. Friction locking ramp ensures secure mating connection. Durable nylon housing suitable for a wide temperature range. Supports 3A current and 250V voltage rating.
Through hole mount with straight orientation and solder termination. Compatible with Mini-Latch crimp housings for design flexibility. Suitable for automotive, printing, and communication applications. Explore more PCB Pin Headers and Molex products on EnvMart for advanced electronic connector solutions.
