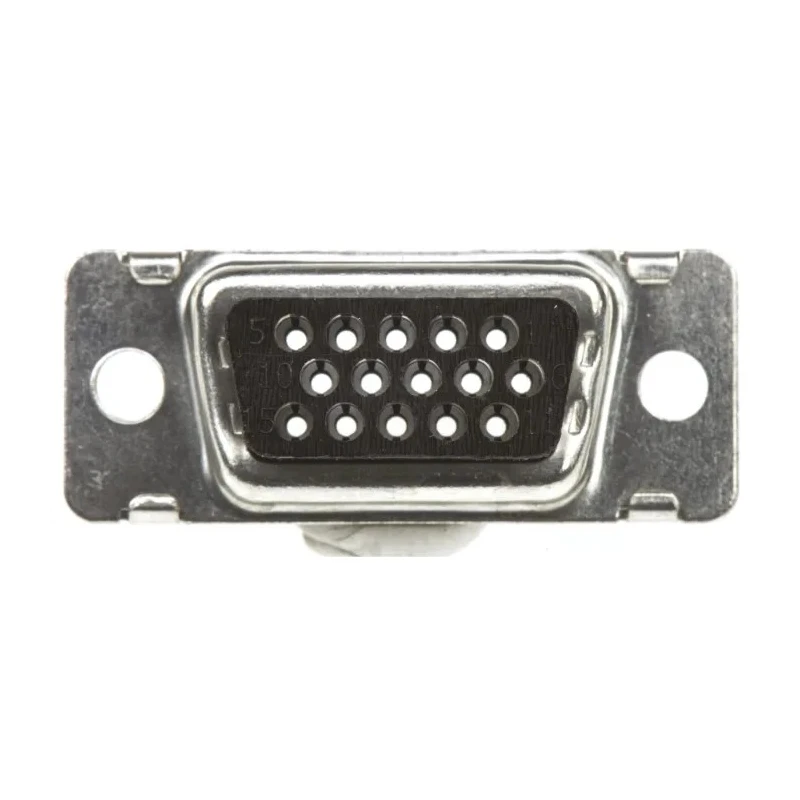

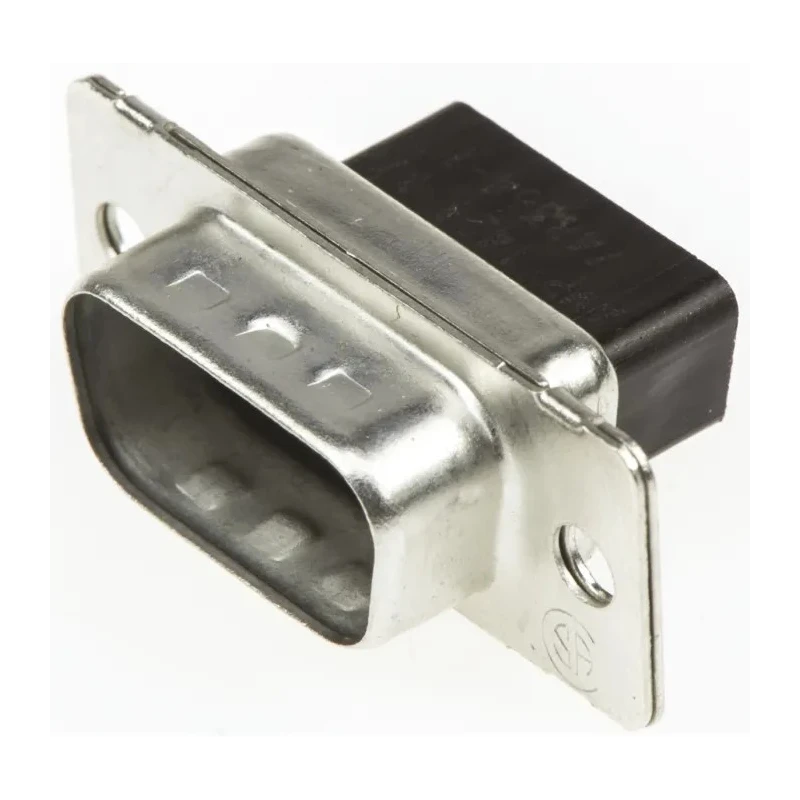

TE Connectivity AMPLIMITE HDP-22 15 Way Straight Cable D-Sub Connector Male 250V 1.9A 748364-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.9A |
| Model | 748364-1 |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-22 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Flash |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- This connector features a 15-contact configuration with straight orientation for cable mounting.
- Operating voltage rating is 250V with a maximum current of 1.9A per contact.
- Constructed with a steel housing and phosphor bronze contacts plated with gold flash for durability.
- Rated for operating temperatures from -55°C to 105°C, suitable for industrial and military use.
- The crimp termination and snap-in contact design provide secure electrical connections.
- High-density design offers approximately 65% more contacts compared to standard HD-20 connectors.
- Complies with RoHS standards ensuring environmental safety.
- Compatible with any size 22 D-Sub connector meeting MIL-C-C24303 dimensional compliance.
Product Description
TE Connectivity 748364-1 AMPLIMITE HDP-22 15 Way Straight Cable D-Sub Connector Male is a high-density, crimp snap-in contact connector designed for robust cable assemblies requiring compact mounting with increased contact capacity. Operating at 250V and 1.9A current per pin, it is engineered with a steel shell featuring tin plating and a 94V0 rated black thermoplastic insert for enhanced flame resistance.
Its phosphor bronze contacts are plated with gold flash to ensure excellent conductivity and corrosion resistance. The connector supports operating temperatures ranging from -55°C to 105°C making it ideal for harsh industrial and military environments. The crimp termination enhances reliable electrical connections, and its straight orientation is optimized for cable mounting applications.
This AMPLIMITE HDP-22 series connector delivers approximately 65% increased density compared to HD-20 types, maximizing space efficiency. It mates compatibly with any size 22 D-Sub connectors compliant with MIL-C-C24303 standards. Compliance with RoHS directives confirms the connector's adherence to environmental standards.
This connector features a 15-contact configuration with straight orientation for cable mounting. Operating voltage rating is 250V with a maximum current of 1.9A per contact. Constructed with a steel housing and phosphor bronze contacts plated with gold flash for durability.
Rated for operating temperatures from -55°C to 105°C, suitable for industrial and military use. The crimp termination and snap-in contact design provide secure electrical connections. High-density design offers approximately 65% more contacts compared to standard HD-20 connectors.
Complies with RoHS standards ensuring environmental safety. Compatible with any size 22 D-Sub Connector meeting MIL-C-C24303 dimensional compliance.
This connector is suitable for applications in industrial machinery, military equipment, communications hardware, and computing interfaces that require reliable, high-density electrical connections within compact spaces. Its robust construction ensures dependable performance across demanding environments.
Explore EnvMart’s extensive range of electronic components and connectors for versatile industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an operating voltage rating of 250V and a maximum current of 1.9A per contact.
It is rated for operating temperatures from -55°C to 105°C, making it suitable for harsh environments.
This connector features a 15-contact configuration.
It utilizes a crimp termination type for secure electrical connections.
The housing is made of steel, and the contacts are made of phosphor bronze plated with gold flash for conductivity and corrosion resistance.
Yes, it complies with RoHS standards, ensuring environmental safety.
The connector has a straight orientation, optimized for cable mounting applications.
The high-density design offers approximately 65% more contacts compared to standard HD-20 connectors, maximizing space efficiency.
It is suitable for applications in industrial machinery, military equipment, communications hardware, and computing interfaces.
It is compatible with any size 22 D-Sub connector meeting MIL-C-C24303 dimensional compliance.
The connector is manufactured in India.
This model is a male D-Sub connector.
