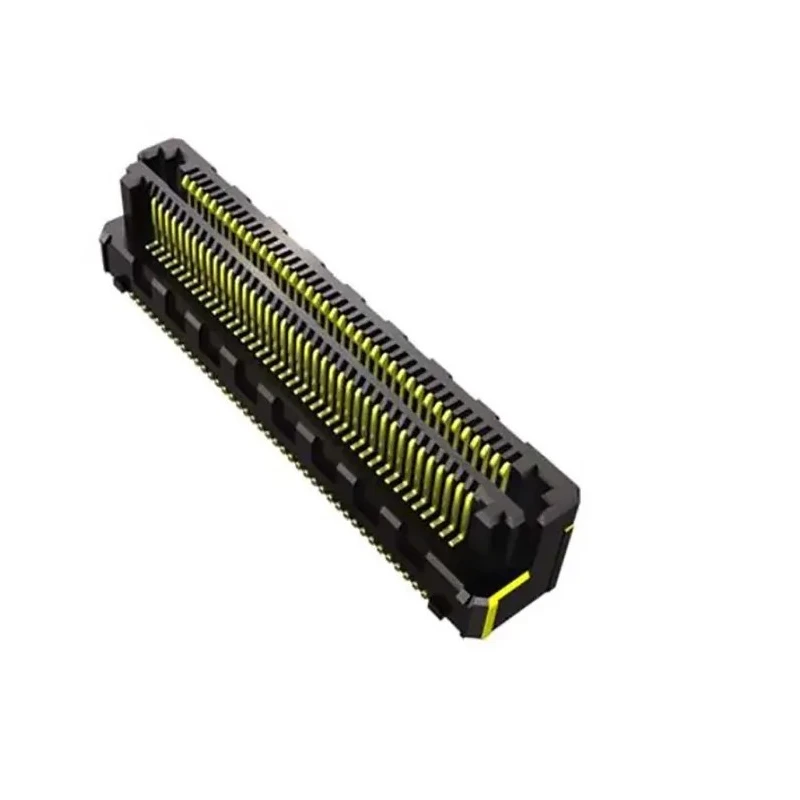

Samtec High-Density Straight Surface PCB Header 40 Contacts 0.5mm Pitch 1 Row Shrouded LSHM-120-06.0-F-DV-A-S-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160, 226V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2A |
| Model | LSHM-120-06.0-F-DV-A-S-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | LSHM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-density board-to-board connector designed for rugged applications.
- Utilizes 0.5 mm pitch with a single row of 40 male contacts.
- Contact material is phosphor bronze with gold plating for superior conductivity and durability.
- Housing made from Liquid Crystal Polymer providing high thermal stability.
- Supports operating temperatures from -55°C to 125°C.
- Rated for 2A current and voltage up to 226V AC.
- Surface mount type with a shrouded straight orientation.
- Termination type is solder for reliable board attachment.
Product Description
Samtec LSHM-120-06.0-F-DV-A-S-K-TR is a high-density straight surface PCB header with 40 male contacts arranged in a single row and 0.5 mm pitch. Manufactured using Liquid Crystal Polymer housing and phosphor bronze gold-plated contacts, it is built for reliable board-to-board connections in demanding electronic assemblies.
The connector supports a current rating of 2A and voltage ratings of 160V and 226V AC, suitable for a wide range of industrial and electronic equipment applications. Operating temperature range spans from -55°C to 125°C, ensuring performance stability under harsh environmental conditions.
This connector features a shrouded design for added protection and enhanced mating reliability, and a solder termination type for precise mounting on printed circuit boards. The Razor Beam fine pitch contact system it utilizes ensures high data speed capabilities, supporting up to 23 Gbps per contact when shielded.
Applications include industrial electronics, communication equipment, computer motherboards, and high-speed data transmission systems. Its board-to-board connector system and surface mount technology make it ideal for compact and dense PCB layouts.
High-density board-to-board connector designed for rugged applications. Utilizes 0.5 mm pitch with a single row of 40 male contacts. Contact material is phosphor bronze with gold plating for superior conductivity and durability.
Housing made from Liquid Crystal Polymer providing high thermal stability. Supports operating temperatures from -55°C to 125°C. Rated for 2A current and voltage up to 226V AC. Surface mount type with a shrouded straight orientation.
Termination type is solder for reliable board attachment. Compatible with the Razor Beam fine pitch contact system for high speed data transmission. Designed for industrial and electronic component assembly applications.
Explore more high-quality PCB connectors and headers in the Electronics & Electricals category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 0.5 mm pitch with 40 male contacts arranged in a single row.
The housing is made from Liquid Crystal Polymer, while the contacts are made of phosphor bronze with gold plating.
It is rated for a current of 2A and can handle voltage levels of 160V and 226V AC.
The connector supports an operating temperature range from -55°C to 125°C.
This unit utilizes solder termination for reliable mounting on printed circuit boards.
Yes, it is a surface mount type connector with a shrouded straight orientation.
It is suitable for industrial electronics, communication equipment, computer motherboards, and high-speed data transmission systems.
This model employs a board-to-board connector system, which is ideal for compact PCB layouts.
The Razor Beam fine pitch contact system allows for high data speed capabilities, supporting up to 23 Gbps per contact when shielded.
This PCB header has a single row of contacts.
The contacts in this model are male.
The country of origin for this connector is India.
