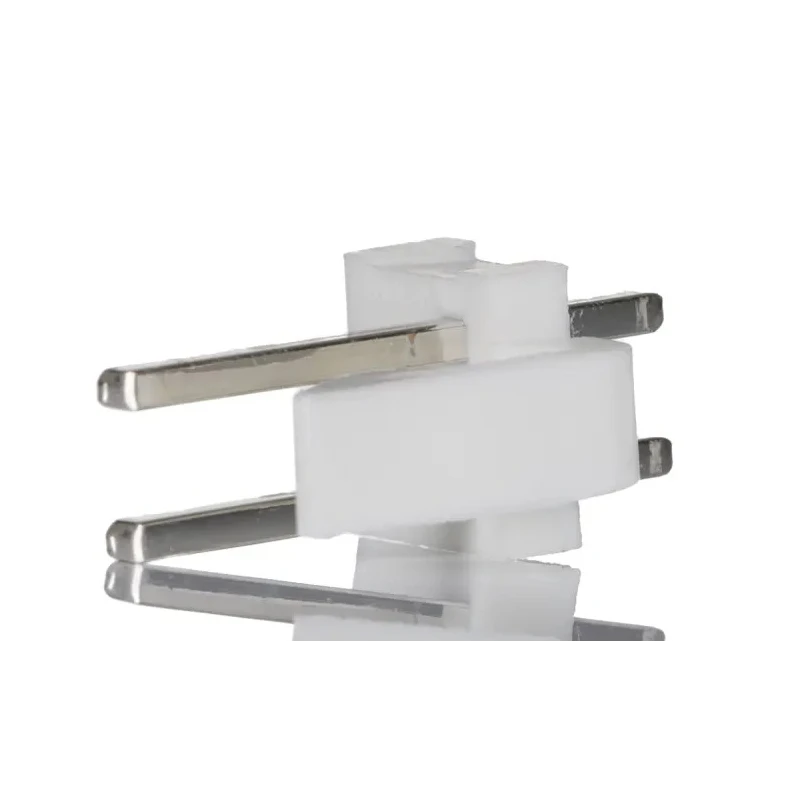

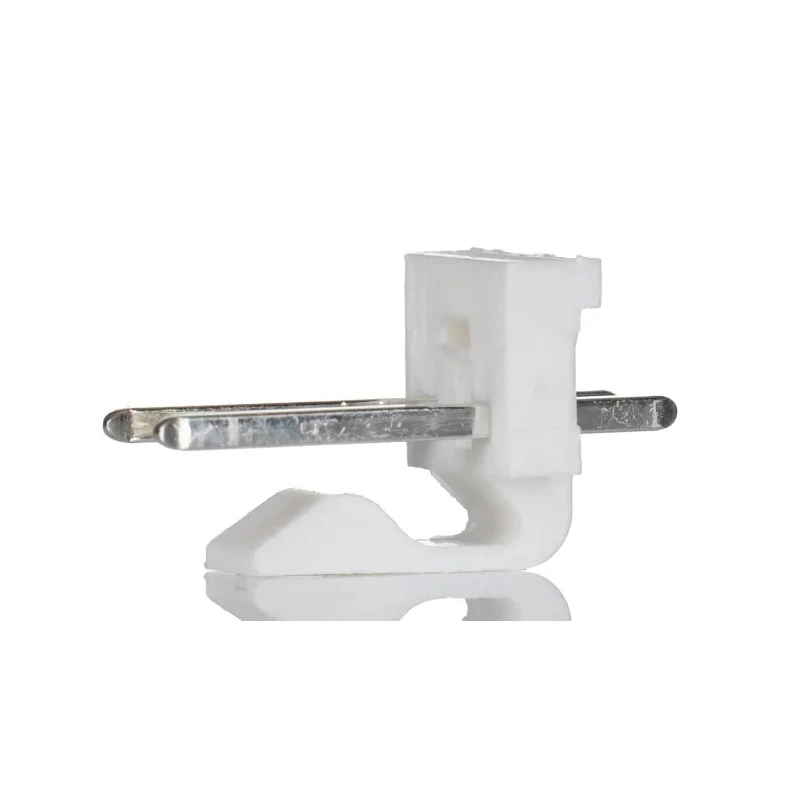

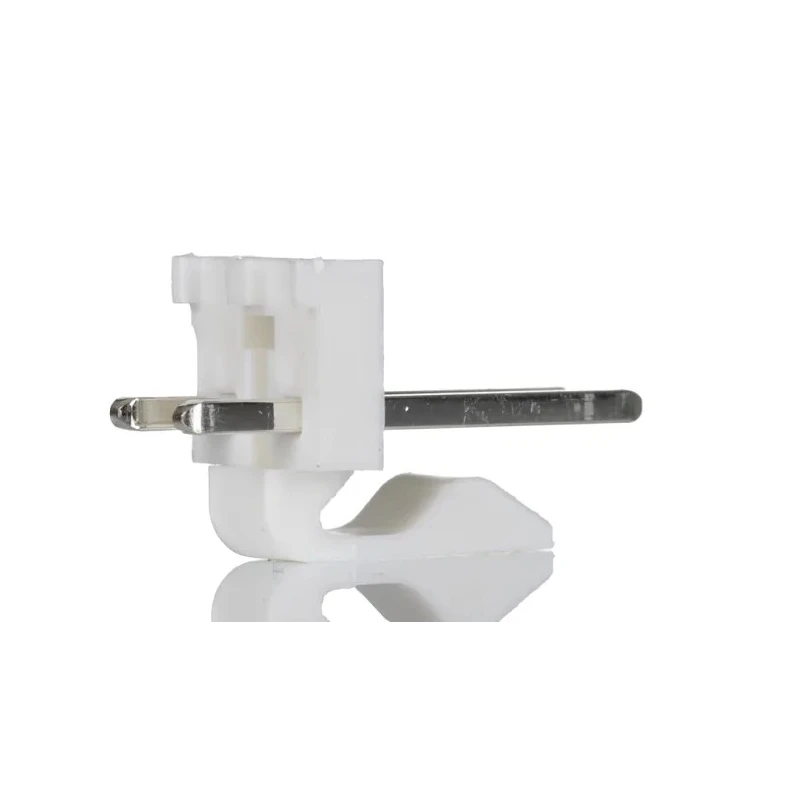

Molex 41791 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-60-4020

Free Delivery in India | Lowest Global Shipping Charges

Molex 41791 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-60-4020

Name: Molex 41791 Series Straight Through Hole Pin Header, 2 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-60-4020
Brand: Molex
SKU: 209275
Price: 0.36 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Straight
Current	7A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	41791
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	3.96mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	3.56mm

Key Features

This through-hole pin header supports a 7A current per contact and a maximum voltage of 600V.
Constructed with brass contacts plated in tin and a polyester housing for durability.
Designed for straight orientation with a tail pin length of 3.56 mm for reliable solder termination.
Operating temperature range is wide, from -40°C to +80°C, suitable for various environments.
Unshrouded design allows easy mating with compatible housings and connectors.
Perfect for automation, control networks, healthcare, lighting, and consumer electronic applications.
Housing material is self-extinguishing ensuring fire safety compliance.
Comes in packs of 10 pieces, each weighing approximately 0.75 grams to minimize PCB strain.

Product Description

Molex 26-60-4020 41791 Series Straight Through Hole Pin Header features 2 male contacts arranged in a single row with a 3.96 mm pitch. Designed for through-hole mounting, this pin header offers reliable electrical connections with up to 7A current per contact and handles voltages up to 600V. The contacts are made from brass and plated with tin for corrosion resistance, while the housing is polyester, providing robust mechanical support and fire resistance.

This unshrouded, straight orientation pin header is suitable for solder termination with a 3.56 mm tail pin length, allowing secure solder joints on printed circuit boards. It is engineered to operate reliably within a temperature range spanning from -40°C to +80°C, making it versatile for use in harsh or variable environments.

Common applications include automation control networks, healthcare devices, lighting systems, and consumer electronics, where stable and durable PCB connections are critical. Its unshrouded design enables compatibility with Molex 2139, 3069, 6442, and 41695 Series housings as well as 2145 and 41815 Series PC board connectors.

This pack includes 10 pieces of the Molex 26-60-4020 pin header. Lightweight design minimizes mechanical stress on PCBs, weighing approximately 0.75 grams per piece. Polyester housing ensures self-extinguishing properties enhance fire safety.

Brass contacts with tin plating provide durability and effective conductivity. Suitable for AC and DC voltage applications, offering broad usage flexibility.

This pin header is an essential electronic component in varied industrial, laboratory, manufacturing, and commercial electronic assembly operations. For comprehensive solutions, explore more in the PCB Headers category on EnvMart.
