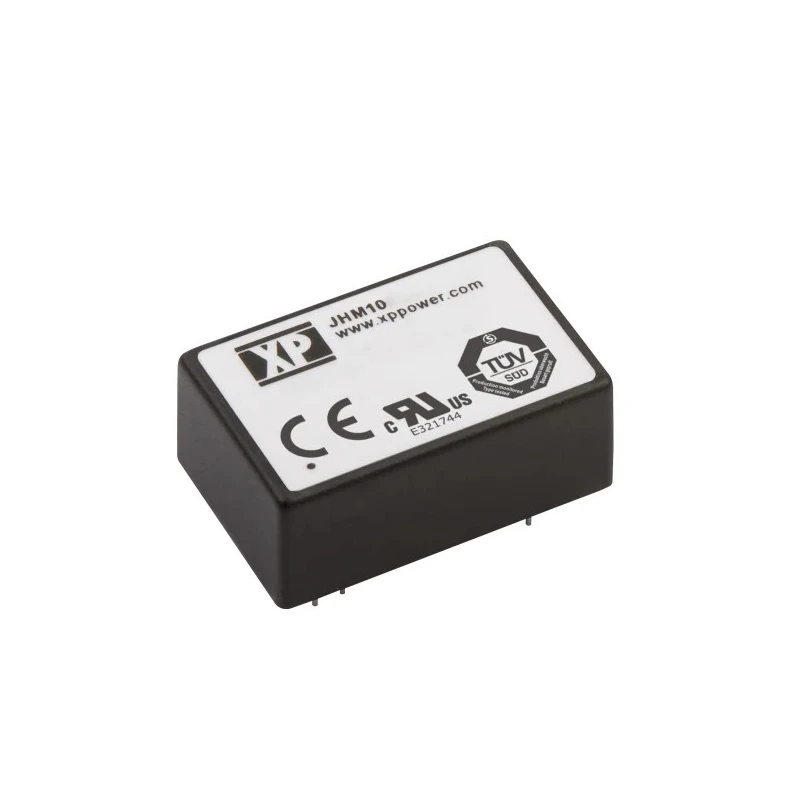

XP Power JHM 10 W Isolated DC/DC Converter, 12 V Output, -12 V Output, 420 mA, 18 V DC Input, Through Hole DIP-24 JHM1012D12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JHM DC/DC Converter, 12V, -12 V/ 420 mA |
| Brand | XP Power |
| Efficiency | 88% |
| Length | 31.75mm |
| Model | JHM1012D12 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JHM |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 420mA |
| Isolation Voltage | 4kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides 420 mA output current ensuring stable power supply.
- Operates with input voltage range from 9 V to 18 V DC.
- Features 4000 VAC reinforced insulation for high voltage isolation.
- Operates efficiently up to 88% with a wide temperature range from -40 °C to 80 °C.
- Designed with international medical safety approvals and low 2 μA patient leakage current.
- Compact size of 31.75 mm length, 20.32 mm width, and 10.4 mm depth.
- Ideal for board mount applications in industrial, medical, and electronic equipment.
Product Description
XP Power JHM1012D12 is a 10 W isolated DC/DC converter designed to provide dual outputs of 12 V and -12 V at 420 mA output current. It operates over an input voltage range from 9 V to 18 V DC, accommodating common power supply conditions.
The converter features a through-hole DIP-24 package which facilitates easy mounting on printed circuit boards, suited to industrial and medical equipment applications.
With reinforced insulation rated at 4000 VAC and a low patient leakage current of 2 μA, it meets IEC60601-1, 3rd edition safety standards for medical devices and other critical applications.
This device offers high efficiency of 88%, contributing to lower heat dissipation and improved energy use. It operates reliably in a broad temperature range from -40 °C to +80 °C, ensuring robust performance in various environments.
Mechanical dimensions include 31.75 mm length, 20.32 mm width, and 10.4 mm depth, making it compact for integration into space-constrained designs. The JHM1012D12 has a mean time between failures (MTBF) of 1,000,000 hours, symbolizing high reliability over extended usage.
Provides 420 mA output current ensuring stable power supply. Operates with input voltage range from 9 V to 18 V DC. Features 4000 VAC reinforced insulation for high voltage isolation. Includes 2 outputs with a 2:1 input voltage ratio and MTBF of 1,000,000 hours.
Operates efficiently up to 88% with a wide temperature range from -40 °C to 80 °C. Designed with international medical safety approvals and low 2 μA patient leakage current. Compact size of 31.75 mm length, 20.32 mm width, and 10.4 mm depth.
Ideal for board mount applications in industrial, medical, and electronic equipment. This converter supports critical industrial and medical devices requiring reliable isolated power conversion under challenging electrical and environmental conditions.
Explore EnvMart's comprehensive Electronics & Electricals category for more advanced DC/DC Converters and power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JHM1012D12 provides an output current of 420 mA.
It operates with an input voltage range from 9 V to 18 V DC.
The dimensions are 31.75 mm in length, 20.32 mm in width, and 10.4 mm in depth.
The converter operates efficiently with an efficiency rating of 88%.
It features a through-hole DIP-24 package for mounting on printed circuit boards.
The JHM1012D12 has an isolation voltage of 4000 VAC.
The maximum operating temperature is 80 °C.
This model provides two outputs: 12 V and -12 V.
It is designed with international medical safety approvals, meeting IEC60601-1, 3rd edition standards.
The MTBF for the JHM1012D12 is 1,000,000 hours.
The minimum operating temperature is -40 °C.
It is ideal for board mount applications in industrial, medical, and electronic equipment.
