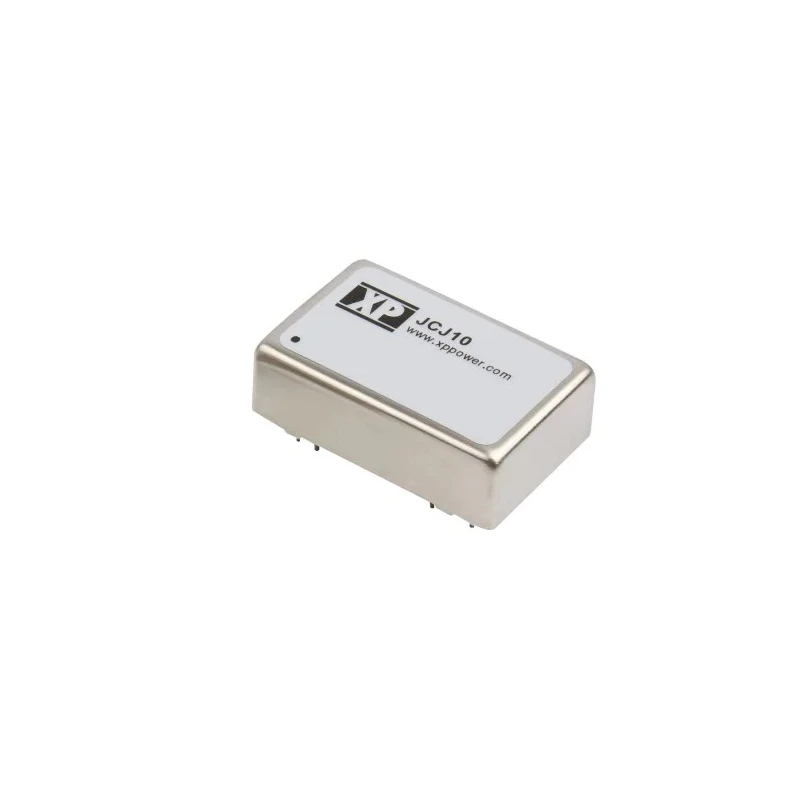

XP Power JCJ1024S12 DC-DC Converter 12VDC 830mA 10W 18 - 36V DC Input Through Hole DIP-24
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCJ DC/DC Converter, 12V dc/ 830 mA, 36V |
| Brand | XP Power |
| Efficiency | 88% |
| Length | 31.75mm |
| Model | JCJ1024S12 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCJ |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 900000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 830mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides a stable 12V DC output with a maximum current of 830mA.
- Supports input voltage range from 18V to 36V DC, suitable for diverse power environments.
- Offers 10W output power in a miniature DIP-24 package, ideal for board mounting.
- Ensures robust 1500V DC isolation and continuous short-circuit protection.
- Operates reliably across a wide temperature range from -40°C to 100°C.
- Delivers high efficiency up to 88%, reducing energy loss and heat generation.
- Board mount design with 24 pins, facilitating easy installation in electronic systems.
Product Description
The XP Power JCJ1024S12 is an industrial-grade isolated DC-DC converter engineered to provide a regulated 12V DC output at up to 830mA. Housed in a compact DIP-24 package, this converter is designed for through-hole PCB mounting, making it ideal for integration into a wide range of electronic power systems where space, efficiency, and reliability are paramount.
Capable of accepting input voltages from 18V to 36V DC, the JCJ1024S12 is suitable for use in systems with fluctuating or wide-range DC input sources. Its 2:1 input voltage ratio makes it highly adaptable for industrial and automation environments, distributed power architectures, and transport applications.
Delivering up to 10W continuous output power, the unit maintains tight regulation while providing robust protection features including 1500V DC isolation between input and output. This isolation ensures increased safety for downstream devices and circuits, mitigating risks associated with ground loops or electrical interference.
With high efficiency up to 88%, the converter minimizes energy loss and helps manage thermal performance, benefitting designs that require compact layouts or operate in environments with limited cooling. It is capable of continuous short circuit protection without minimum load requirements, enhancing operational robustness and system reliability.
The DIP-24 form factor with 24 pins allows for seamless integration into standard board layouts, while the device’s wide operational temperature range from -40°C to 100°C enables reliable use in harsh industrial, telecom, manufacturing, and embedded applications. The output voltage adjustment and 900,000-hour MTBF rating further highlight its dependability for mission-critical electronic systems.
Ideal applications for the XP Power JCJ1024S12 DC-DC Converter include industrial controls, process instrumentation, energy management systems, railway and transportation electronics, automated manufacturing equipment, power distribution boards, and laboratory test setups.
This product is part of the XP Power JCJ series, known for compact isolation solutions in demanding system environments. Explore more DC-DC converters from XP Power and related industrial power modules in our DC-DC Converter category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JCJ1024S12 operates with an input voltage range from 18V to 36V DC.
This model provides a maximum output power of 10W.
The output voltage is 12V DC with a maximum current rating of 830mA.
The efficiency of this unit is rated at up to 88%.
The dimensions of the DIP-24 package are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It offers an isolation voltage of 1500V DC.
The operating temperature range is from -40°C to 100°C.
This converter features 24 pins for board mounting.
It is designed for through-hole mounting on PCBs.
Yes, it includes continuous short-circuit protection without minimum load requirements.
The MTBF for the JCJ1024S12 is rated at 900,000 hours.
This model is suitable for applications such as industrial controls, process instrumentation, and automated manufacturing equipment.
