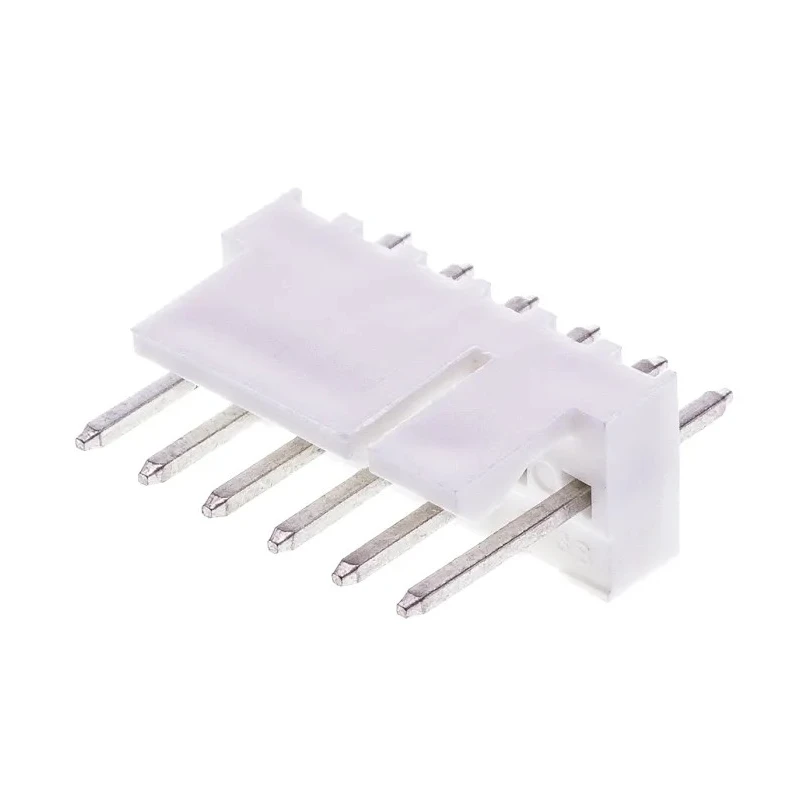

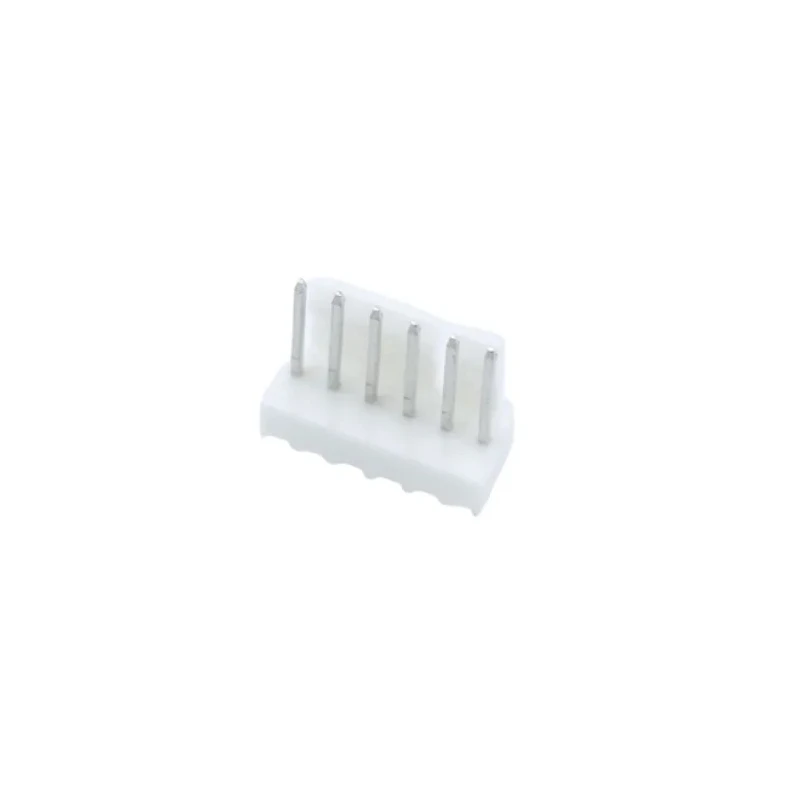

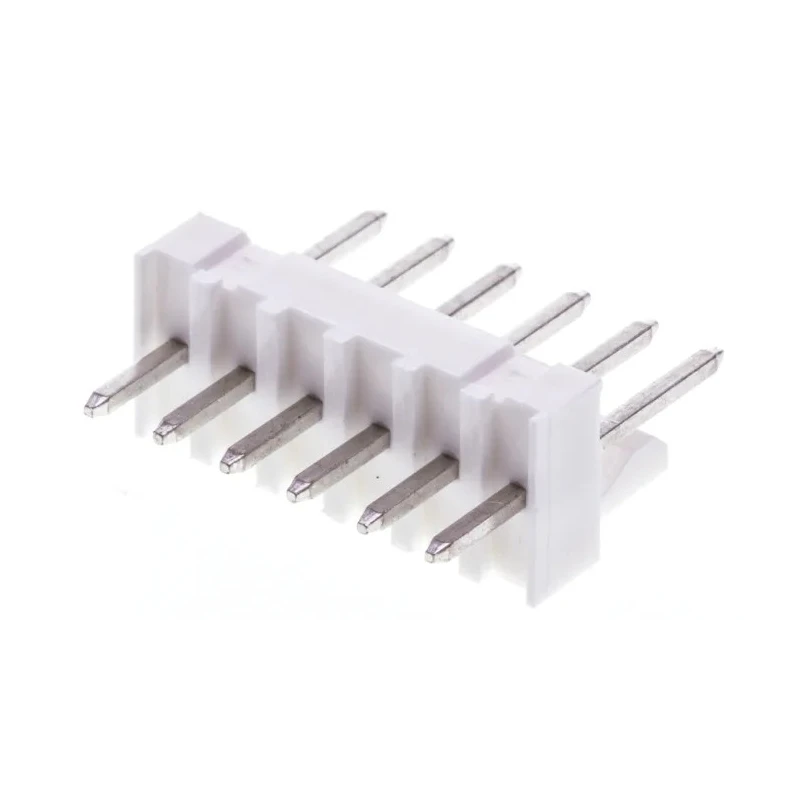

Molex KK 254 Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-23-2061
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- Constructed with tin-plated brass contacts for reliable signal transfer.
- Features a standard 2.54 mm pitch compatible with many PCB designs.
- Single row, straight orientation with unshrouded contact housing.
- Mounts via through-hole soldering ensuring secure mechanical and electrical connection.
- Supports voltage rating of up to 250 V and current rating of 4 A per contact.
- Housing made from insulating nylon material providing electrical safety and durability.
- Operates reliably within temperature range from -40°C to 80°C.
- Designed for use with Molex compatible housings such as series 2695 and others.
Product Description
Molex 22-23-2061 KK 254 Series Straight Through Hole Pin Header is designed for reliable wire-to-board connections with its 6 male contacts spaced at 2.54 mm pitch in a single unshrouded row. Constructed from tin-plated brass contacts and housed in durable nylon, this connector ensures safe and stable signal transmission with a voltage rating of 250 V and a current capacity of 4 A per contact.
The straight orientation paired with through-hole mount type facilitates easy PCB integration and soldering. The friction locking feature helps maintain position during assembly, enhancing manufacturing efficiency. This pin header is suitable for various industrial and commercial applications, including automated assembly lines, packaging equipment, and vehicle chargers.
Its operating temperature range of -40°C to 80°C makes it versatile for environments requiring thermal resilience. The product complies with industry standards ensuring quality and performance.
Conductive tin-plated brass contacts provide reliable signal transfer. Standard 2.54 mm pitch ensures broad compatibility. Unshrouded male contacts in one row facilitate easy mating. Nylon housing offers electrical insulation and durability.
Through-hole mounting type for secure soldered connection. Rated for 250 V voltage and 4 A current per contact. Suitable for use with Molex housing series 2695, 6471, 7880, 4455, and 7720. Ideal for industrial and automotive applications.
This product is new and made in India. For more PCB Headers and related electronic connectors, explore the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this pin header is 250 V.
It has a current rating of 4 A per contact.
The contacts are spaced at a standard pitch of 2.54 mm.
This pin header utilizes a through-hole mounting type for secure soldering to PCBs.
It operates reliably within a temperature range of -40°C to 80°C.
The contacts are made from tin-plated brass, while the housing is constructed from nylon.
This model features 6 male contacts.
It is designed with unshrouded contacts, allowing for easy mating.
The tail pin length is 3.56 mm.
It is compatible with Molex housing series 2695, 6471, 7880, 4455, and 7720.
This pin header uses a wire-to-board connector system.
This pin header is manufactured in India.
