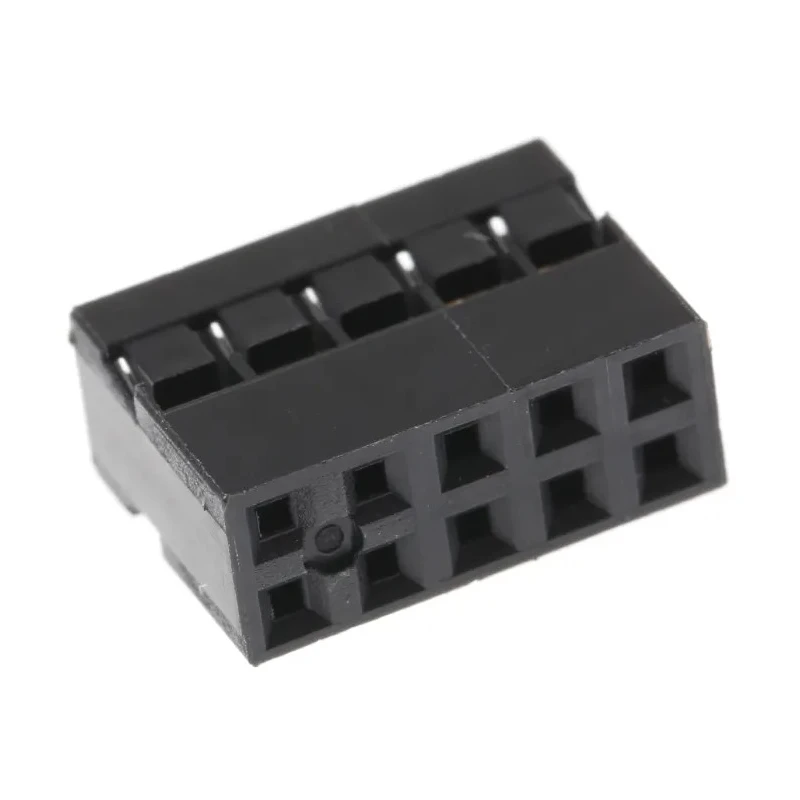

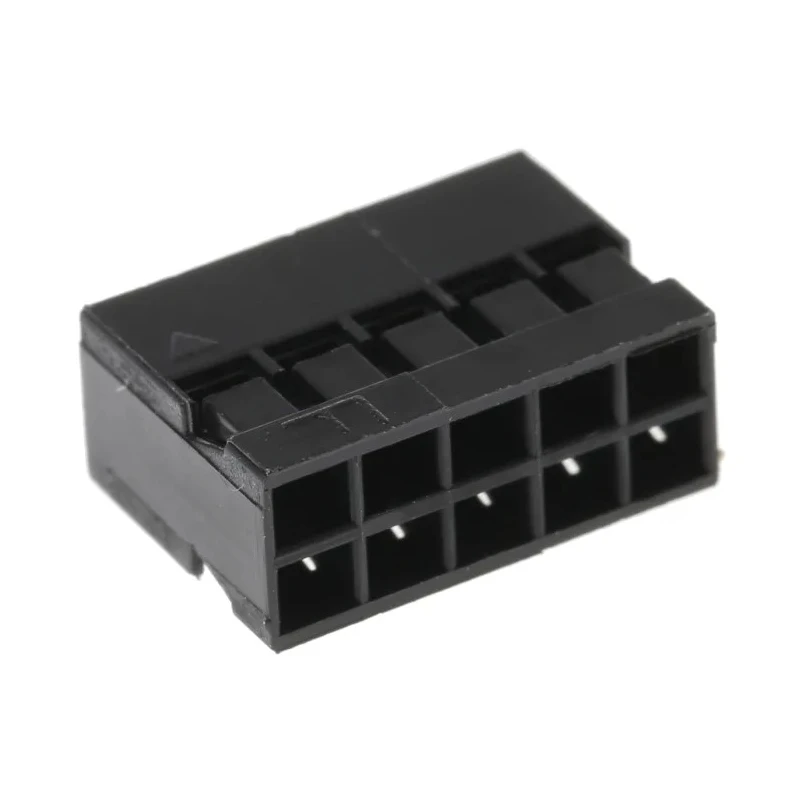

Harwin M22-30 Female Connector Housing 2 mm Pitch 10 Way 2 Row Straight Nylon M22-3020500
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Length | 10.4mm |
| Model | M22-3020500 |
| Width | 4.1mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | M22-30 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | M22 Series Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
| HARWIN, M22-30 Female Connector Housing, 2 mm Pitch, 16 Way, 2 Row StraightBrand | HARWIN |
Key Features
- Accommodates 10 contacts in a double-row configuration for versatile signal or power transmission.
- Features a 2 mm pitch for compact electronic designs and dense PCB layouts.
- Manufactured with durable nylon housing, providing mechanical integrity and electrical insulation.
- Female connector gender for mating with corresponding pin headers in the M22 Series.
- Straight cable-mount design, suitable for modern electronic, industrial, and automation systems.
- Compatible for use with Harwin M22 Series connectors and standard crimp terminals.
- Supports single or double row crimp socket shells, ensuring flexibility in modular wiring schemes.
- Ideal for compact instruments, control panels, industrial, and signal distribution applications.
Product Description
The Harwin M22-3020500 Female Connector Housing is engineered for excellence in cable-to-board connectivity, ideally suited to modern electronic assemblies in industrial and automation environments. Featuring a compact 2 mm pitch, this 10-way, 2-row straight housing provides a reliable interface for densely populated PCBs where space-saving and robust interconnections are essential.
Constructed from high-quality nylon, the housing delivers excellent mechanical strength, electrical insulation, and long-term reliability. This female connector accommodates 10 contacts arranged in two rows, making it suitable for multi-signal or low-power applications in embedded systems, test equipment, and automation controls. Its straight cable-mount form factor is crafted for easy integration into streamlined cable harnesses or modular panel systems.
Designed for seamless mating with compatible M22 Series pin headers, the M22-3020500 accepts standard crimp contacts - either tin- or gold-plated - supporting flexible wiring standards for a diverse range of user requirements. The precise 2 mm pitch aligns perfectly with Harwin M22-201/203 Series headers, ensuring secure electrical contact and facilitating efficient signal distribution throughout an assembly.
This housing stands out in environments that demand robust connections, such as industrial controllers, instrumentation racks, process automation, and compact commercial equipment. The low-profile geometry, combined with reliable latching and retention features, ensures stability under vibration and repeated mating cycles. Engineered tolerances and quality nylon construction provide lasting performance even in demanding technical settings.
Applications include signal wiring, PCB interconnections for compact control devices, communications infrastructure, laboratory equipment requiring frequent mating cycles, and industrial automation panels. Configurability extends to single or double row crimp socket shells, allowing versatile deployment across a variety of electrical projects.
Explore the Harwin range for additional connector housings, headers, and cable accessories to complement complex and evolving electronic systems. Browse more connector solutions and discover the ideal fit for specialized requirements in electronics, automation, and instrumentation categories.
Explore more products in our PCB Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2 mm, making it suitable for compact electronic designs and dense PCB layouts.
This model accommodates 10 contacts arranged in a double-row configuration.
The orientation of the Harwin M22-30 Female Connector Housing is straight, designed for cable mounting.
The housing is manufactured from nylon, providing mechanical integrity and electrical insulation.
It is designed for use with the M22 Series connectors, ensuring seamless mating with corresponding pin headers.
The dimensions of this connector housing are 10.4 mm in length and 4.1 mm in width.
It is suitable for applications such as signal wiring, PCB interconnections for compact control devices, and industrial automation panels.
The mounting type for the M22-3020500 is cable, designed for integration into cable harnesses or modular panel systems.
The connector gender of this housing is female, allowing it to mate with corresponding male connectors in the M22 Series.
The country of origin for this product is Taiwan.
Yes, it supports both single and double row crimp socket shells, providing flexibility in wiring schemes.
The model number of this connector housing is M22-3020500.
