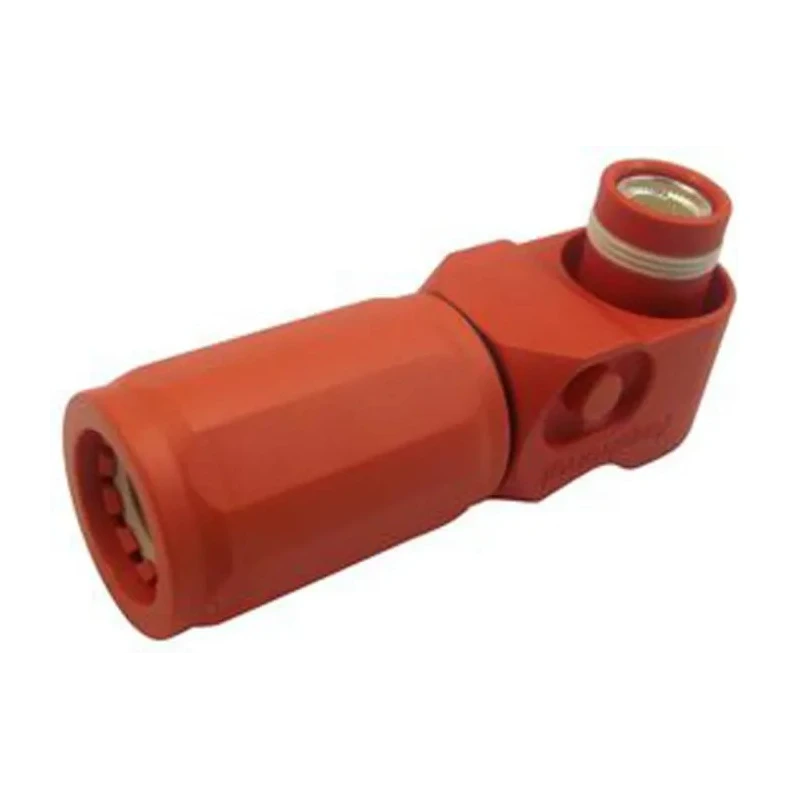

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 300A SLPPC70BSO1 / C10-730190-0701
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 300A |
| Height | 88.5mm |
| Model | SLPPC70BSO1 / C10-730190-0701 |
| Depth | 40.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 30.3mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 10.3mm |
| Number of Rows | 1 |
| Wire size | 70mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- The connector features a 300A rating suitable for heavy-duty electrical power transfer.
- SURLOK PLUS RADSOK technology ensures high tensile strength and excellent conductivity.
- Operates up to 1000V with a compact 10.3mm pin diameter for secure connection.
- Designed for right-angle cable mounting with a durable thermoplastic housing that is IP67 rated.
- Compatible with 70mm² wire size and terminates via crimp connection for reliable performance.
- Rated for operation between -40°C to 125°C, suitable for harsh environments.
- Keyed design prevents mismating with 180 degree orientation and features spring locking for secure contact.
- Flame retardant compliant to UL 94-V0 ensuring safety in demanding applications.
Product Description
Amphenol Industrial SLPPC70BSO1 / C10-730190-0701 SURLOK PLUS RADSOK EV Connector Male 300A is a compact, quick-mating electrical connector designed for demanding industrial and electric vehicle applications.
This connector integrates the R4 RADSOK technology which provides a high tensile strength connection combined with a highly conductive surface area, ensuring reliable power delivery with minimal losses. The connector pin diameter measures 10.3mm, terminating to 70mm² wire size through a crimp termination process for optimal connectivity.
The connector housing is made of rugged thermoplastic material that is IP67 rated for dust and water ingress protection, enabling performance in harsh environmental conditions. It supports an operating voltage up to 1000V and temperature range from -40°C to 125°C, making it suitable for applications in rail mass transit, battery management systems, heavy equipment, and process control.
The connector is designed as a right-angle cable mount type with a spring locking mechanism and keyed to prevent mismating, providing enhanced installation security. Its flame retardant UL 94-V0 rating ensures safety during operation.
In addition to EV and industrial usage, this connector finds applications in medical equipment and battery management and storage systems, especially where reliable power connectivity and environmental resistance are critical.
The connector supports 300A current rating ensuring power handling capability for high-demand applications. The compact design with orange housing allows for easy identification and installation in complex assemblies. Contact material of copper alloy provides excellent conductivity and corrosion resistance.
IP67 protection guarantees dust-tight and waterproof operation. SurLok Plus series connectors are engineered for Electric Vehicle (EV) and Hybrid Electric Vehicle (HEV) industry standards. The product conforms to UL 94-V0 flammability standards for safety assurance.
The connector's spring locking and 360° rotation features enhance ease of installation and maintenance. Keyed design prevents mismating and ensures correct orientation during connection. This product is manufactured in China and is part of Amphenol Industrial's Better World range, emphasizing renewable energy solutions and sustainability.
Explore more EV Connectors and electronic components at EnvMart for reliable and certified industrial-grade electrical solutions.
