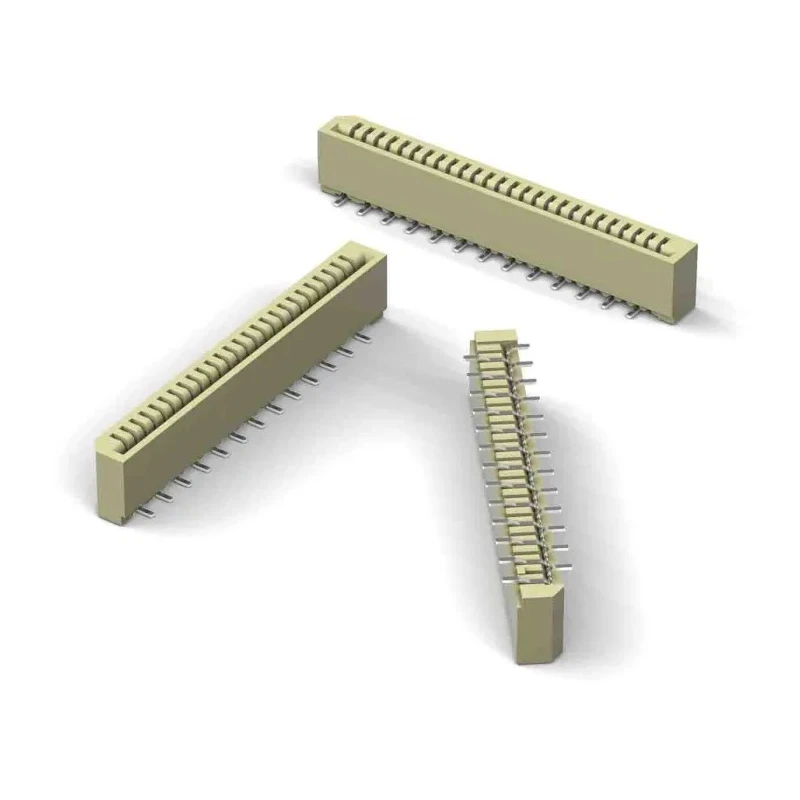

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 12 Contacts, 1 mm Pitch, 1 Row, Shrouded 686112188822

Name: Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 12 Contacts, 1 mm Pitch, 1 Row, Shrouded 686112188822
Brand: Wurth Elektronik
SKU: 163992
Price: 927.43 USD
Availability: InStock



Category PCB Connector Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	Wurth Elektronik
Orientation	Vertical
Current	1A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	WR-FPC
Termination Type	Solder
Maximum Operating Temperature	85°C
Contact Type	Stamped
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Standards/Approvals	RoHS
Contact Plating	Tin over Nickel
Number of Contacts	12
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with high-quality Liquid Crystal Polymer housing material.
Features phosphor bronze contacts plated with 2.032μm tin over 1.27μm nickel for excellent conductivity.
Designed for surface mount installation with vertical orientation.
Operates with a current rating of 1A and voltage rating of 125V AC.
Supports a temperature range from -25°C to 85°C for reliable performance.
Shrouded design provides protection and prevents misalignment during mating.
Complies with RoHS standards ensuring environmental safety.
Contact type is stamped, facilitating secure and robust electrical connections.

Product Description

Wurth Elektronik 686112188822 WR-FPC Series vertical surface PCB header is a high-performance connector designed for electronics components applications. Featuring 12 contacts arranged in a single row with a 1 mm pitch, this PCB header is shrouded to provide secure connectivity and alignment.

The housing utilizes durable Liquid Crystal Polymer for enhanced mechanical strength and heat resistance, suitable for industrial use.

Contact material consists of phosphor bronze with a plating of 2.032μm tin over 1.27μm nickel, ensuring reliable electrical conductivity and corrosion resistance. The contact type is stamped for precise and consistent contact profiles.

This surface mount connector supports a current rating of 1A and voltage rating of up to 125V AC, operating efficiently within the -25°C to 85°C temperature range. The product fully complies with RoHS standards, ensuring environmental compatibility and safety.

The WR-FPC series connector is ideal for wire-to-board applications in industrial electronics, power distribution, and electronic assembly processes where robust and precise connectors are essential.

Constructed with Liquid Crystal Polymer housing material. Phosphor bronze contacts plated with tin over nickel. Surface mount type with vertical orientation. Rated 1A current and 125V voltage. Operating temperature range from -25°C to 85°C.

Shrouded for protection and alignment. Complies with RoHS environmental standards. Stamped contact type for precision and reliability.

Enhance your electronic designs with the reliable Wurth Elektronik WR-FPC Series PCB header. Browse EnvMart categories for compatible connectors and accessories to complete your setup.
