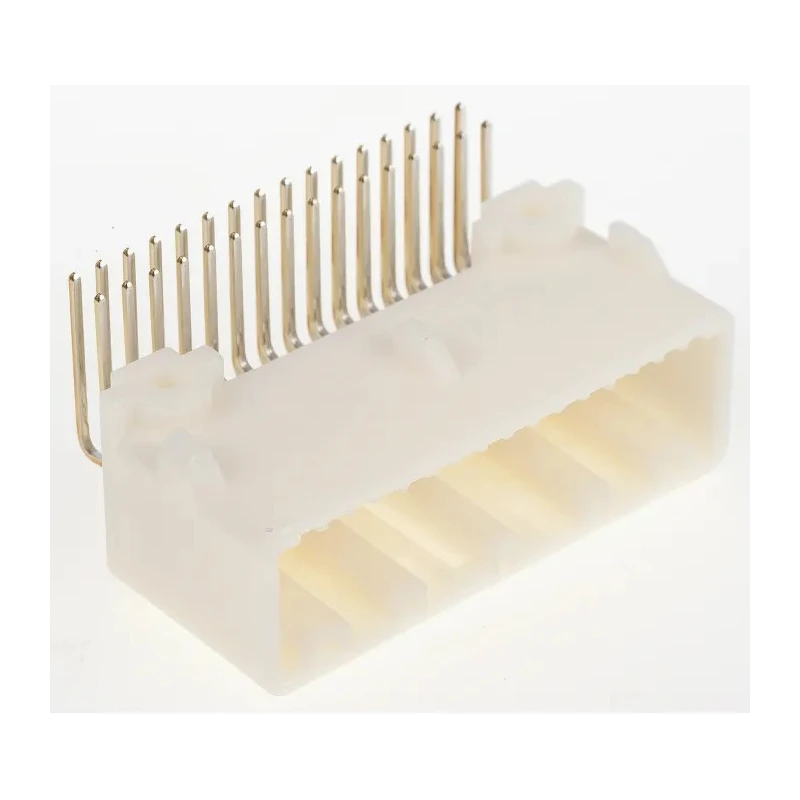

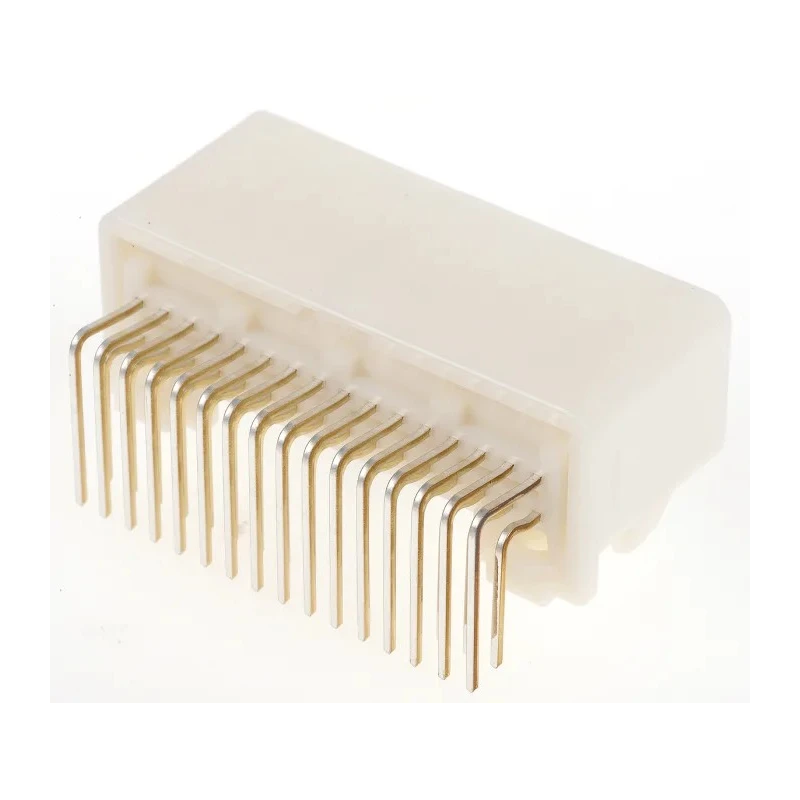

TE Connectivity TH 025 Automotive Connector Female Natural Through Hole 32 Way Solder Termination 1318745-2
Specifications
| Diameter | 3mm |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| Height | 15.5mm |
| Depth | 24.47mm |
| Width | 40.6mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Sub Type | Automotive Wire Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Standards/Approvals | JIS B1115JIS B1122 |
| Contact Plating | Tin |
| Number of Contacts | 32 |
Key Features
- Compact automotive connector featuring 32 contacts for reliable connectivity.
- Natural polybutylene terephthalate housing ensures durability and resistance to automotive environments.
- Through hole mount type with solder termination for secure PCB fixation.
- Rated for operating temperatures from -30°C to 150°C suitable for harsh conditions.
- Brass contacts plated with tin for corrosion resistance and secure signal integrity.
- Dual-row configuration with 2 rows to optimize PCB space usage.
- Connector designed for automotive safety and body electronic systems applications.
- Complies with JIS B1115 and JIS B1122 standards for quality and reliability.
Product Description
TE Connectivity 1318745-2 is a female automotive connector from the TH 025 series featuring natural colored polybutylene terephthalate (PBT) housing with 32 contacts arranged in two rows. This through hole mount connector is designed for solder termination, ensuring a durable and secure connection on printed circuit boards in automotive electronic systems.
The connector operates reliably in a wide temperature range from -30°C to 150°C, making it suitable for demanding automotive environments including safety, security, convenience, and body control applications such as mirrors, multimedia systems, airbags, switches, and dashboard control modules.
Featuring brass contact material with tin plating, it provides low contact resistance and excellent corrosion resistance. The compact design with a 2.2mm pitch allows for high-density connections saving valuable board space while maintaining robust mechanical integrity with board fixation screws.
Conformance to industry standards JIS B1115 and JIS B1122 ensures the product meets the quality expectations for automotive connector components.
The 1318745-2 connector is an ideal choice for automotive manufacturers and electronics engineers seeking reliable, high-performance connectors suitable for extensive automotive electrical wiring and control systems.
Compact design with high-density 2.2 mm pitch contacts. Durable PBT housing in natural color for automotive applications. Solder termination with through hole mount type. Wide operating temperature range from -30°C to 150°C.
Brass contacts with tin plating for corrosion resistance. Compliance with JIS B1115 and JIS B1122 standards. 2-row, 32-contact configuration for efficient PCB connectivity. Ideal for automotive safety, security, body, and multimedia systems.
Explore the full range of Automotive Connectors at EnvMart for diverse industrial and automotive electronic integration projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum operating temperature of 150°C.
This model features 32 contacts arranged in a dual-row configuration.
The housing is made of natural polybutylene terephthalate (PBT), which provides durability and resistance to automotive environments.
It utilizes a solder termination type for secure PCB fixation.
It complies with JIS B1115 and JIS B1122 standards, ensuring quality and reliability in automotive applications.
The contacts have a pitch size of 2.2 mm, allowing for high-density connections on printed circuit boards.
The connector has a depth of 24.47 mm and a width of 40.6 mm.
The minimum operating temperature is -30°C, making it suitable for harsh conditions.
It supports a through hole mount type, which is ideal for securing to printed circuit boards.
The contacts are made of brass and are plated with tin for corrosion resistance and secure signal integrity.
The height of this model is 15.5 mm.
It is designed for automotive safety, security, body control, and multimedia systems applications.
