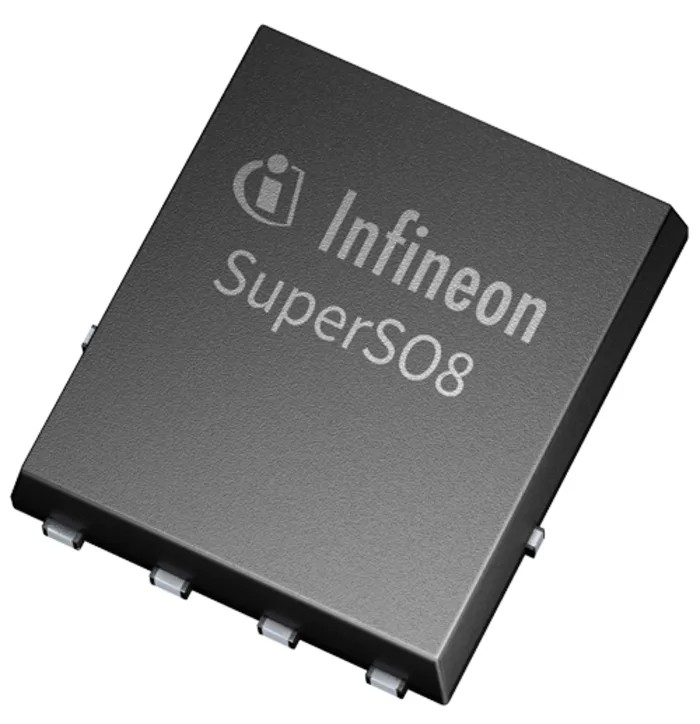

Infineon ISC019N03L5SATMA1 N-Channel MOSFET, 330A, 40V, SuperSO8 5 x 6, 8-Pin
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | ISC019N03L5SATMA1 |
| Mount Type | Surface |
| Series | ISC |
| Maximum Operating Temperature | 175°C |
| Package Type | SuperSO8 5 x 6 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 330A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 1.4mΩ |
| Maximum Power Dissipation Pd | 81W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1.1V |
Key Features
- Designed for superior performance in buck converter applications.
- N-channel configuration with very low on-resistance.
- Supports maximum continuous drain current up to 330A.
- Capable of operating at drain-source voltages up to 40V.
- Efficient thermal resistance for reliable surface mount operation.
- Compliant with RoHS and automotive AEC-Q101 standards.
- Halogen-free as per IEC61249-2-22, ensuring environmental friendliness.
- Maximum power dissipation up to 81W and operating temperature range from -55°C to 175°C.
Product Description
Infineon ISC019N03L5SATMA1 N-Channel MOSFET provides robust performance for demanding power electronics applications. This device incorporates advanced features such as very low on-resistance, a high maximum continuous drain current of 330A, and a drain-source voltage tolerance up to 40V. Housed in a SuperSO8 5 x 6 package, the 8-pin structure facilitates easy PCB integration and efficient thermal management.
The ISC019N03L5SATMA1 MOSFET is optimized for high-performance buck converter circuits and other power management designs requiring reliability and efficiency. Its surface mount design allows quick installation on automated assembly lines, enhancing production throughput.
With compliance to RoHS and automotive AEC-Q101 standards, this MOSFET is suitable for both industrial and automotive electronics environments. The halogen-free construction meets IEC61249-2-22 requirements, providing further assurance for environmentally conscious projects.
Designed for superior performance in buck converter applications. N-channel configuration with very low on-resistance. Supports maximum continuous drain current up to 330A. Capable of operating at drain-source voltages up to 40V.
Efficient thermal resistance for reliable surface mount operation. Compliant with RoHS and automotive AEC-Q101 standards. Halogen-free as per IEC61249-2-22, ensuring environmental friendliness. Maximum power dissipation up to 81W and operating temperature range from -55°C to 175°C.
Applications include industrial power modules, automotive systems, laboratory equipment, manufacturing control boards, and PCB assembly processes. The SuperSO8 package and 8-pin format allow versatile use in advanced electronics.
Browse more Infineon MOSFETs in the EnvMart electronics and semiconductor category for technical support and application solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ISC019N03L5SATMA1 supports a maximum continuous drain current of 330A.
It can operate at drain-source voltages up to 40V.
The operating temperature range is from -55°C to 175°C.
This model is housed in a SuperSO8 5 x 6 package.
The maximum power dissipation is up to 81W.
The ISC019N03L5SATMA1 has an 8-pin count and features a surface mount design.
It complies with the automotive AEC-Q101 standard.
The typical gate charge at Vgs is 80nC.
The maximum gate-source voltage is 20V.
The forward voltage is specified at 1.1V.
The maximum drain-source resistance is 1.4mΩ.
This model is suitable for applications including industrial power modules, automotive systems, and laboratory equipment.
