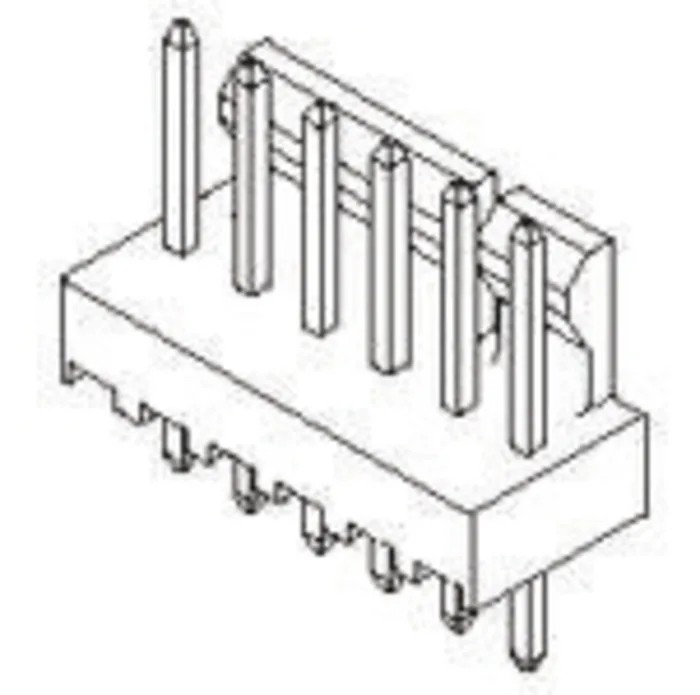

Molex KK 254 Series Straight Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-11-2052
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- The header is unshrouded and has a straight orientation for easy PCB insertion.
- Constructed with a nylon housing for durability and electrical insulation.
- Contacts are made of brass with gold plating for reliable conductivity and corrosion resistance.
- Supports a current rating of 4 amperes and a voltage rating of 250 volts.
- Designed for through-hole mounting and solder termination type.
- Operates within a temperature range from -40°C to 105°C.
- Male contact gender compatible with KK 254 series housings.
- Compatible with Molex series 2695, 6471, 7880, 4455, and 7720 housings.
Product Description
Molex 22-11-2052 KK 254 Series Straight Through Hole Pin Header is a high-quality electrical connector designed for wire-to-board interfaces. This header features 5 gold-plated brass contacts arranged in a single row with a 2.54 mm pitch, allowing precise and secure connections in electronic circuits.
The housing is made from durable nylon material, enhancing the insulative properties and mechanical stability of the connector. Its straight orientation and unshrouded design facilitate straightforward mounting on printed circuit boards via through-hole soldering.
Rated for 4 amperes current and 250 volts operating voltage, this pin header operates reliably within a temperature range of -40°C to 105°C, making it suitable for diverse industrial and commercial electronics applications. The gold plating on contacts ensures excellent conductivity and corrosion resistance, vital for maintaining steady electrical performance.
This product mates compatibly with Molex KK 254 series housings including models 2695, 6471, 7880, 4455, and 7720, offering flexibility in complex wiring and assembly configurations.
Typical use cases include electronic manufacturing, industrial control systems, PCB assembly, and other applications demanding enduring, high-quality connector solutions. The header is unshrouded and has a straight orientation for easy PCB insertion.
Constructed with a nylon housing for durability and electrical insulation. Contacts are made of brass with gold plating for reliable conductivity and corrosion resistance. Supports a current rating of 4 amperes and a voltage rating of 250 volts.
Designed for through-hole mounting and solder termination type. Operates within a temperature range from -40°C to 105°C. Male contact gender compatible with KK 254 series housings. Compatible with Molex series 2695, 6471, 7880, 4455, and 7720 housings.
Ideal for industrial, electronic assembly, and PCB connectivity solutions. Explore the wide range of Molex connectors and PCB header components available at EnvMart to optimize your manufacturing and design projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 4 amperes and a voltage rating of 250 volts.
The contacts in this model have a pitch of 2.54 mm.
The housing is made from nylon, while the contacts are constructed from brass with gold plating.
It operates within a temperature range from -40°C to 105°C.
This model features 5 contacts arranged in a single row.
It is designed for through-hole mounting with a solder termination type.
This pin header is unshrouded, allowing for easy PCB insertion.
It is compatible with Molex KK 254 series housings including models 2695, 6471, 7880, 4455, and 7720.
The contacts in this model are male gender.
This pin header utilizes a wire-to-board connector system.
The country of origin for this pin header is India.
This model is suitable for applications in electronic manufacturing, industrial control systems, and PCB assembly.
