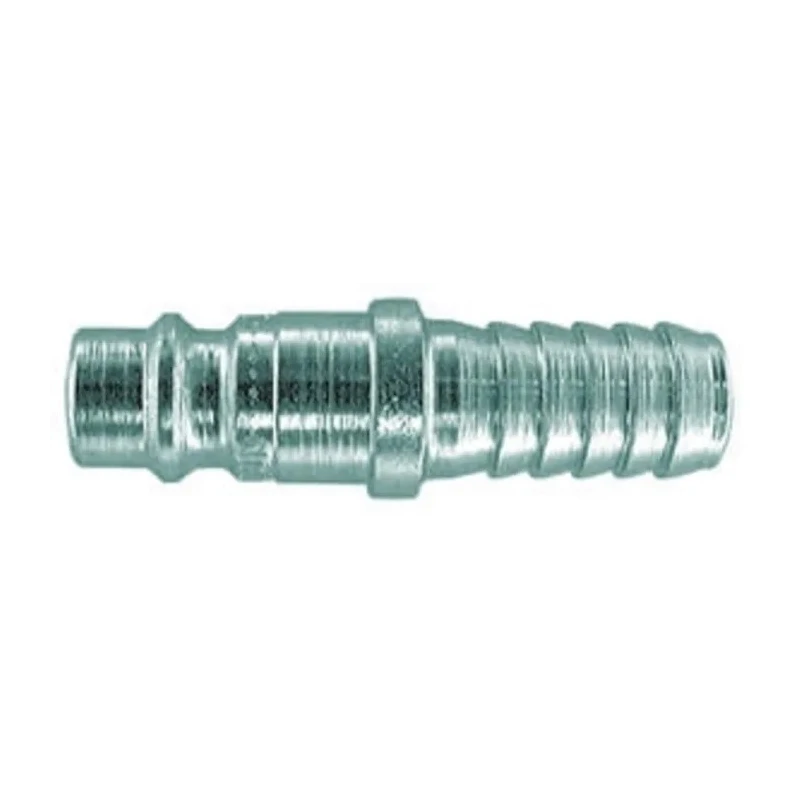

CEJN Steel Pneumatic Quick Connect Coupling Male 8mm Zinc Plated 300 Series 103005003

CEJN 103005003 steel pneumatic quick connect coupling male 8mm is engineered for high performance in pneumatic systems requiring quick and secure hose connections. Constructed from robust zinc plated steel, this coupling adapts to hose barb fittings of 8 mm diameter, ensuring compatibility with a wide range of pneumatic hoses.

Designed as part of the CEJN 300 Series, it features a nominal flow diameter of 5.5 mm and is capable of handling air flow rates up to 1050 l/min. The coupling works reliably at maximum operating pressures of 16 bar and temperature conditions ranging from -20°C up to 100°C, making it suitable for diverse industrial applications including manufacturing, HVAC maintenance, fluid power transmissions, and machinery automation.

The male coupling incorporates pre-applied thread sealant on its threads for a secure, leak-free connection. Zinc plating enhances resistance to corrosion and wear, extending equipment lifespan in harsh environments. The coupling is compatible with standard and safety versions which include two-stage vented safety types to minimize sudden disconnection risks and operator injury potential. Full automatic operation simplifies usage, enhancing productivity on shop floors and assembly lines.

CEJN pneumatic quick connect couplings interchange with Aro 210 and Rectus 14 series, offering flexibility in retrofit and replacement scenarios. These couplings comply with EN 983 and ISO 4414 standards, guaranteeing safety and reliability in pneumatic circuit applications.

The coupling is made of durable steel material for long service life. Male thread design with pre-applied thread sealant ensures leak-free connection. Supports hose barb connection size of 8 mm for flexible pneumatic hose fitting.

Series 300 design features a nominal flow diameter of 5.5 mm for high flow capacity. Maximum operating pressure up to 16 bar and temperature range from -20°C to 100°C. Fully automatic operation provides easy and fast connect/disconnect handling.

Zinc plated construction offers corrosion resistance in industrial environments. Interchangeable with Aro 210 and Rectus 14 series couplings. Conforms to EN 983 and ISO 4414 safety and quality standards.

This Pneumatic Quick Connect Coupling is suitable for industrial, manufacturing, HVAC, and fluid power applications where secure and rapid hose connections are critical. CEJN products are designed to maintain safety, efficiency, and durability on the job.

For more pneumatic and hydraulic connection solutions, browse the Industrial Tools & Equipment category at EnvMart.
