Wurth Elektronik 1327 Series PCB Terminal Block, 2 Contacts, 5 mm Pitch, Through Hole, Vertical, Grey, 450V AC 691132700002

Free Delivery in India | Lowest Global Shipping Charges

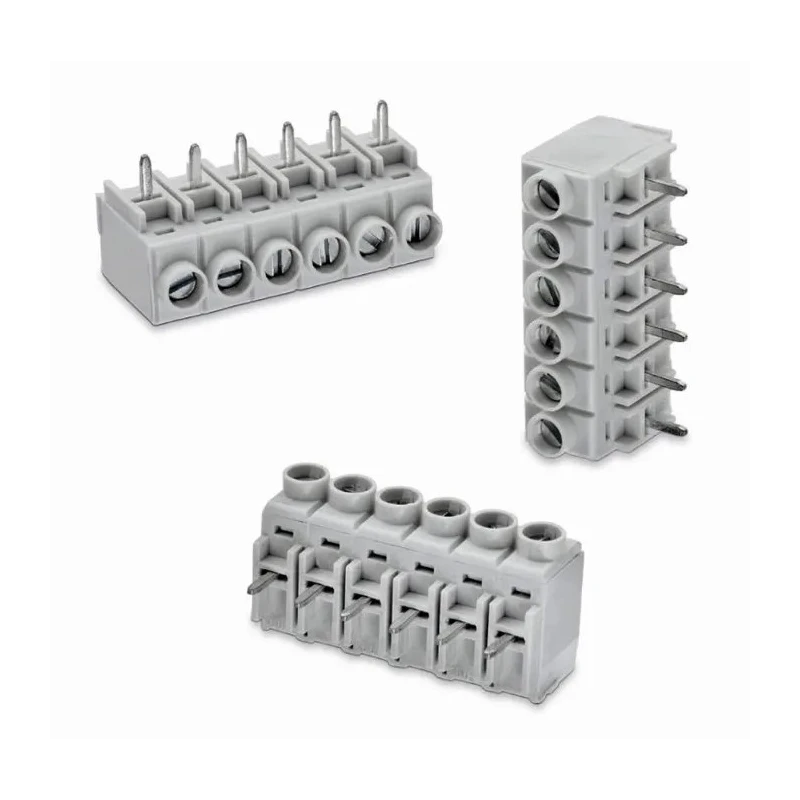

Wurth Elektronik 1327 Series PCB Terminal Block, 2 Contacts, 5 mm Pitch, Through Hole, Vertical, Grey, 450V AC 691132700002

Name: Wurth Elektronik 1327 Series PCB Terminal Block, 2 Contacts, 5 mm Pitch, Through Hole, Vertical, Grey, 450V AC 691132700002
Brand: Wurth Elektronik
SKU: 90880
Price: 1.08 USD
Availability: InStock



Category PCB Terminal Block Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	450V ac
Brand	Wurth Elektronik
Colour	Grey
Orientation	Vertical
Current	22A
Length	10mm
Depth	10.5mm
Width	15.5mm
Mount Type	Through Hole
Series	1327
Number of Rows	1
Pitch	5mm
Standards/Approvals	cULus, RoHS, VDE
Number of Contacts	2
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	3.31mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	12AWG

Key Features

Provides a secure terminal block solution with pressure clamp and M2.5 screw.
Accommodates both solid and stranded wire sizes from 30 to 12 AWG (0.05 - 3.31 mm²).
Rated for 450V AC and delivers a maximum current of 22A.
Designed for through hole mounting with a single row and vertical orientation.
Housed in durable grey polycarbonate, compliant with UL94-V0 and RoHS standards.
Suitable for PCB assemblies requiring reliable electrical connections.

Product Description

The Wurth Elektronik 1327 Series PCB Terminal Block 691132700002 is engineered to provide robust and secure connectivity on printed circuit boards for industrial and electronic hardware. Combining durability, compact dimensions, and advanced pressure clamp technology, this terminal block is a versatile solution suited to a wide range of automation, control, and power distribution systems.

This model features 2 contacts and a 5 mm pitch, supporting standard wiring requirements for high-density layouts. Its vertical orientation ensures ease of use in through hole PCB integrations. With accommodation for wire sizes from 30 AWG up to 12 AWG (0.05 - 3.31 mm²), it maximizes flexibility for installers and designers.

Provides a secure terminal block solution with pressure clamp and M2.5 screw. Accommodates both solid and stranded wire sizes from 30 to 12 AWG (0.05 - 3.31 mm²). Rated for 450V AC and delivers a maximum current of 22A. Designed for through hole mounting with a single row and vertical orientation.

Housed in durable grey polycarbonate, compliant with UL94-V0 and RoHS standards. Suitable for PCB assemblies requiring reliable electrical connections. Compact dimensions: 15.5 mm width, 10 mm length, and 10.5 mm depth.

The block is constructed from grey UL94-V0 polycarbonate and incorporates cULus, RoHS, and VDE approvals. The pressure clamp secures conductors firmly via a zinc plated steel clamp and M2.5 screw system for vibration resistance and consistent connectivity.

Designed for vertical entry and through hole installation, it supports quick integration into diverse electronic systems, including automation control, industrial machinery, lighting, and building management applications.

Its compact footprint - 15.5×10×10.5 mm - ensures efficient PCB space utilization and compatibility with most standard board layouts. Wurth Elektronik terminal blocks are recognized for reliability and are ideal in manufacturing, laboratory, and commercial projects where high-performance connections are required.
