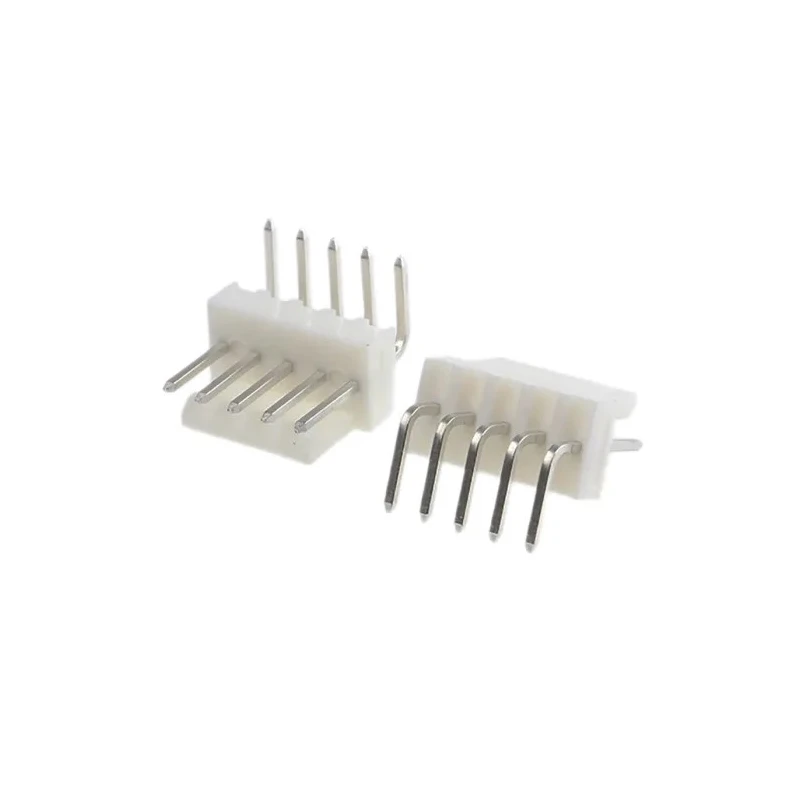

Molex KK 254 Series Right Angle Through Hole Pin Header 5 Contacts 2.54mm Pitch 1 Row Unshrouded 22-05-3051
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.58mm |
Key Features
- Designed with 5 contacts and 2.54 mm pitch for precise wire-to-board connections.
- Right angle orientation enables space-saving PCB mounting.
- Constructed from nylon housing material with brass contacts plated in tin.
- Supports a maximum operating voltage of 250V and current rating of 4A.
- Rated for operation between -40°C to 105°C ensuring reliability in harsh environments.
- Features solder termination with 3.58 mm tail pin length for secure through-hole assembly.
- Unshrouded contact design allows flexible mating options.
- Compatible with KK 254 7478 Series right angle headers and mates with 2695 Series housings.
Product Description
Molex 22-05-3051 KK 254 Series Right Angle Through Hole Pin Header is a high-quality connector designed for secure wire-to-board electrical connections. This 5-contact header features a 2.54 mm pitch and single row configuration with an unshrouded design to facilitate easy mating with corresponding housings and connectors.
The nylon housing material offers UL 94V-0 white flame retardant properties, ensuring safety and durability. Brass contacts with tin plating provide excellent conductivity and corrosion resistance.
Engineered for industrial and electronic applications, this right angle pin header supports operating voltages up to 250V and currents up to 4A. It operates reliably within temperatures ranging from -40°C to 105°C, suitable for demanding environments including industrial control equipment, communications hardware, and PCB assemblies.
Termination is via solder tail pins measuring 3.58 mm in length, compatible with through-hole mounting techniques for consistent mechanical and electrical performance. This component is part of the KK 254/7478 Series, featuring friction lock capabilities to ensure stable connections and ease of assembly in electronic manufacturing.
The unshrouded design allows for flexible connector options and mates with Molex 2695 Series housings, providing a comprehensive connector system solution. 5 contacts and 2.54 mm pitch for accurate connections. Right angle orientation optimizes PCB layout and space utilization.
Nylon UL 94V-0 white housing ensures flame retardance. Brass contacts with tin plating for durability. Operation between -40°C and 105°C for reliability. Solder termination with 3.58 mm tail pin length. Unshrouded design for mating flexibility.
Mates with Molex 2695 Series housings.
This Molex pin header suits applications in electronics manufacturing, industrial electronics, automation, and other wiring systems requiring robust and precise PCB interconnections.
For more options and components, browse the PCB Headers category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 250V.
This header has a current rating of 4A.
The pitch size of the contacts is 2.54 mm.
It operates reliably between -40°C and 105°C.
This model features solder termination with a tail pin length of 3.58 mm.
The housing is made from nylon, while the contacts are brass with tin plating.
The orientation of this header is right angle, which allows for space-saving PCB mounting.
This pin header has 5 contacts.
Yes, it is compatible with KK 254 7478 Series right angle headers and mates with 2695 Series housings.
The contacts are designed as unshrouded, allowing for flexible mating options.
This model is suitable for applications in electronics manufacturing, industrial electronics, and automation.
The country of origin for this pin header is India.
