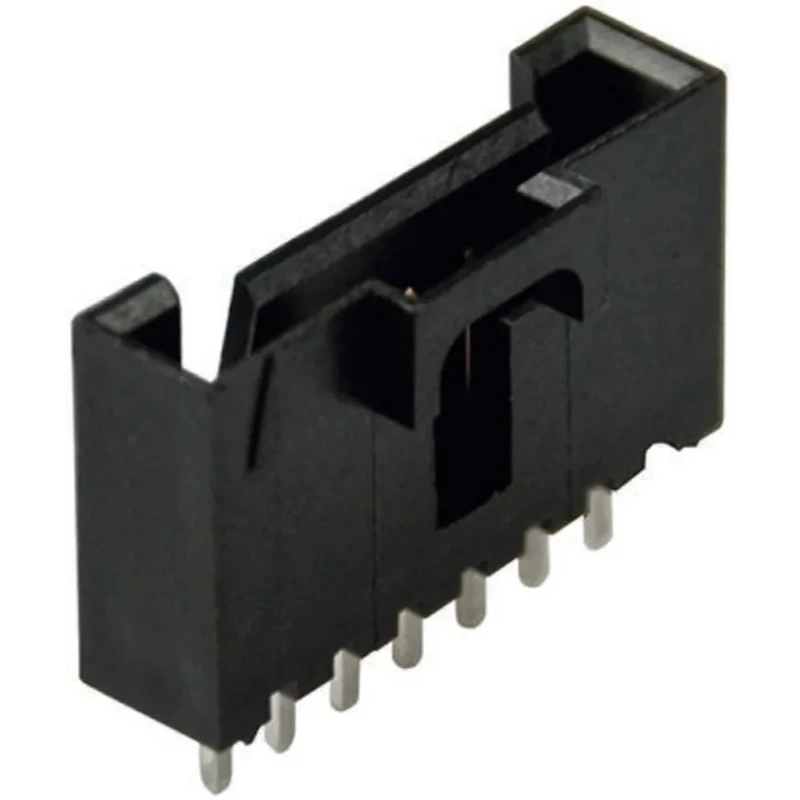

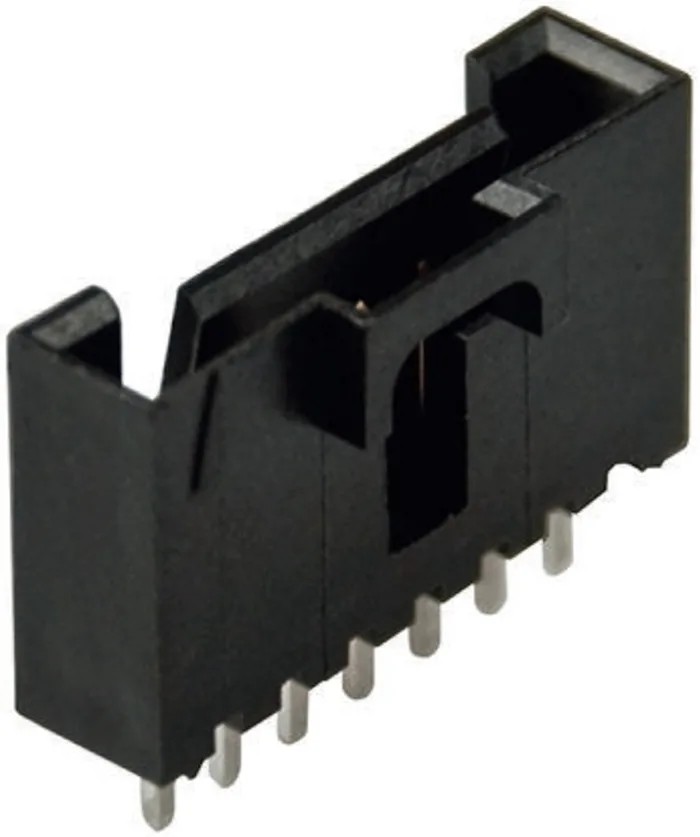

Molex SL Series Straight Through Hole PCB Header 7 Contact Wire-to-Board 2.54 mm Pitch 1 Row Shrouded 70543-0006
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- The connector features a shrouded design for secure mating.
- Constructed with glass filled polyester housing for durability.
- Phosphor bronze contacts with gold plating ensure reliable electrical performance.
- Rated for 3A current and 250V voltage capacity.
- Operates effectively between -40°C and 105°C temperature range.
- Through hole mount type suitable for PCB insertion and soldering.
- The contact tail pin length is 3.3 mm, and mating pin length is 6.1 mm.
- The connector orientation is straight to align with PCB layout.
Product Description
Molex 70543-0006 SL Series Straight Through Hole PCB Header is a high-quality electronic component ideal for wire-to-board connections requiring reliable and durable performance. Featuring 7 contacts arranged in a single row with a 2.54 mm pitch, this PCB header is shrouded for enhanced mating security and protection against accidental damage during insertion and removal.
Its glass filled polyester housing delivers robustness and mechanical stability, making it suitable for industrial, manufacturing, and electronic assembly applications. The phosphor bronze contacts coated with gold plating ensure excellent conductivity and corrosion resistance, supporting currents up to 3A and voltages up to 250V.
This PCB header operates efficiently in temperature environments ranging from -40°C to 105°C, making it well-suited for various industrial and commercial environments. The through hole mount type facilitates strong PCB solder connections, critical for long-lasting assemblies.
The contact design includes a 3.3 mm tail pin length for secure soldering and a 6.1 mm mating pin length for interface compatibility. Its straight orientation provides optimal alignment for PCB layouts requiring vertical headers.
Ideal use cases for this Molex SL Series PCB header include electronic manufacturing, prototyping, automation equipment, communication devices, and other industrial control systems where reliable wire-to-board connections are essential.
The connector features a shrouded design for secure mating. Constructed with glass filled polyester housing for durability. Phosphor bronze contacts with gold plating ensure reliable electrical performance. Rated for 3A current and 250V voltage capacity.
Operates effectively between -40°C and 105°C temperature range.
EnvMart offers a wide range of PCB Headers and electronic connectors for professional industrial and laboratory use, delivering quality and reliability for your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 3A and a voltage of 250V.
It operates effectively within a temperature range of -40°C to 105°C.
It features a through hole mount type suitable for PCB insertion and soldering.
The housing is made of glass filled polyester, and the contacts are made of phosphor bronze with gold plating.
This model has 7 contacts arranged in a single row.
The pitch size is 2.54 mm.
The tail pin length is 3.3 mm, and the mating pin length is 6.1 mm.
The connector orientation is straight, which aligns with the PCB layout.
It is ideal for electronic manufacturing, prototyping, automation equipment, and communication devices.
This connector uses a wire-to-board system.
The contacts are male gender.
The country of origin for this PCB header is the United States.
