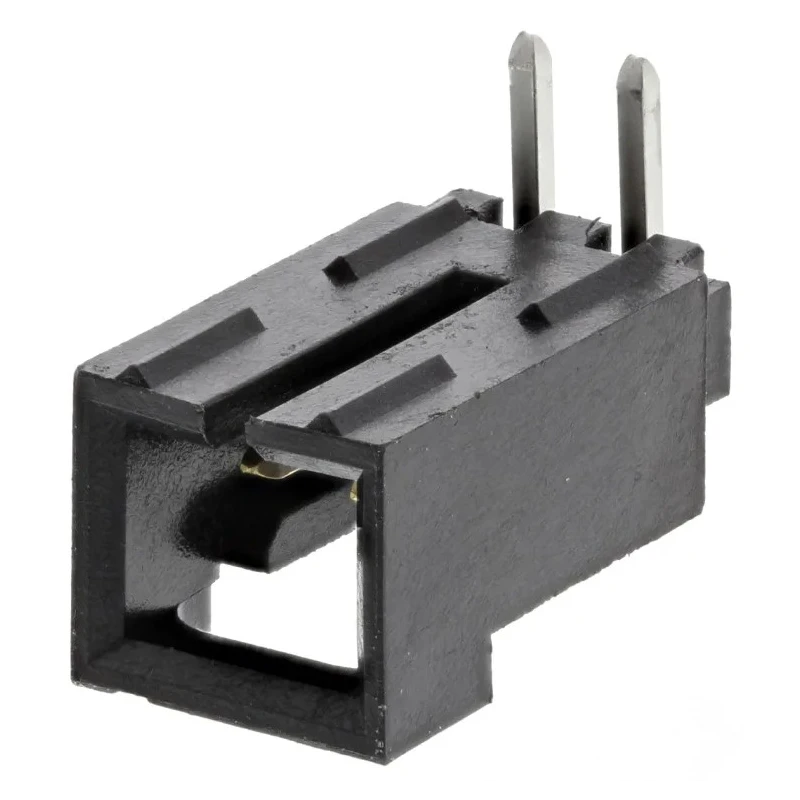

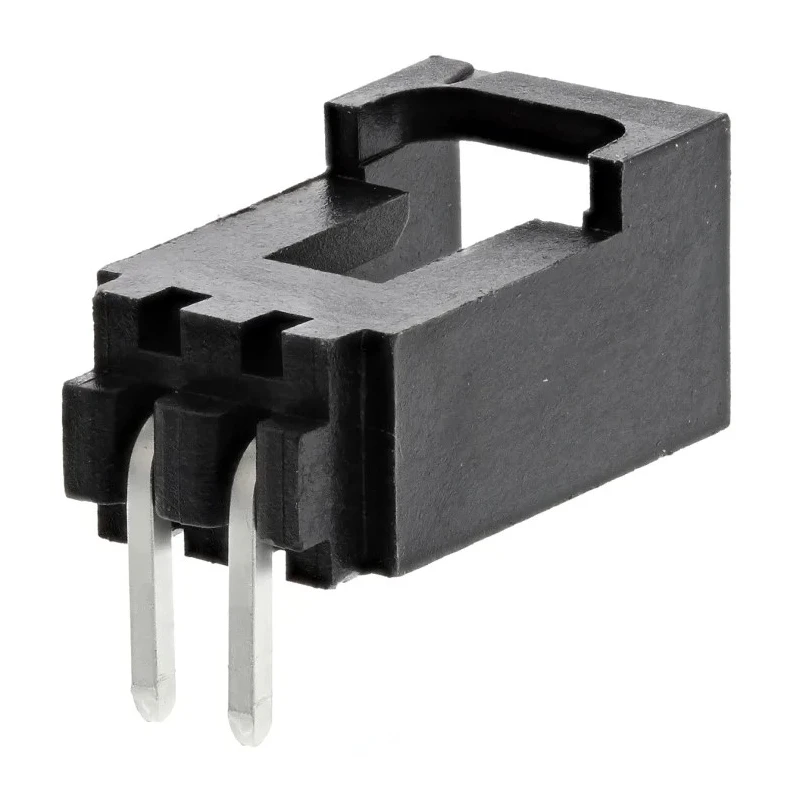

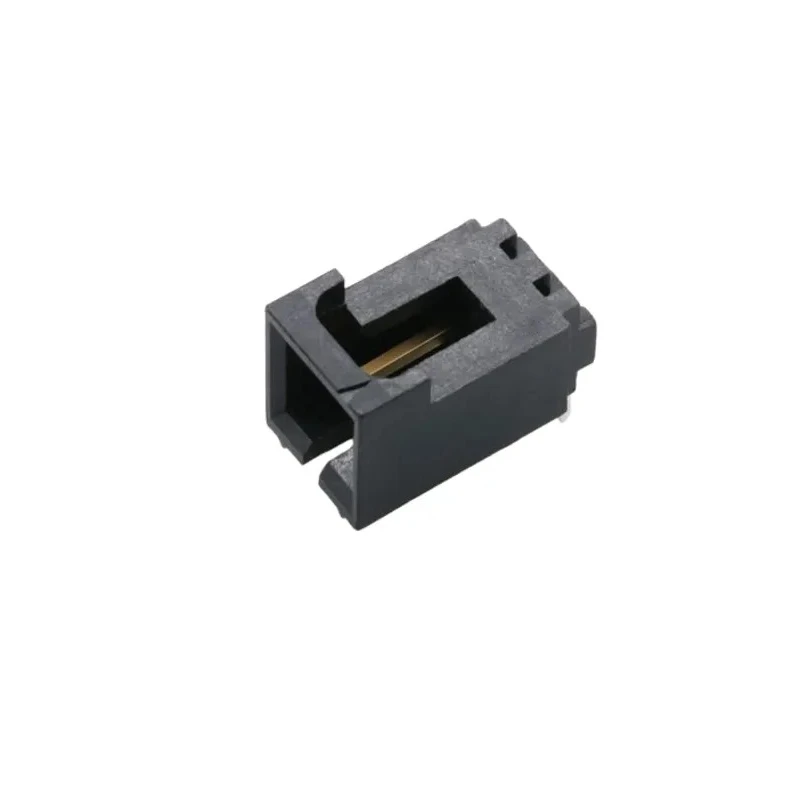

Molex SL Series Right Angle Through Hole PCB Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Shrouded, Gold Plated 70553-0001

Molex 70553-0001 SL Series Right Angle Through Hole PCB Header is a high-quality wire-to-board connector designed to facilitate efficient electronic signal transmission. This PCB header features 2 gold-plated phosphor bronze contacts arranged in a single row with a 2.54 mm pitch, providing reliable connectivity and excellent corrosion resistance. The shrouded and right-angle design improves protection and supports compact PCB layouts, making it ideal for space-constrained electronic assemblies.

Its thermoplastic housing ensures durability and longevity under various industrial environments. Rated for 3A current and 250V voltage, this header is engineered to maintain consistent electrical flow and withstand the demands of automation, electronics manufacturing, and electrical systems. The connector is optimized for a PCB thickness of 1.60 mm to guarantee secure mounting and optimal performance.

The tail pin length of 3.3 mm and mating pin length of 6.1 mm facilitate strong soldered connections through through-hole mounting. This header supports up to 50 mating cycles, providing robustness for repeated usage during assembly and maintenance operations. Additionally, it is suitable for soldering temperatures up to 260°C, compatible with wave soldering processes.

Applications for this Molex SL Series PCB Header include use in automation equipment requiring dependable electrical connections, consumer electronics with intricate wiring needs, and mechanical assemblies that demand robust wire-to-board interfaces. Its combination of reliable electrical performance, durability, and protective shrouding makes it a preferred choice across various electronics and electrical engineering fields.

Choose Molex SL Series 70553-0001 for high-performance PCB header solutions in laboratory, manufacturing, industrial automation, and commercial electronics contexts. The connector features a right-angle orientation supporting space-saving PCB layouts.

Shrouded design enhances connector protection and reliability in compact applications. Gold-plated phosphor bronze contacts improve conductivity and corrosion resistance. Rated for 3A current and 250V voltage to ensure consistent electrical performance.

Constructed from durable thermoplastic housing material for lasting use. Suitable for mounting on PCBs with recommended thickness of 1.60 mm. The tail pins measure 3.3 mm and mating pins 6.1 mm for secure connections. Supports up to 50 mating cycles for reliable repeated insertions and removals.

Maximum operating temperature is 105°C with solder termination type compatible with through-hole wave soldering processes. Explore the complete range of PCB Headers at EnvMart for professional electronic and electrical solutions.
