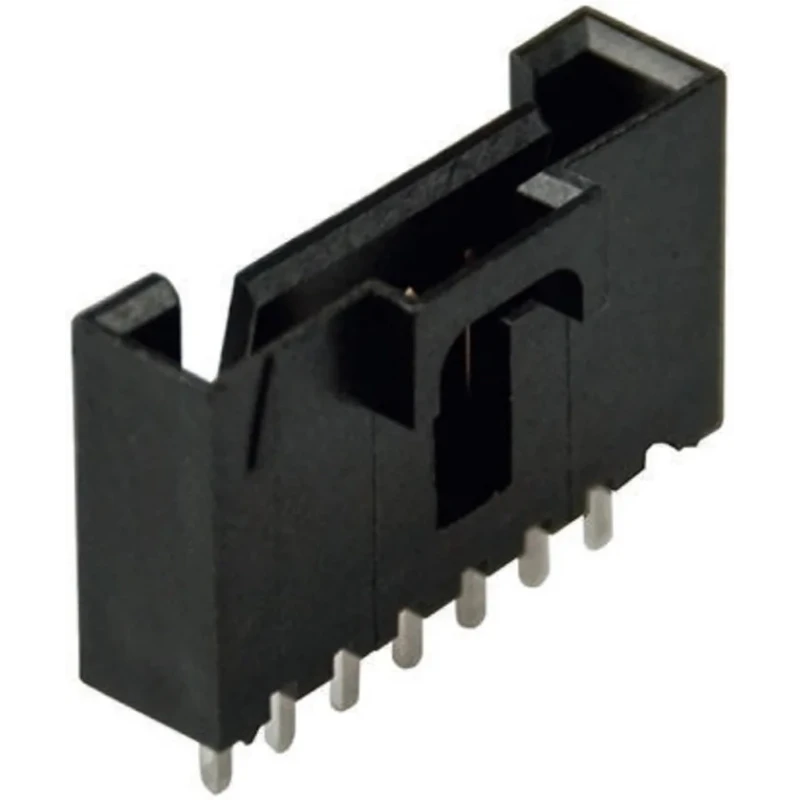

Molex SL Series Straight Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 70543-0005
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
| Mating Pin Length | 6.1mm |
Key Features
- Features 6 gold-plated phosphor bronze contacts for excellent conductivity.
- Constructed with a glass filled polyester housing for durability.
- Designed as a wire-to-board connector with through-hole mount type.
- Operates efficiently within the temperature range of -40°C to 105°C.
- Supports a voltage rating of 250V and current rating of 3A.
- Includes a male contact gender with 3.3 mm tail pin length and 6.1 mm mating pin length.
- Shrouded orientation with a straight row pitch of 2.54 mm enhances protection and alignment.
- Manufactured in the United States ensuring quality standards.
Product Description
The Molex 70543-0005 is a SL Series Straight Through Hole PCB Header designed for robust and reliable electronic connections on printed circuit boards. Featuring 6 gold-plated contacts made of phosphor bronze, the connector provides excellent conductivity and durability for demanding applications. Its glass filled polyester housing offers resilience and protection, making it suitable for various industrial and commercial electronics assembly.
Engineered as a wire-to-board connector, this through-hole mount header ensures secure mechanical and electrical connections. The shrouded design improves safety and alignment during assembly, reducing connection faults. Operating reliably across a wide temperature range from -40°C to 105°C, it is ideal for rugged environments and temperature variable applications.
Its technical specifications include a 2.54 mm pitch spacing within a single row configuration, supporting an electrical rating of 250 volts and a current capacity of 3 amperes. The male contact gender features a 3.3 mm tail pin length and 6.1 mm mating pin length, allowing compatibility with corresponding connectors such as Molex 70600G and 70600N series.
This connector is widely used in industrial, commercial, and manufacturing electronic components, particularly for PCB assembly and repair operations requiring high-quality connector systems. Its US origin underscores stringent manufacturing quality and compliance.
6 gold-plated phosphor bronze contacts ensure excellent conductivity. Glass filled polyester housing offers toughness and reliability. Wire-to-board configuration with through-hole mounting for secure attachment. Shrouded body enhances mating alignment and protection.
Wide temperature operation range from -40°C to 105°C. Rated for 250V and 3A operation making it suitable for moderate power circuits. Male contact type with specified tail and mating pin lengths improves compatibility. Manufactured in the United States, ensuring quality assurance and reliability.
Explore more high-quality PCB Headers and connectors on EnvMart for your electronics and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header has a voltage rating of 250V and a current rating of 3A.
It operates efficiently within a temperature range of -40°C to 105°C.
The housing is made of glass filled polyester, and the contacts are made of gold-plated phosphor bronze.
This model features 6 contacts.
The pitch size of this connector is 2.54 mm.
It is designed for through-hole mounting.
This connector has a male contact gender.
The tail pin length is 3.3 mm.
The mating pin length is 6.1 mm.
This model is shrouded, enhancing protection and alignment.
It is manufactured in the United States, ensuring quality standards.
It is widely used in industrial, commercial, and manufacturing electronic components, particularly for PCB assembly and repair operations.
