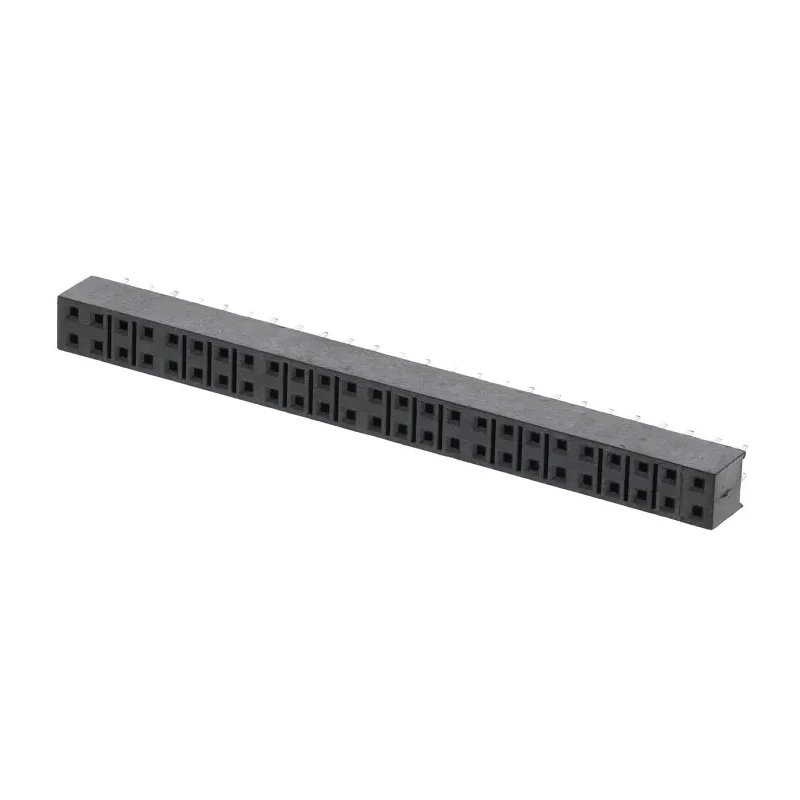

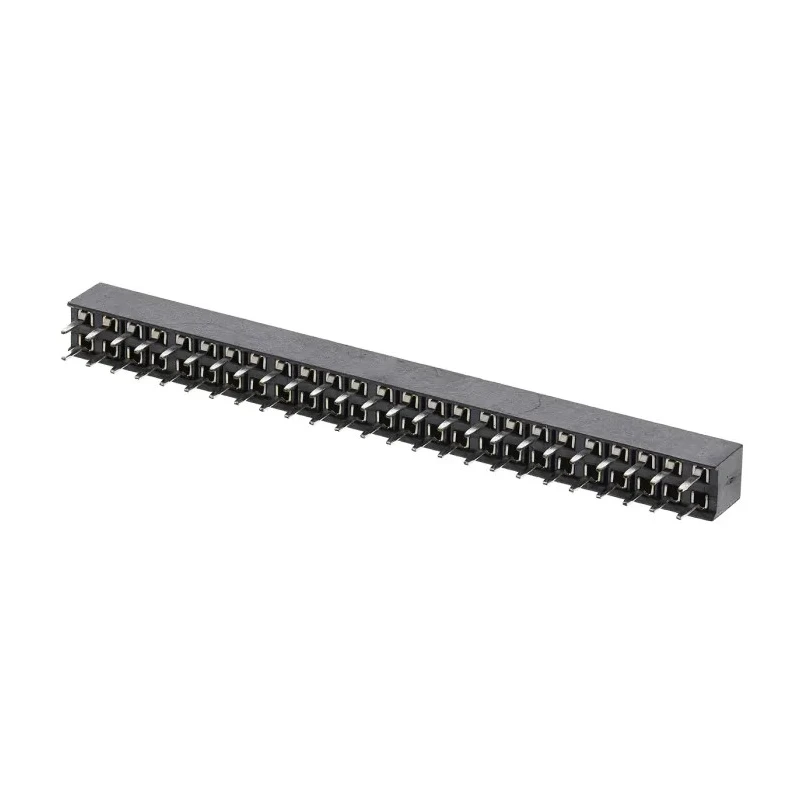

HARWIN M22 Series 2 mm Pitch Straight Through Hole PCB Socket, 50-Contact, 2 Row, 12A, 500V M22-7142542
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7142542 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| 25 way 2 row vertical PCB skt,2mm pitchBrand | Harwin |
Key Features
- Compact design ensures efficient PCB density and height optimization.
- Constructed with UL94V-0 high temperature Liquid Crystal Polymer housing for durability.
- Gold plated bronze contacts provide robust electrical performance.
- Supports current rating up to 12A per contact and voltage rating of 500V.
- Designed for through hole mounting with straight orientation for solder termination.
- Operates reliably between -25°C and 105°C temperature range.
- Dual beam contact design enhances connection reliability and allows up to 300 mating cycles.
- Suitable for embedded PCs, motherboards, and large electronic systems.
Product Description
HARWIN M22-7142542 is a 2 mm pitch straight through hole PCB socket designed with 50 contacts distributed in 2 rows, supporting board-to-board connectivity with high quality and compact form factor.
The housing is manufactured from UL94V-0 rated Liquid Crystal Polymer, offering excellent thermal resistance and suited for common reflow soldering processes. The bronze contacts plated with gold ensure superior electrical connection and durability over extended use.
This PCB socket supports a current rating of 12A per contact and a voltage rating of 500V, operating reliably within temperatures from -25°C to a maximum of 105°C. The dual beam contact design enables enhanced reliability and withstands up to 300 mating cycles, ensuring durability in demanding industrial and commercial environments.
Mounting is through hole type with a straight orientation to facilitate secure solder termination on circuit boards. This M22 series socket is widely used in embedded computer systems, motherboards, and large electronic assemblies, catering to applications across consumer electronics, telecommunications, drive controls, and industrial monitoring.
Compact design for increased PCB density and height restrictions. High temperature thermoplastic housing UL94V-0 rated. Gold plated dual beam bronze contacts for reliability. Through hole mount with straight orientation.
Operating temperature range: -25°C to 105°C. Current rating of 12A per contact and voltage rating of 500V. Up to 300 mating operations endurance. Suitable for a wide range of electronic and industrial applications.
HARWIN is known for precision connectors used in demanding industrial and commercial electronics sectors. This M22 Series PCB socket supports robust electrical performance and mechanical durability ensuring longevity and reliable signal transmission.
Explore more from the PCB Sockets category to find compatible connectors and accessories for your projects and applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A per contact.
The voltage rating for the M22-7142542 is 500V.
It operates reliably between -25°C and 105°C.
This PCB socket features 50 contacts distributed in 2 rows.
The housing is made from UL94V-0 rated Liquid Crystal Polymer, and the contacts are bronze plated with gold.
It is designed for through hole mounting with a straight orientation for solder termination.
The contact pitch in this model is 2 mm.
The dual beam contact design allows for up to 300 mating cycles.
It is suitable for embedded PCs, motherboards, and large electronic systems, among other applications.
The termination type for the M22-7142542 is solder.
This socket is designed for board-to-board connectivity.
The country of origin for this product is India.
