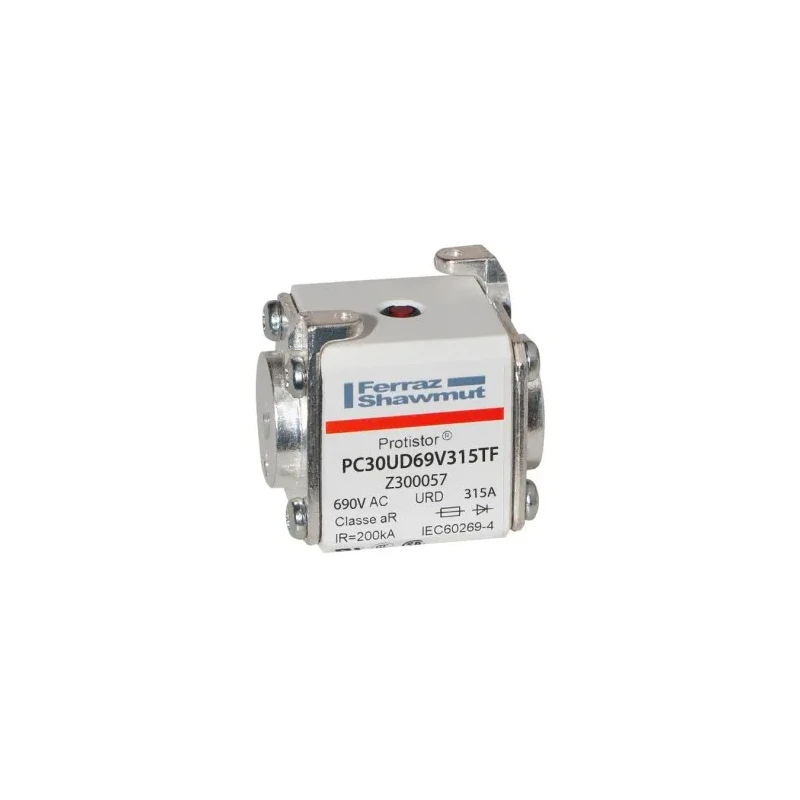

Mersen 315A Size 30 FF Square Body Fuse 700V Z300057 / PC30UD69V315TF
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 700V |
| Brand | Mersen |
| Height | 46.5mm |
| Length | 40mm |
| Model | Z300057 / PC30UD69V315TF |
| Width | 50.6mm |
| Overall Length | 82mm |
| Current Rating | 315A |
| Fuse Size | 30 |
Key Features
- Rated for 315A current and 700V voltage capacity.
- FF fuse speed ensuring ultra-rapid operation for semiconductor protection.
- High rupture capacity with a breaking capacity of 200kA at 660Vac.
- Square body design with overall length of 82mm for reliable installation.
- Includes striker for micro-contact actuation and threaded fixing studs for secure mounting.
- Complies with VDE636-23 and IEC269-4 standards for quality assurance.
- Constructed to withstand industrial and electrical automation environments.
Product Description
Mersen Z300057 / PC30UD69V315TF is a 315A size 30 FF square body fuse rated for 700V applications. This Protistor® fuse type offers fast fuse (FF) operation designed for semiconductor protection with ultra-rapid tripping capabilities. It features a square body form factor with an overall length of 82mm, width of 50.6mm, and height of 46.5mm, making it suitable for compact fuse holders.
The fuse has a high rupture capacity and can safely interrupt fault currents up to 200kA at 660Vac, providing robust protection in industrial, electrical automation, manufacturing, and power distribution systems. It includes a striker for micro-contact actuation ensuring reliable triggering and threaded fixing studs for secure and vibration-resistant fixing.
This fuse complies with VDE636-23 and IEC269-4 international standards, assuring quality and performance. Manufactured in Mexico, it is ideal for demanding electrical protection in industrial environments.
Rated current: 315A for high-capacity circuit protection. Voltage rating of 700V suitable for medium voltage applications. Size 30 square body form factor with precise dimensions for compatibility. High rupture capacity of 200kA ensures operational safety during faults.
Ultra-rapid operation (FF speed) for semiconductor protection. Includes striker for precise micro-contact actuation. Threaded fixing studs for secure mounting and durability.
This fuse is extensively used in electrical and industrial automation, semiconductor protection, and distribution boards. Mersen products offer reliable quality for demanding electrical environments.
Explore more from the Circuit Breakers & Fuse category at EnvMart for high-quality Fuses and related electrical protection devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 315A, making it suitable for high-capacity circuit protection.
It is rated for a voltage capacity of 700V, which is suitable for medium voltage applications.
The fuse has a high rupture capacity with a breaking capacity of 200kA at 660Vac, providing robust protection during faults.
The overall dimensions are 82mm in length, 50.6mm in width, and 46.5mm in height, making it compatible with compact fuse holders.
It features ultra-rapid operation (FF speed), designed specifically for semiconductor protection with fast tripping capabilities.
Yes, it includes a striker for micro-contact actuation and threaded fixing studs for secure mounting.
It complies with VDE636-23 and IEC269-4 standards, ensuring quality and performance in its applications.
This fuse is manufactured in Mexico, suitable for demanding electrical environments.
It is extensively used in electrical and industrial automation, semiconductor protection, and distribution boards.
This model is classified as a Size 30 square body fuse, which is designed for specific compatibility requirements.
The overall length of this fuse is 82mm, which aids in reliable installation.
The striker is included for micro-contact actuation, ensuring reliable triggering of the fuse during operation.
