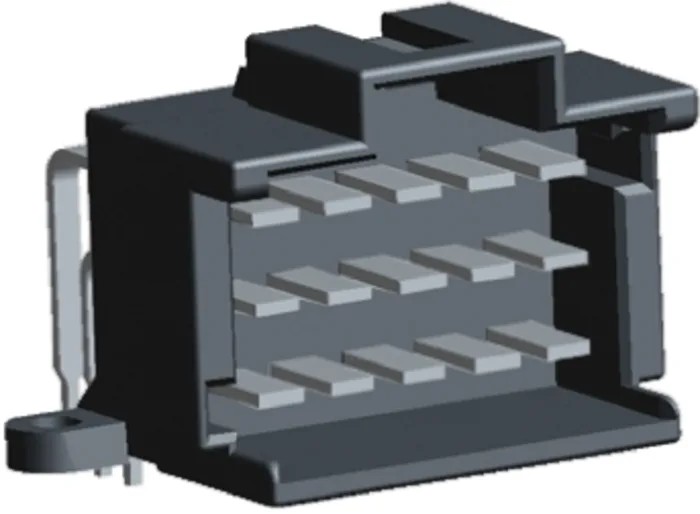

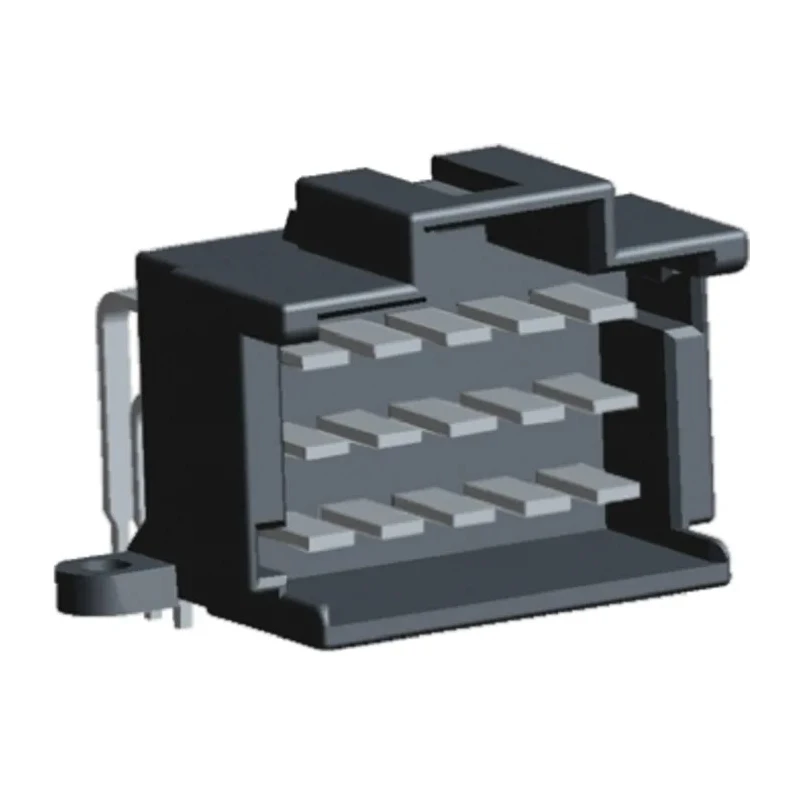

TE Connectivity Timer Automotive Connector Male Black Through Hole 15 Way Solder Termination 3-966140-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 26.2mm |
| Width | 20.3mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | Timer |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 3 |
| Standards/Approvals | RoHS |
| Contact Plating | Silver |
| Number of Contacts | 15 |
Key Features
- The connector features 15 contacts arranged in 3 rows for reliable signal transmission.
- It has a black polyamide housing that ensures durability and insulation.
- The male gender connector uses solder termination and mounts through-hole for PCB integration.
- Operates efficiently within a temperature range of -65°C to 105°C.
- Contacts are made of phosphor bronze with silver plating for excellent conductivity and corrosion resistance.
- It conforms to RoHS standards, ensuring eco-friendly and safe usage.
- The compact dimensions of 26.2mm height and 20.3mm width enable space-saving installation.
- This timer series connector is ideal for automotive electrical systems, providing stable connections under harsh conditions.
Product Description
TE Connectivity 3-966140-2 Timer Automotive Connector Male Black Through Hole 15 Way Solder Termination is a high-performance connector designed for automotive electrical applications. Featuring 15 reliable contacts arranged over 3 rows within a robust black polyamide housing, it ensures secure signal and power transmission under demanding conditions.
Its solder termination type and through-hole mount facilitate effective printed circuit board integration. The connector operates reliably across a wide temperature range from -65°C to 105°C, making it suitable for varied automotive environments.
The contacts are crafted from phosphor bronze and plated with silver, providing excellent conductivity and resistance to corrosion, thus enhancing connector longevity. Compliance with RoHS directives assures environmental safety.
The connector measures 26.2mm in height and 20.3mm in width, enabling compact and space-efficient installations in automotive electrical systems. This product is part of TE Connectivity's Timer series, known for durability and precise electrical performance.
It is appropriate for use in automotive manufacturing, repair, and electrical system assembly, supporting stable and dependable connections required in automotive electronics, power distribution, and control systems.
The connector features 15 contacts arranged in 3 rows for reliable signal transmission. It has a black polyamide housing that ensures durability and insulation. The male gender connector uses solder termination and mounts through-hole for PCB integration.
Operates efficiently within a temperature range of -65°C to 105°C. Contacts are made of phosphor bronze with silver plating for excellent conductivity and corrosion resistance. It conforms to RoHS standards, ensuring eco-friendly and safe usage.
The compact dimensions of 26.2mm height and 20.3mm width enable space-saving installation. This timer series connector is ideal for automotive electrical systems, providing stable connections under harsh conditions. Explore the electronics components section on EnvMart to discover more Automotive Connectors by TE Connectivity and other advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 105°C.
This model features 15 contacts arranged in 3 rows.
It uses solder termination for secure connections.
The contacts are made of phosphor bronze and are plated with silver for enhanced conductivity and corrosion resistance.
The connector has a height of 26.2mm and a width of 20.3mm, allowing for compact installation.
The housing is made of black polyamide, which provides durability and insulation.
Yes, it conforms to RoHS standards, ensuring eco-friendly usage.
The minimum operating temperature is -65°C, making it suitable for harsh environments.
It is designed for through-hole mounting, facilitating integration with printed circuit boards.
This connector is part of the Timer series by TE Connectivity, known for its performance in automotive applications.
It is ideal for automotive electrical systems, providing stable connections in power distribution and control systems.
The connector is black in color, which is typical for many automotive connectors.
