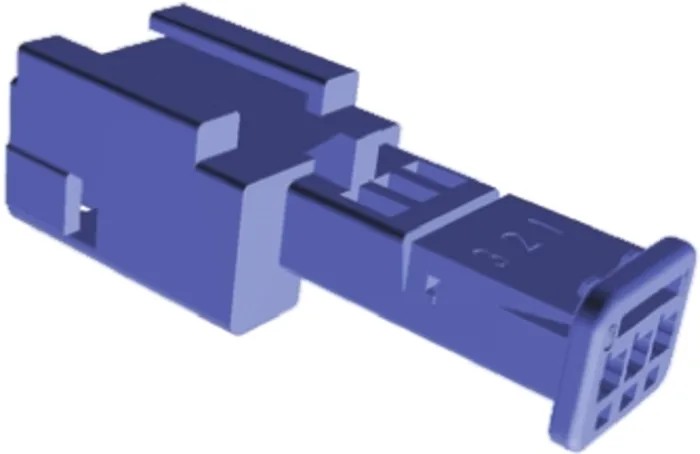

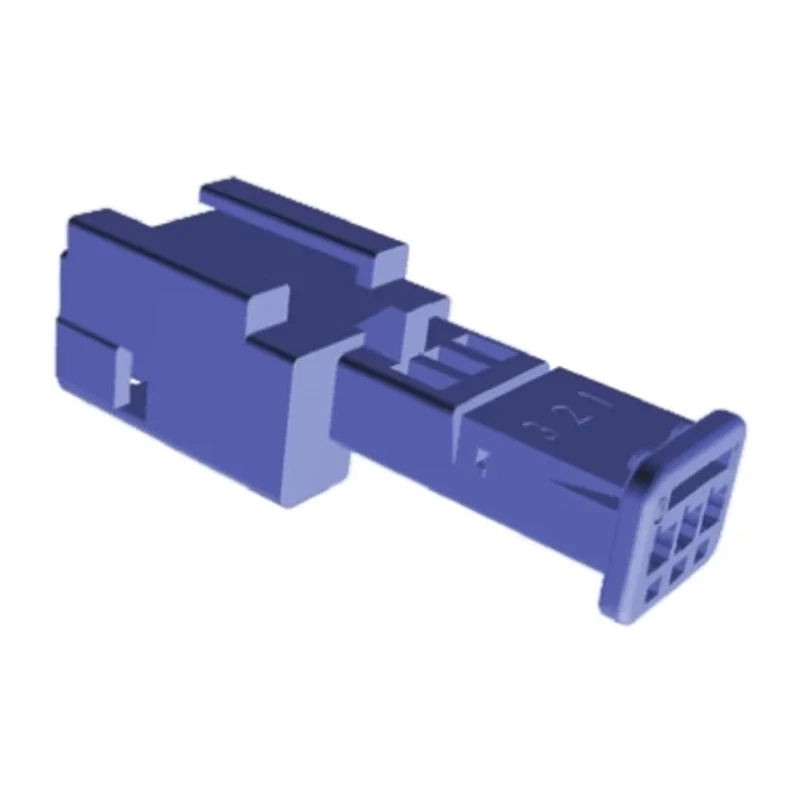

TE Connectivity Micro Quadlok System Automotive Connector Male Blue Cable 3 Way Crimp Termination 953698-3

TE Connectivity 953698-3 Micro Quadlok System Automotive Connector Male Blue Cable 3 Way Crimp Termination is engineered for demanding automotive electrical systems requiring compact and robust connector housings.

This connector housing is fabricated from Polybutylene Terephthalate, providing excellent durability and resistance to automotive environmental factors. It features a 3-contact configuration with a 2.54 mm pitch, supporting high-density wiring harnesses. Designed for cable mounting, it allows secure crimp termination of male contacts with stainless steel locking lances ensuring strong terminal locking force within the housing.

The connector’s blue coloration aids easy identification within complex automotive assemblies. It operates reliably in a temperature range from -40°C up to 85°C, suitable for powertrain, safety, convenience, and body system applications. The single row configuration and compact dimensions (33.7 mm depth, 13.9 mm width, and 10.4 mm height) optimize space utilization on automotive wiring looms.

Additional design features include polarization and keying options to prevent incorrect mating, with sealed versions available separately to provide waterproof connections when required. Accessories such as covers, levers, and retainer housings are also compatible with this series, enhancing installation flexibility.

These connectors comply with general automotive industry requirements although no specific formal standards or approvals are listed. They are essential components in modern automotive electrical connector systems, ensuring secure, high-integrity signal and power transmission.

The connector has 3 contacts designed for high-density connections. It features a blue polybutylene terephthalate housing for durable protection. Termination is by crimp method for secure cable attachment. Operating temperature range is from -40°C to 85°C ensuring performance in harsh environments.

The 2.54mm pitch and single row design enable compact installation in automotive systems. The connector includes polarization and keying options to prevent mismating. It offers integral primary terminal locking force for firm contact retention.

The cable mount design supports easy wiring integration without included cord. The compact dimensions are 33.7mm depth, 13.9mm width, and 10.4mm height. Sealed versions are available separately for waterproof applications.

Ideal for automotive industry professionals, electrical engineers, and manufacturers seeking robust connectors for powertrain, safety, and body electronics systems. This product is part of the comprehensive TE Connectivity Micro Quadlok System lineup, noted for reliability and compact design.
