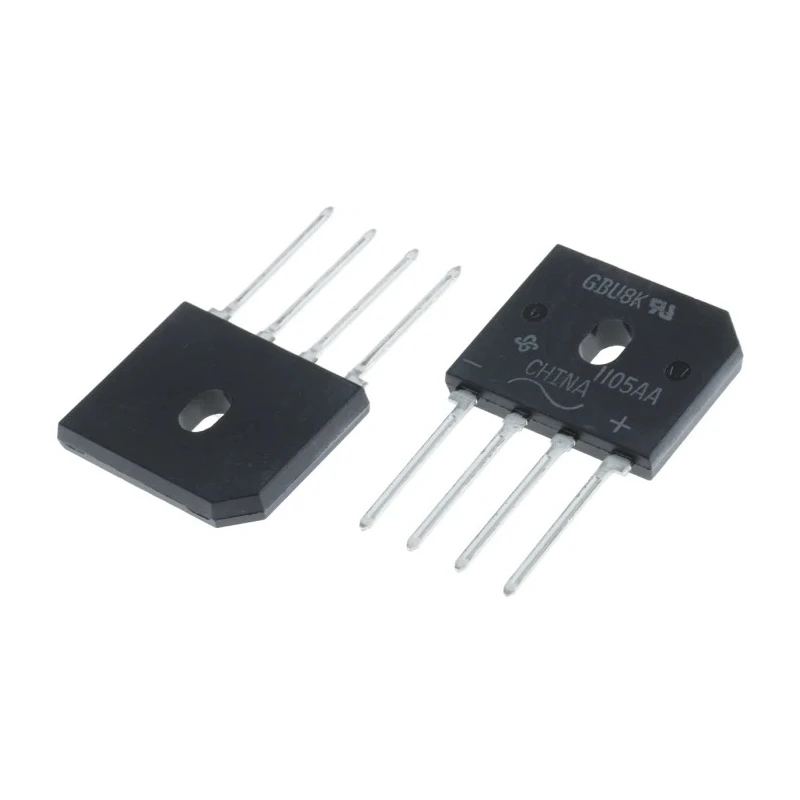

onsemi Bridge Rectifier, Through Hole Mount, 800 V Peak Reverse Voltage, 200 A Surge Current, 4-Pin Single GBU8K

Free Delivery in India | Lowest Global Shipping Charges

onsemi Bridge Rectifier, Through Hole Mount, 800 V Peak Reverse Voltage, 200 A Surge Current, 4-Pin Single GBU8K

Name: onsemi Bridge Rectifier, Through Hole Mount, 800 V Peak Reverse Voltage, 200 A Surge Current, 4-Pin Single GBU8K
Brand: onsemi
SKU: 207424
Price: 1.41 USD
Availability: InStock



Category Bridge Rectifier Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	18.8mm
Length	22.3mm
Model	GBU8K
Width	3.56mm
Mount Type	Through Hole
Series	GBU8K
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V

Key Features

Peak reverse repetitive voltage of 800 V ensures robust operation in power conversion circuits.
Forward current rating of 8 A supports steady electrical flow in circuits.
Peak non-repetitive forward surge current of 200 A handles transient high current events.
Operating temperature range from -55°C to 150°C accommodates demanding thermal environments.
Compact dimensions of 22.3 mm length, 18.8 mm height, and 3.56 mm width enable efficient PCB mounting.
Configured as a single-phase bridge rectifier with GBU package type designed for PCB through hole installation.
Glass passivated with wire lead structure for durability and reliable electrical connectivity.
Low peak forward voltage of 1 V enhances energy efficiency in applications.

Product Description

The onsemi GBU8K Bridge Rectifier is a single-phase, 4-pin single configuration device designed for through hole mounting in printed circuit boards. Featuring a peak reverse repetitive voltage of 800 V and forward current capability of 8 A, it serves critical roles in power electronics applications requiring reliable rectification.

Its glass passivated construction and compact GBU package with wire lead structure provide high durability and easy installation. The component supports high surge current up to 200 A for transient conditions, making it suitable for industrial, electronic equipment, and power supply manufacturing settings.

Operating effectively within a temperature range of -55°C to 150°C, the rectifier withstands harsh operating environments. Precise physical dimensions (22.3 mm length, 18.8 mm height, 3.56 mm width) ensure compatibility with standard PCB layouts and assembly processes.

Applications include rectification in power converters, industrial machinery power modules, and electronic component assemblies where reliability and electrical performance are paramount.

Peak reverse repetitive voltage of 800 V. Forward current rating of 8 A. Peak surge current capacity of 200 A. Wide operating temperature from -55°C to 150°C. Compact GBU package and 4-pin configuration. Glass passivated for electrical stability.

Low forward voltage drop of 1 V. Low leakage current at peak reverse current 50 μA.

This Bridge Rectifier's specifications make it an excellent choice for industrial manufacturing, power supply equipment, electronics manufacturing, and laboratory power devices. The product ensures efficient and durable performance in demanding electronic circuits.
