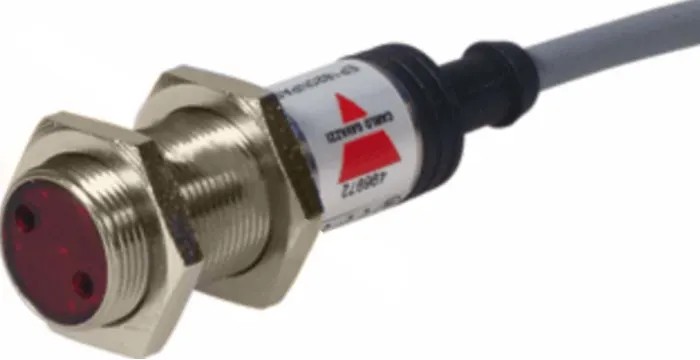

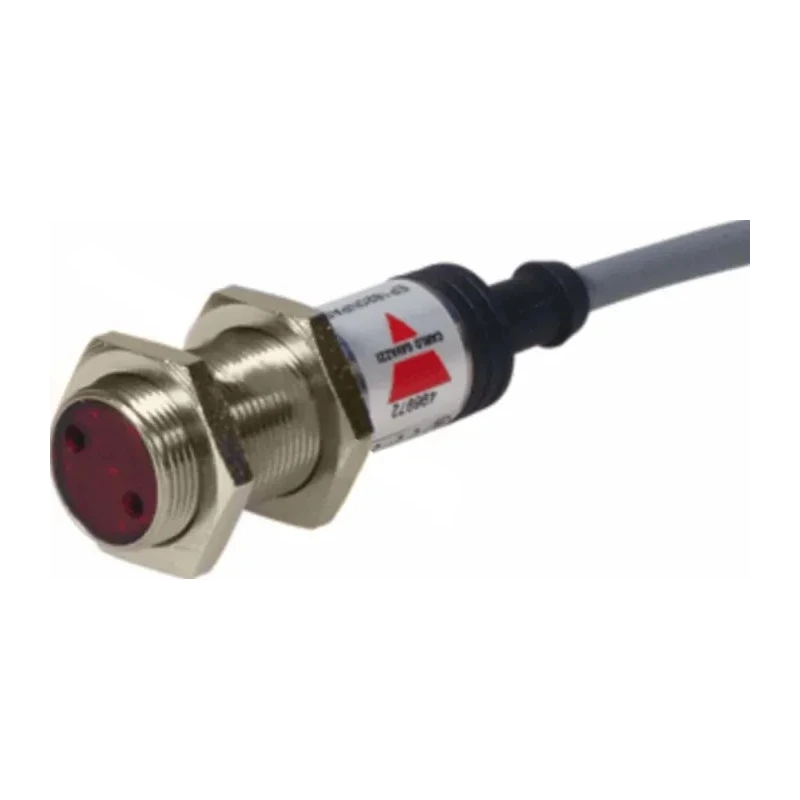

Carlo Gavazzi Diffuse Photoelectric Sensor Barrel Style 400 mm Detection Range PNP Output IP67 EO1804PPAS
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 200 mA NPN or PNP |
| Range | 400 mm adjustable |
| Brand | Carlo Gavazzi |
| Response time | 3.2ms |
| Light Source | LED |
| Detection range | 400 mm |
| Model | EO1804PPAS |
| IP Rating | IP67 |
| Housing Material | Metal |
| Output type | PNP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 20mA |
| DetectIon Type | Diffuse |
| Terminal type | Cable |
| Protection | Reverse polarity, short-circuit, transients |
| Supply Voltage | 10 to 40 V dc |
| Maximum dc Voltage | 40V dc |
| Standards/Approvals | UL, CSA, IEC |
| Sensor Style | Barrel |
Key Features
- Robust M18 metal housing with IP67 protection rating.
- Adjustable detection range up to 400 mm with a 270° potentiometer.
- Operates on 10 to 40 V DC supply voltage with 20 mA max current.
- PNP 4-wire complementary output supporting NO and NC switching.
- Modulated infrared LED light source for diffuse reflective sensing.
- High immunity to ambient light interference.
- Built-in protection against reverse polarity, short circuits, and transients.
- Fast response time of 3.2 milliseconds.
Product Description
The Carlo Gavazzi EO1804PPAS Diffuse Photoelectric Sensor is a barrel-style industrial sensor designed for precise detection up to 400 mm range. The sensor comes in a heavy-duty M18 metal housing rated IP67 for protection against dust and water ingress, making it suitable for harsh industrial conditions.
This sensor utilizes modulated infrared LED light to detect objects by diffuse reflection, making it highly resistant to ambient light interference. It operates reliably over a voltage supply range of 10 to 40 V DC and supports a maximum current of 20 mA.
The output features a 4-wire complementary configuration with PNP (current sourcing) output, allowing both normally open and normally closed switching functions. The output current rating is 200 mA, supporting a variety of industrial load requirements.
The detection range is adjustable via a 270° single-turn potentiometer, enabling fine-tuning of the sensing distance for specific applications up to a maximum of 400 mm detection distance.
The sensor offers built-in protections including reverse polarity safeguard, short circuit, and transient resistance, enhancing its durability and operational reliability in industrial environments.
With a response time of 3.2 ms, the EO1804PPAS is suitable for automation, manufacturing, and control gear systems requiring fast and accurate object detection.
Designed to operate within a temperature range of -20°C to 60°C, this device supports varied environmental conditions. The robust construction and compliance with UL, CSA, and IEC standards further underscore its suitability for industrial automation, manufacturing process control, and machine safety applications.
Manufactured in Lithuania, this sensor is ideal for industrial, laboratory, manufacturing, HVAC, and automation use cases where dependable photoelectric sensing is required. This product contains a single Carlo Gavazzi EO1804PPAS Diffuse Photoelectric Sensor with cable terminal type.
Explore more sensors and industrial automation products to enhance your system reliability and precision at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is adjustable up to 400 mm.
It features a PNP output with a maximum current rating of 200 mA, supporting both normally open and normally closed switching functions.
This model operates on a supply voltage range of 10 to 40 V DC.
The response time of the Carlo Gavazzi EO1804PPAS is 3.2 milliseconds.
The sensor has an IP67 protection rating, making it resistant to dust and water ingress.
It can operate within a temperature range of -20°C to 60°C.
It utilizes a modulated infrared LED light source for diffuse reflective sensing.
The housing is constructed from metal, providing robustness for industrial applications.
It includes protections against reverse polarity, short circuits, and transients.
This sensor complies with UL, CSA, and IEC standards.
The detection range can be adjusted using a 270° single-turn potentiometer.
This product is manufactured in Lithuania.
