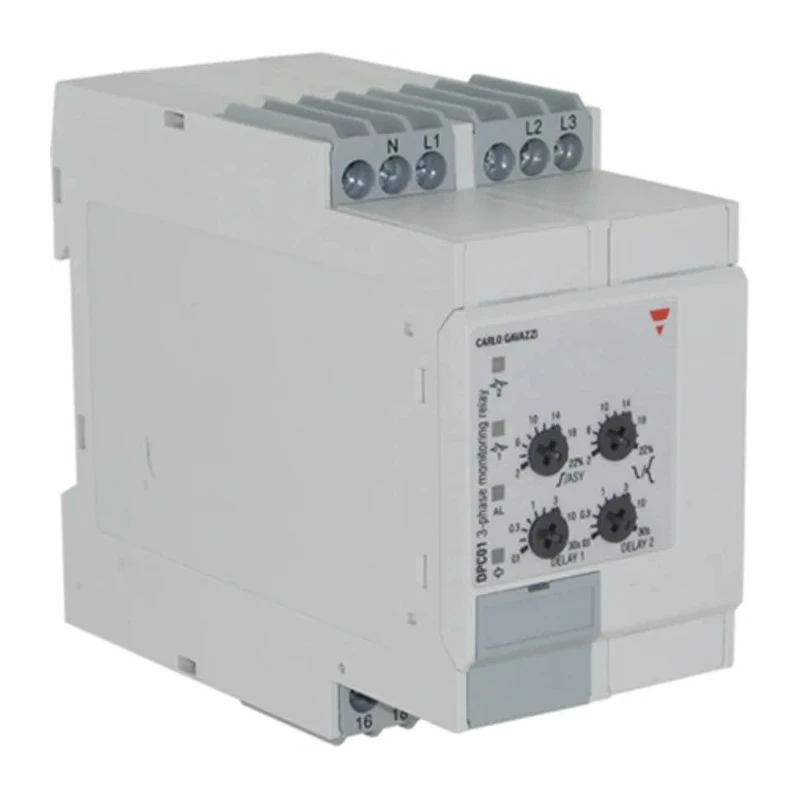

Carlo Gavazzi 3 Phase 510/793 V AC Monitoring Relay, SPDT Contact, DIN Rail Mount, 600V AC, 690 V AC, 24 V DC DPC01DM69400HZ

Carlo Gavazzi DPC01DM69400HZ is a multifunction monitoring relay designed for three-phase voltage monitoring with a range of 510/793 V AC. It features SPDT contact configuration and is mounted on a DIN rail, facilitating easy integration into electrical panels. The device is rated for supply voltages of 24 V DC and AC voltages of 600 V and 690 V, suitable for demanding industrial environments.

This monitoring relay offers comprehensive detection capabilities including phase sequence verification, phase loss, asymmetry detection, as well as under and over voltage protection, each with independent adjustable set points for enhanced customization. The adjustable delay function allows tailored response times between 0.1 and 30 seconds, providing flexibility in control applications.

LED indicators provide clear visual feedback on relay status, alarms, and power supply conditions, enabling swift diagnostics and system monitoring. The device features a robust SPDT contact rated for 8 A, ensuring reliable switching performance. Screw terminal connections support secure and stable electrical installation.

Compact in size with dimensions of 99.5 mm length, 80 mm height, and 45 mm width, the relay fits efficiently within standard DIN rail assemblies in electrical enclosures. Its IP20 rating ensures protection against solid ingress, suitable for indoor industrial environments.

Certified to international standards including EN 61000-6-3, CE, UL, EN 61000-6-2, IEC 60947, and compliant with RoHS directives, this relay guarantees high reliability and safety for automation systems, condition monitoring, and electrical distribution applications.

Originating from Italy, the Carlo Gavazzi DPC01DM69400HZ relay is an ideal solution for industrial control panels, manufacturing equipment, HVAC systems, and other critical applications requiring precise electrical parameter monitoring.

Monitors three-phase voltage with detection of phase asymmetry and sequence. Adjustable settings for under/over voltage with separate thresholds. SPDT contact configuration for versatile switching needs. Durable DIN rail mount design for easy panel installation.

LED indication for easy status monitoring and diagnostics. 8 A contact current rating for robust electrical switching. Complies with multiple international electrical and safety standards. Compact dimensions make it suitable for tight panel spaces.
