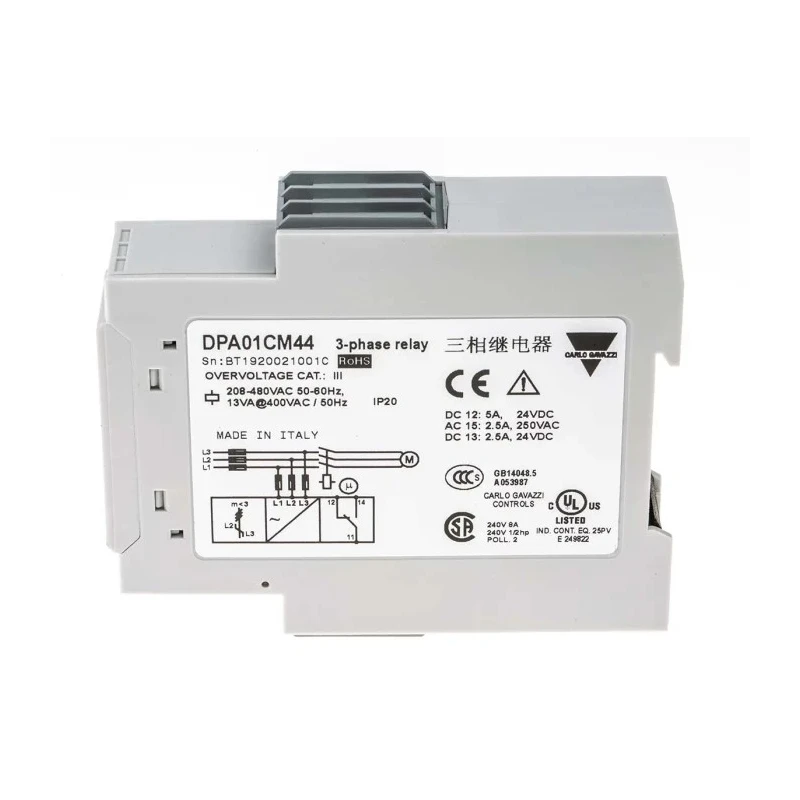

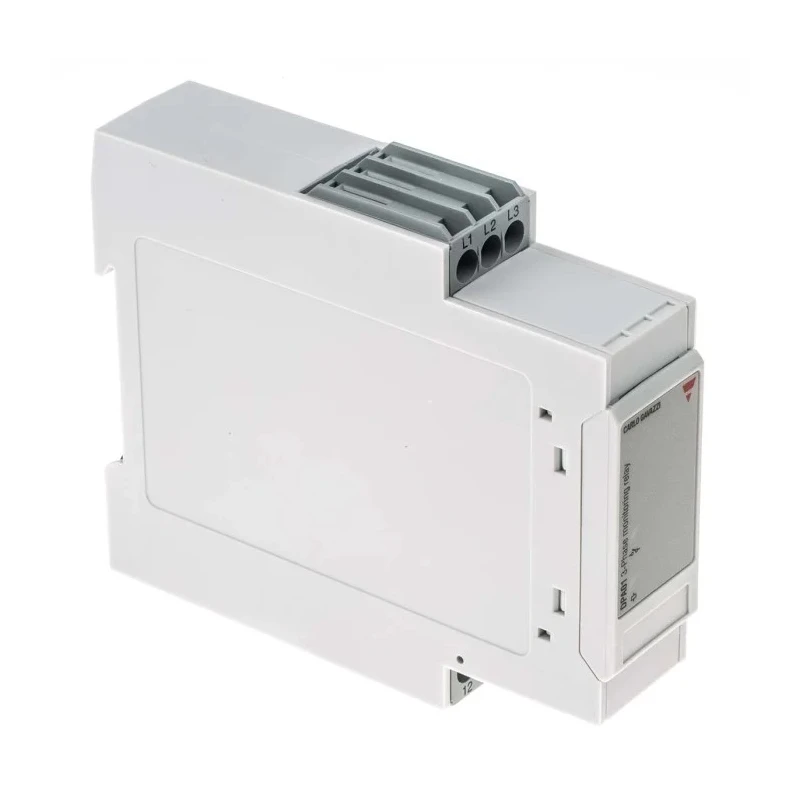

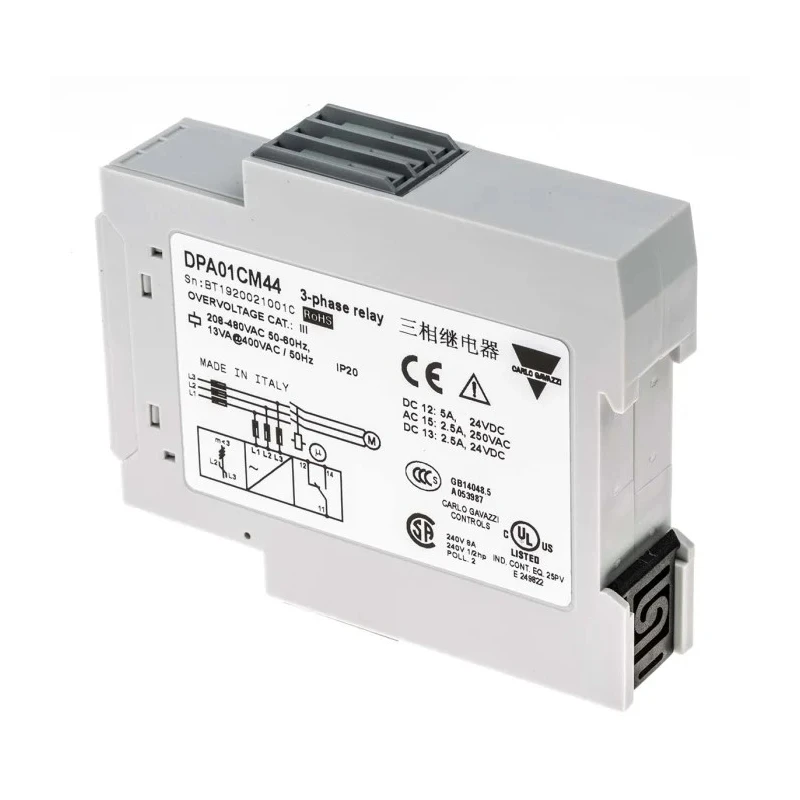

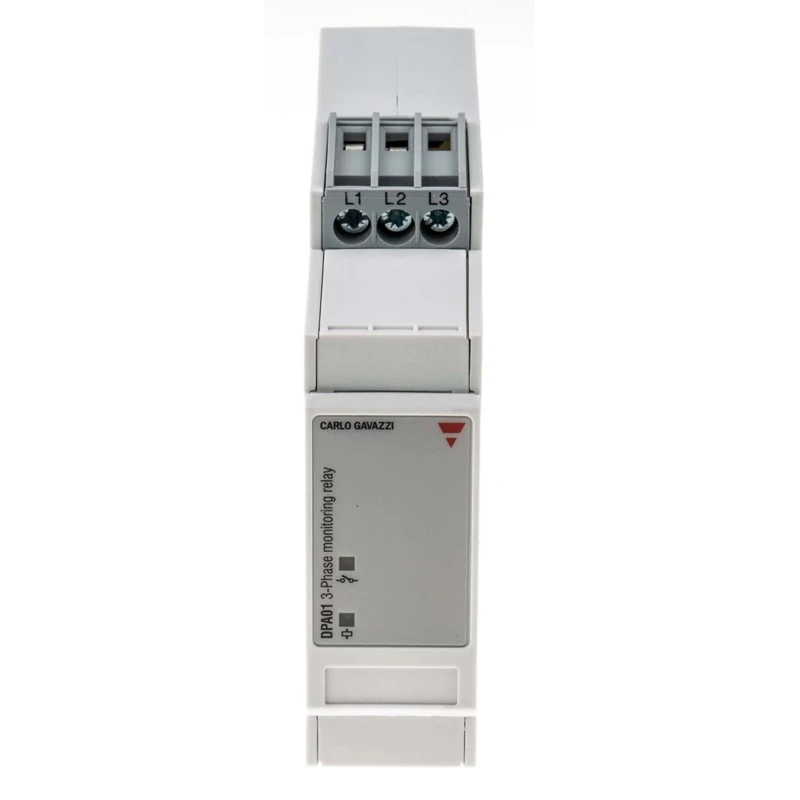

Carlo Gavazzi 3 Phase Monitoring Relay 177/550 V AC Monitor Range SPDT Contact DIN Rail Mount DPA01CM44

Carlo Gavazzi DPA01CM44 is a high-precision 3-phase monitoring relay designed for electrical and automation applications requiring reliable phase sequence detection and voltage monitoring within a 177/550 V AC range. The relay features a single-pole double-throw (SPDT) contact configuration and mounts easily on DIN rails thanks to its compact dimensions of 99.5 mm length, 80 mm height, and 22.5 mm width.

Engineered to operate in industrial environments, the device supports a wide temperature range from -20°C to 60°C and adheres to various international standards such as EN 61000-6-3, IEC 60664, CSA, RoHS, IEC 60038, and UL EN 61000-6-2. This ensures compatibility with safety and electromagnetic compatibility requirements for advanced monitoring systems.

The relay uses screw terminals for secure and easy wiring connections. Its power consumption is minimized to enhance efficiency. The output relay delivers an 8 A current with a normally de-energized state, improving operational safety during fault conditions.

Carlo Gavazzi’s monitoring relay can also be utilized as 1-phase or 3-phase overcurrent Monitoring Relays when combined with suitable current transformers. The built-in latch function maintains the relay's ON status until manually reset, with LED indication signaling alarm and power supply status.

This product is well suited for use in industrial control panels, automation systems, electrical monitoring, HVAC systems, and manufacturing process control where reliable phase sequence and voltage detection is crucial. It supports panel mounting and meets rigorous electrical and environmental standards prevalent in heavy-duty electrical applications.

Supports 3-phase electrical monitoring applications. SPDT contact configuration allows versatile switching. Monitoring voltage range from 177 to 550 V AC ensures wide compatibility. Screw terminal type enables secure electrical connections.

Compact dimensions of 99.5mm length, 80mm height, and 22.5mm width fit standard DIN rails. Operating temperature range from -20°C to 60°C for reliable industrial use. Meets multiple international standards including EN 61000-6-3, IEC 60664, CSA, RoHS, IEC 60038, UL EN 61000-6-2.

Output relay is 8 A SPDT and normally de-energized for safety. IP20 rating provides protection against solid objects. Power consumption is low, suitable for efficient operations.

This monitoring relay by Carlo Gavazzi represents a dependable choice for demanding industrial electrical monitoring needs. Explore more products and solutions within the Relays & Contactors category at EnvMart for optimized automation performance.
