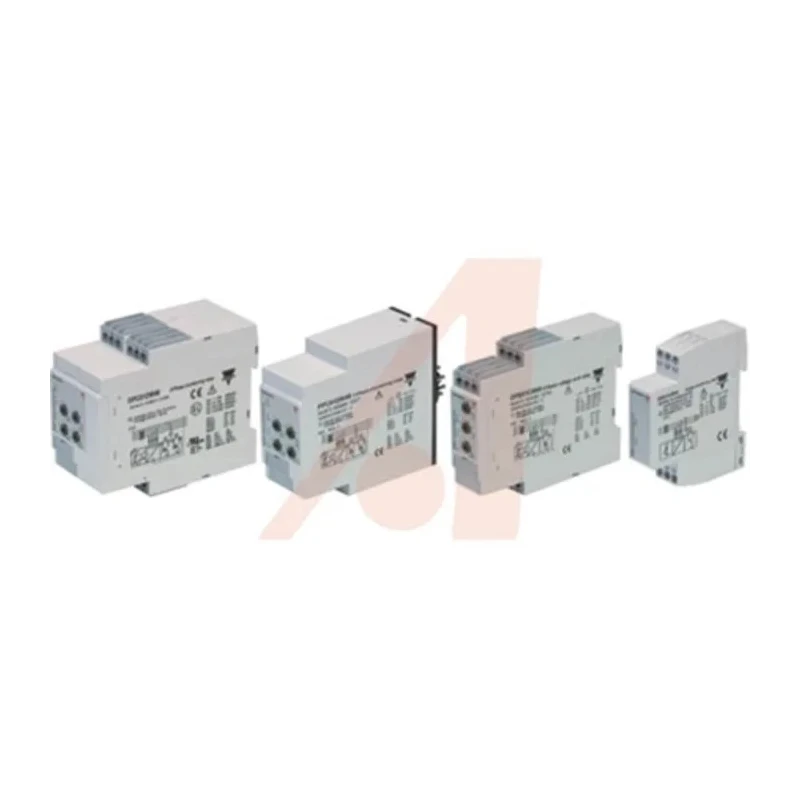

Carlo Gavazzi Monitoring Relay, 3 Phase, 177/275 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 208V AC, 480V DPC01DM23
Specifications
| Country of Origin | Italy |
|---|---|
| Output | 8 A SPDT relay normally de-energized |
| Brand | Carlo Gavazzi |
| Height | 80mm |
| Length | 99.5mm |
| Model | DPC01DM23 |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DPC01 |
| Measuring ranges | 2 to 20 VAC/DC, 5 to 50 VAC/DC |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Contact Current | 8A |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 208, 480V ac |
| Monitoring Voltage Range | 177/275 V ac |
Key Features
- Supports 3-phase electrical monitoring for industrial applications.
- Adjustable voltage monitoring range between 177 and 275 V AC.
- 8 A SPDT relay output with normally de-energized contact configuration.
- Compact DIN rail mount design with screw terminal connections.
- Built-in latch function maintains relay ON position upon alarm.
- LED indicators provide clear power and alarm status.
- Durable IP20 rated enclosure suitable for industrial environments.
- Measuring ranges selectable by DIP switches for versatile use.
Product Description
Carlo Gavazzi DPC01DM23 Monitoring Relay is a high-performance 3-phase relay designed for over voltage and over current monitoring in industrial and automation systems. With a monitoring voltage range of 177 to 275 V AC and output via an 8 A SPDT relay, this DIN rail mounted device supports supply voltages of 208 V AC, 480 V AC, and 24 V DC for versatile integration.
Featuring a robust design with screw terminal connections and an IP20 rating, the relay includes adjustable measuring ranges selected by DIP switches to tailor voltage and current monitoring from 2 to 500 VAC/DC. Its built-in latch function allows the relay output to retain the ON position when triggered, enhancing reliability in alarm situations.
The device includes clear LED indicators for power supply and alarm status to provide immediate visual feedback. Suitable for industrial, electrical automation, HVAC, manufacturing, and laboratory applications, this monitoring relay complies with key international standards including RoHS, UL EN 61000-6-2, CSA, and EN 61000-6-3 to ensure safety and performance.
Its compact dimensions (99.5 mm length, 45 mm width, 80 mm height) facilitate installation in control panels where space optimization is critical. The relay is manufactured in Italy, reflecting quality and precision engineering.
Supports 3-phase monitoring suitable for over current and over voltage applications. Wide voltage supply range with AC and DC compatibility. Adjustable voltage and current measuring ranges for custom applications. Latch function maintains relay activation on trigger events.
Clear LED indicators for power and alarm status. Compact DIN rail mount suitable for standard industrial enclosures. Durable IP20 rated enclosure protects against solid objects. Complies with global safety and quality standards.
Screw terminal type for secure and reliable wiring. Designed for long operational life in demanding environments.
For those looking for reliable, versatile monitoring relays for industrial control systems, the Carlo Gavazzi DPC01DM23 is an excellent choice within the Monitoring Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring voltage range of this model is adjustable between 177 and 275 V AC.
It provides an 8 A SPDT relay output with a normally de-energized contact configuration.
This unit supports supply voltages of 208 V AC, 480 V AC, and 24 V DC.
The relay has a height of 80 mm and a width of 45 mm.
The built-in latch function maintains the relay's ON position when an alarm is triggered, enhancing reliability during alarm situations.
The device has an IP20 rating, which protects against solid objects but not against water.
The maximum operating temperature for this model is 60°C.
It is designed for DIN rail mounting, facilitating installation in control panels.
This unit features screw terminal connections for secure and reliable wiring.
It is suitable for industrial, electrical automation, HVAC, manufacturing, and laboratory applications.
The dimensions of the relay are 99.5 mm in length, 45 mm in width, and 80 mm in height.
The contact current rating for this model is 8 A.
