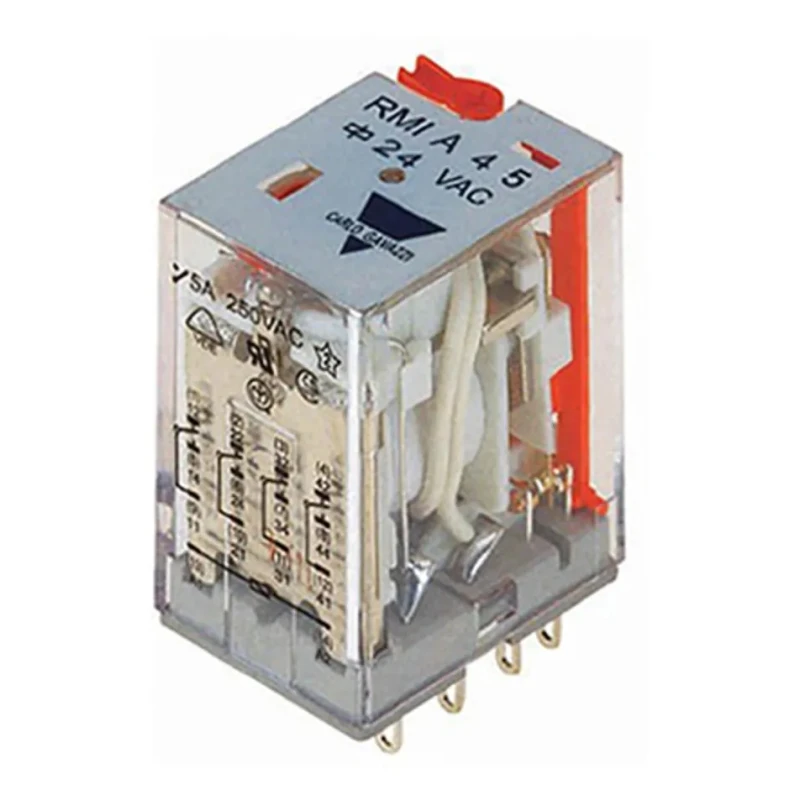

Carlo Gavazzi 24V AC Coil Power Relay, 5A Switching Current, 4PDT Contact Configuration RMIA4524AC

Free Delivery in India | Lowest Global Shipping Charges

Carlo Gavazzi 24V AC Coil Power Relay, 5A Switching Current, 4PDT Contact Configuration RMIA4524AC

Name: Carlo Gavazzi 24V AC Coil Power Relay, 5A Switching Current, 4PDT Contact Configuration RMIA4524AC
Brand: Carlo Gavazzi
SKU: 134689
Price: 9.58 USD
Availability: InStock



Category Power Relays Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	China
Brand	Carlo Gavazzi
Height	21.5mm
Length	28mm
Model	RMIA4524AC
Width	36mm
Contact Material	Silver Alloy
Series	RMI A45
Maximum Operating Temperature	70°C
Contact Configuration	4PDT
Minimum Operating Temperature	-55°C
Switching Current	5A
Terminal type	PCB Pin
Contact Resistance	50mΩ
Standards/Approvals	CSA, UL
Coil Resistance	650Ω
Coil Voltage	24V ac
Switching DC Voltage	30V dc
Switching AC Voltage	250V
Coil Power	1.2W
Switching Power	150W

Key Features

Equipped with a 24V AC coil ensuring efficient electromagnetic operation.
Supports a maximum switching current of 5 amperes for moderate power loads.
Features 4PDT (Four Pole Double Throw) contact configuration for versatile switching.
Robust construction with silver alloy contacts for enhanced durability.
Operation temperature range from -55°C minimum to 70°C maximum.
Low coil power consumption of 1.2 watts enabling energy efficiency.
Compact dimensions with length 28mm, width 36mm, and height 21.5mm.
High switching power rated at 150 watts, suitable for various industrial applications.

Product Description

Carlo Gavazzi RMIA4524AC is a high-performance power relay featuring a 24V AC coil and 5A switching current with a 4PDT contact configuration. This relay is engineered for reliable switching in industrial and residential automation systems. The relay boasts robust silver alloy contacts and is capable of handling a switching power up to 150 watts, making it suitable for demanding power relay applications.

The relay's coil resistance of 650 ohms and coil power of 1.2W contribute to efficient operation while minimizing energy consumption. It operates reliably in a wide ambient temperature range from -55°C to 70°C, supporting a variety of installation environments.

Compact in size with dimensions of 28mm length, 36mm width, and 21.5mm height, this relay is designed for PCB pin mounting, facilitating seamless integration into electronic assemblies. Carlo Gavazzi’s RMIA series is known for robust construction, reliability, and compliance with international standards such as CSA and UL ensuring safe and compliant usage.

This power relay is ideal for industrial control panels, automation equipment, HVAC systems, manufacturing processes, and other applications demanding dependable power switching. Equipped with 4PDT contact configuration supporting complex switching tasks.

Silver alloy contacts provide excellent conductivity and durability. High switching power capacity of 150 watts suitable for various loads. Wide operating temperature range ensures performance across environments. Compact PCB pin design allows for easy PCB integration.

Use Carlo Gavazzi Power Relays for efficient, reliable, and safe switching solutions in electrical and industrial automation projects. Browse EnvMart categories for additional power relay options and related devices.
