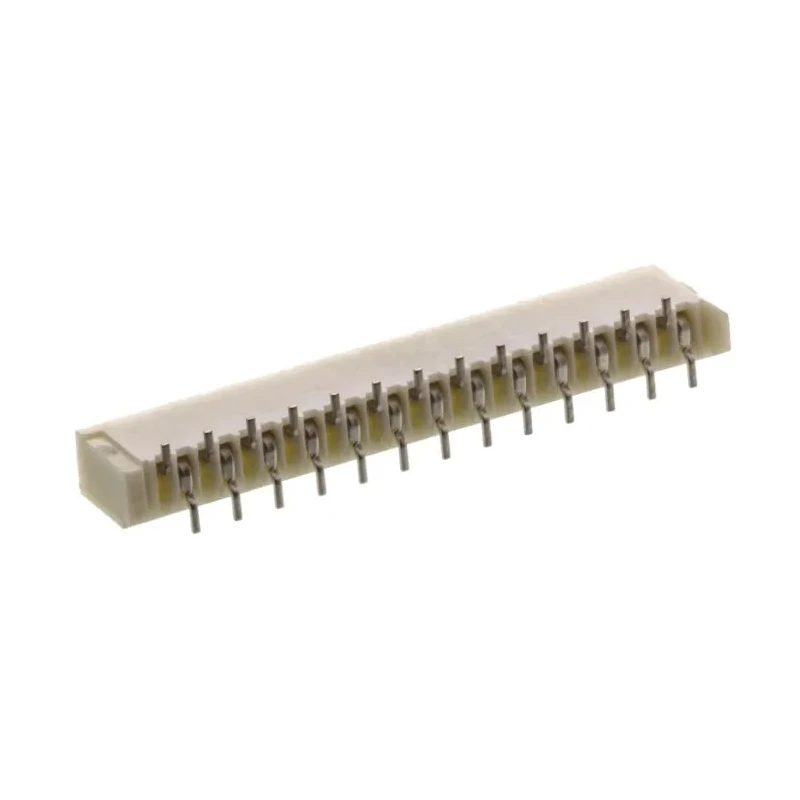

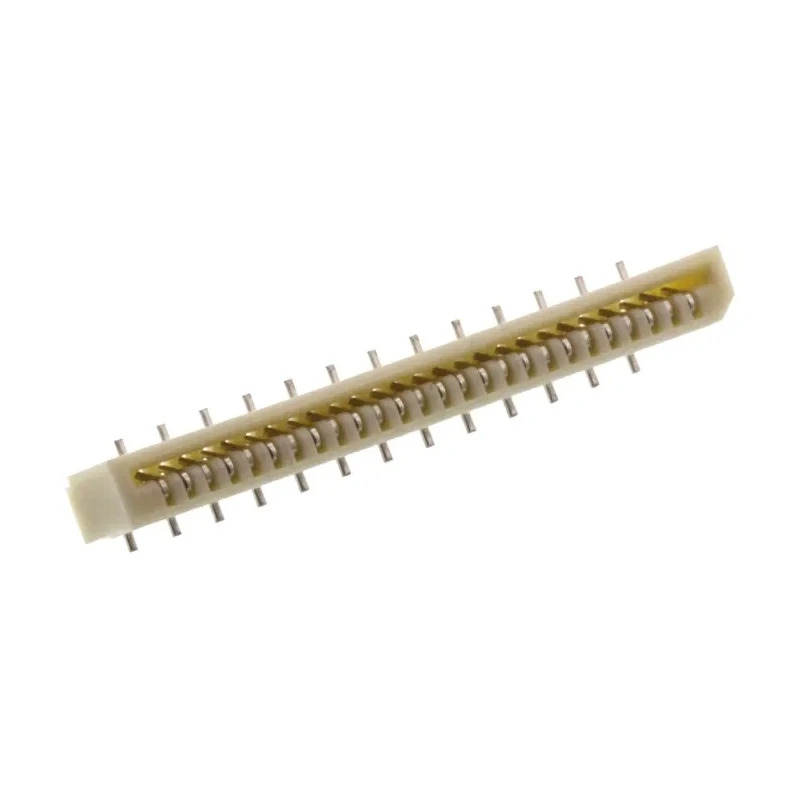

Molex 1 mm Pitch 26 Way Straight Female FPC Connector Solder Termination 52808-2670

Molex 52808-2670 1 mm Pitch 26 Way Straight Female FPC Connector is a surface mount connector designed for high-density signal and data transmission applications. The connector features a non-ZIF insertion force with a solder termination type, providing a secure and reliable electrical contact that compensates for cable movement. Its phosphor bronze contacts are plated with tin bismuth over nickel to ensure long-lasting performance and resistance to corrosion.

The polysulfone housing is chamfered in one corner for correct FPC orientation, improving assembly accuracy. Operating over a temperature range of -20°C to 80°C, this connector is suitable for use in automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitors, GPS units, smartphones, and more.

The locking mechanism enhances contact retention to prevent disconnections due to vibrations or movement, while the staggered contact design makes soldering to PCBs easier during manufacturing. Its compact 1 mm pitch and 26 contacts make it ideal for space-constrained electronic assemblies requiring robust electrical connections.

Compact 1 mm pitch design saves space on PCB layouts. 26 way female connector provides multiple connection points. Surface mount type with non-ZIF insertion force for reliable mounting. Phosphor bronze contacts with tin bismuth over nickel plating ensure durability.

Polysulfone housing offers high-temperature resistance and durability. Operating temperature range from -20°C to 80°C suits diverse environments. Includes locking mechanism for secure and stable connections. Ideal for automotive, consumer electronics, medical, and mobile phone industries.

Staggered contact design facilitates easier soldering onto PCBs.

This connector is a critical component for industrial, automotive, medical, telecommunications, and consumer electronic applications where compact, reliable interconnections are required. Explore more connectors and FPC solutions in the Electronics & Electricals category at EnvMart to find the ideal components for your design and manufacturing needs.
