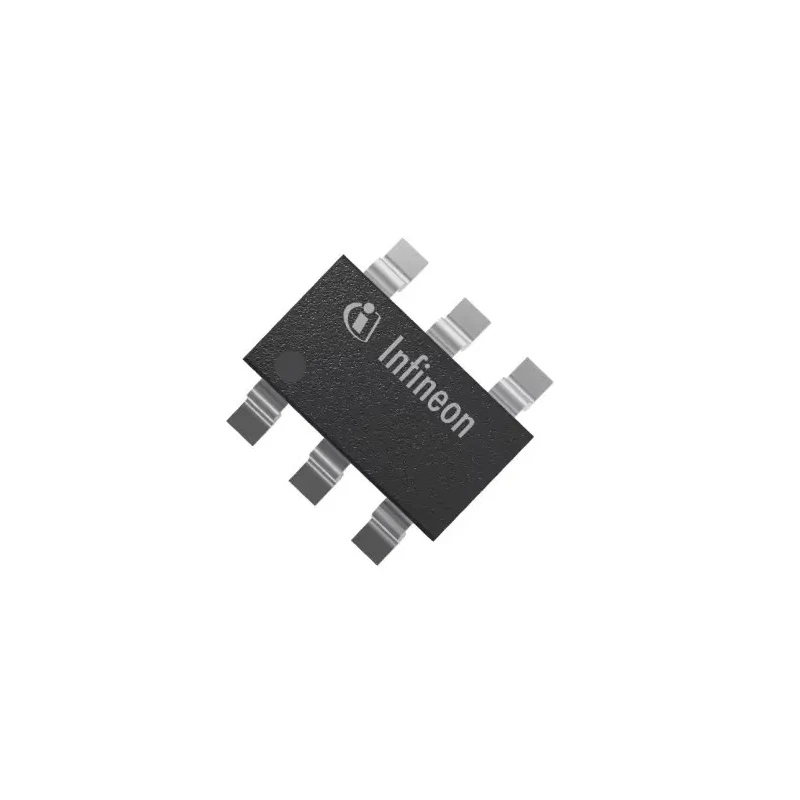

Infineon N-Channel IGBT Gate Driver IC, 11.9A, 11.4V, 6-Pin SOT-23 Surface Mount 1ED44175N01BXTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 1ED44175N01BXTSA1 |
| Mount Type | Surface |
| Series | 1ED44175N01B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC JESD47/22 and J-STD-020 |
| Pin Count | 6 |
| Maximum Continuous Collector Current Ic | 11.9A |
| Maximum Collector Emitter Voltage Vceo | 11.4V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 500mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Drives IGBT transistors with continuous collector current up to 11.9A.
- Supports 11.4V maximum collector-emitter voltage for low-voltage inverter stages.
- Features fast 50ns switching speed for optimal transition control.
- 6-pin SOT-23 compact surface-mount package suitable for dense PCB layouts.
- Offers 20V gate-emitter protection to secure transistors from voltage excursions.
- Operates between −40°C to 150°C for robust thermal reliability.
- Power dissipation capacity up to 500mW for energy-efficient applications.
- Compliant with JEDEC JESD47/22 and J-STD-020 thermal and moisture standards.
Product Description
Infineon 1ED44175N01BXTSA1 N-Channel IGBT Gate Driver IC provides a reliable and efficient solution for driving IGBT transistors in electronic power systems. Featuring an 11.9A maximum continuous collector current and a collector-emitter voltage of up to 11.4V, this device is designed for use in robust switching and motor inverter applications requiring accurate and fast gate control.
The compact 6-pin SOT-23 surface-mount package allows the driver IC to be integrated into dense circuit board designs, making it particularly suitable for compact power supplies, drive boards, and high-speed inverter modules. Its fast switching performance, with a 50ns transition time, ensures minimal switching losses and helps increase overall energy efficiency in power conversion stages.
Drives IGBT transistors efficiently at up to 11.9A for substantial gate drive capability in industrial and commercial assemblies. Withstands collector-emitter voltages up to 11.4V, ideal for low-voltage power stages and inverter circuits.
20V gate-emitter protection prevents gate voltage excursions, improving reliability and longevity of the driven transistors. 500mW maximum power dissipation allows use in confined and thermally demanding spaces. JEDEC JESD47/22 and J-STD-020 qualified for industry-compliant thermal and moisture resistance.
This IGBT gate driver is well-suited for use in low-voltage motor inverter gate stages, fast-switching power conversion modules, and drive boards with limited space. Its wide thermal operating range, from −40°C to 150°C, ensures stable performance even in challenging industrial environments.
The Infineon 1ED44175N01BXTSA1 is ideal for integration in industrial automation, renewable energy, HVAC systems, and compact drive modules, supporting both reliability and efficiency. Industrial professionals seeking a rugged and high-performance IGBT gate driver for demanding electronic and power conversion assemblies will find this product particularly valuable.
For more semiconductor and power control solutions, explore additional models from Infineon and related Gate Drivers in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 11.9A.
It supports a maximum collector-emitter voltage of 11.4V.
This driver features a fast switching speed with a transition time of 50ns.
It operates within a temperature range of -40°C to 150°C.
The package type is SOT-23, and it has a pin count of 6.
The maximum power dissipation capacity is 500mW.
Yes, it offers 20V gate-emitter protection to secure transistors from voltage excursions.
It is compliant with JEDEC JESD47/22 and J-STD-020 thermal and moisture standards.
This model uses surface mounting.
It is suitable for use in low-voltage motor inverter gate stages and fast-switching power conversion modules.
The channel type is N-channel.
It belongs to the 1ED44175N01B series.
