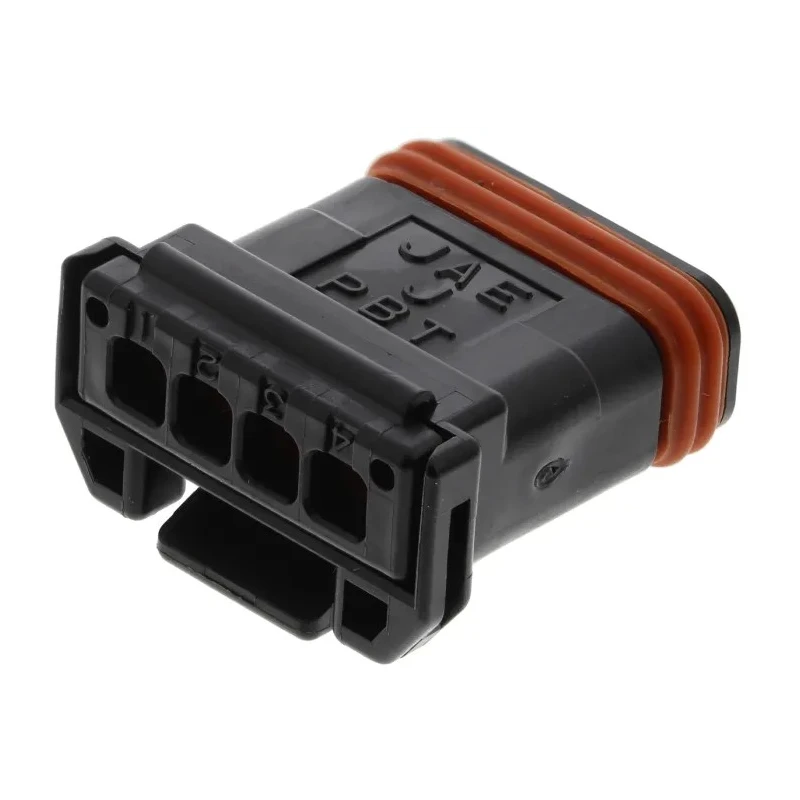

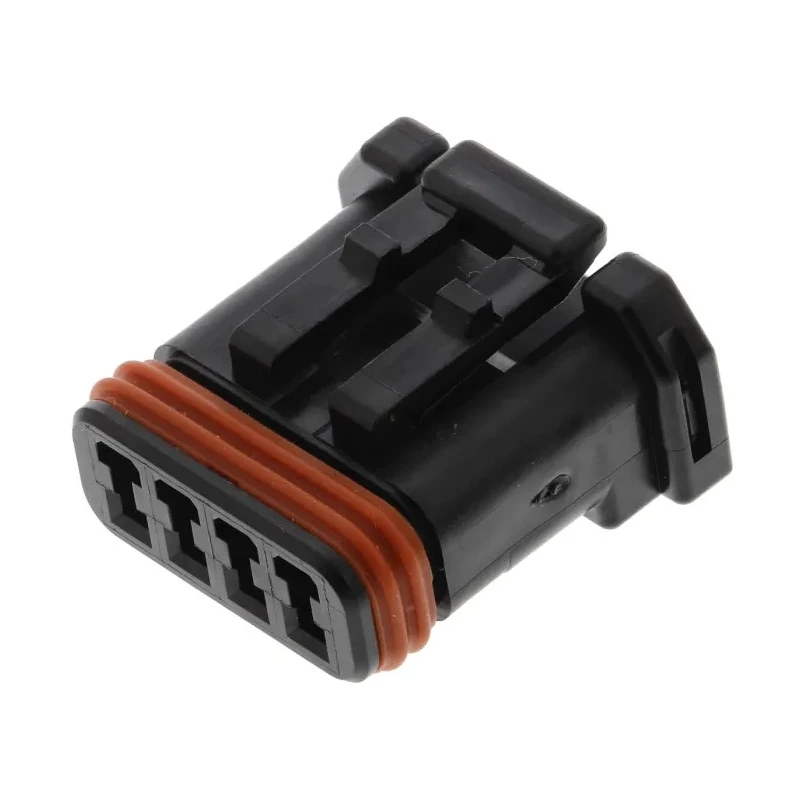

JAE MX19 Automotive Connector Female Black Cable 4 Way Crimp Termination MX19004S51

The JAE MX19004S51 is a female automotive connector in the MX19 series designed specifically for automotive and similar harsh environment applications. Featuring a durable black polybutylene terephthalate housing with tin-plated contacts, this connector supports a current rating of 5 amperes and operates reliably within a temperature range of -40°C to 85°C. Its compact design, with dimensions of 14mm width, 8.85mm height, and 14.1mm depth, facilitates easy harness assembly and secure wire-to-wire connections.

The connector employs a crimp termination type, providing strong and dependable wire retention. A mechanical lock mechanism prevents incomplete mating, enhancing safety and reliability in electrical systems. The single row 4-contact design is optimized for automotive electrical circuits, supporting 200 V AC rated voltage and maintaining contact resistance below 10 milliohms, ensuring excellent electrical performance.

The MX19 series connectors also feature a two-plate spring contact mechanism to improve contact reliability and maintain consistent electrical connectivity under vibration and environmental stress. Additionally, the product is compliant with RoHS standards, ensuring that hazardous substances are minimized, making it suitable for environmentally conscious manufacturing requirements.

This automotive connector is ideal for use in automotive harness assemblies, industrial machinery, and other commercial applications requiring robust, reliable cable-to-cable electrical connections. The durable housing and precise contact plating ensure long-term performance in challenging conditions, including moisture exposure and mechanical vibration.

Compact and robust MX19 automotive connector housing for secure connections. Crimp termination optimized for wire-to-wire application and mechanical reliability. Rated 5A current capacity with contact resistance of 10 mΩ max.

Temperature rating from -40°C to +85°C for harsh environments. Polybutylene terephthalate housing material with black color finish. Tin-plated contacts resist corrosion and provide reliable conduction. Mechanical lock prevents incomplete mating and ensures safety.

Single-row configuration with 4 contacts supports multiple wiring needs. RoHS compliant for environmentally safe manufacturing practices. Compact dimensions facilitate integration into automotive harnesses. Explore more Automotive Connectors and electrical components from EnvMart to find the optimal solution for your industrial, automotive, and manufacturing needs.
