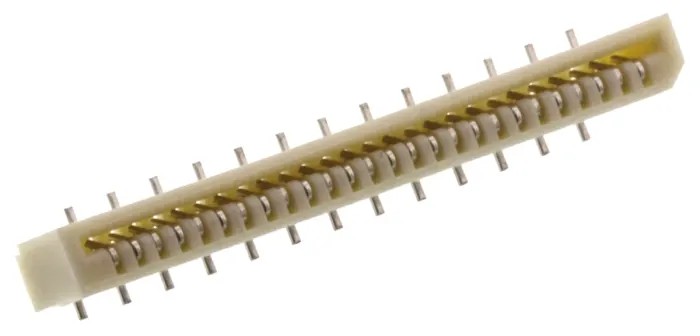

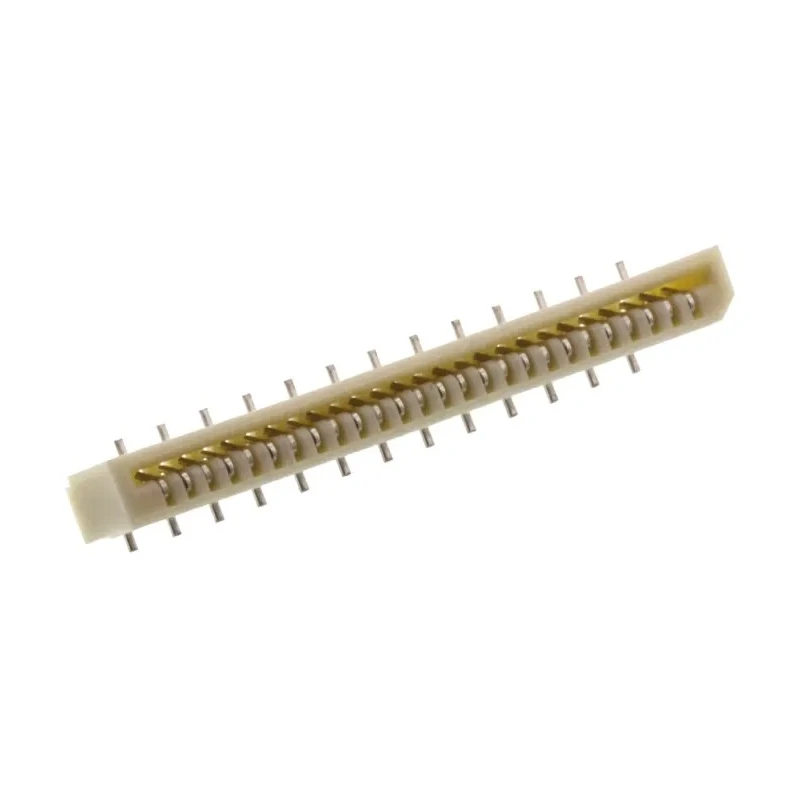

Molex 1 mm Pitch 26 Way Straight Female FPC Connector Solder 52808-2670
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- Features a 1.00 mm pitch with 26 contacts for precise connectivity.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for durability.
- Supports current up to 500 mA and voltage rating of 125V AC.
- Surface mount type with a straight orientation and solder termination for PCB attachment.
- Includes a locking mechanism ensuring secure cable retention during operation.
- Operates reliably between -20°C and 80°C temperature range.
- Designed with staggered contact design to facilitate soldering process.
- Housing made from polysulfone material offering mechanical strength and insulation.
Product Description
Molex 52808-2670 FPC Connector 1 mm Pitch 26 Way Straight Female is a new non-ZIF SMT flat flexible cable connector designed for secure and space-saving PCB connections. With 26 contacts spaced at 1.00 mm pitch, this surface-mount connector features a straight orientation and solder termination, facilitating reliable electrical performance with reduced insertion force.
The contacts are made from phosphor bronze and plated with tin bismuth over nickel, delivering excellent conductivity and corrosion resistance. The polysulfone housing is chamfered in one corner for easy correct orientation and mechanical durability, while the locking mechanism ensures stable contact retention under vibration or movement.
Rated for 125V AC and carrying up to 500 mA current, this connector is suitable for applications requiring compact, high-density interconnections such as automotive navigation systems, digital cameras, mobile devices, medical patient monitors, and industrial communications.
Operating temperature ranges from -20°C to 80°C, providing reliability in diverse environmental conditions. The staggered contact design simplifies PCB soldering processes, enhancing production efficiency and assembly quality.
1.00 mm pitch with 26 contacts for compact connectivity. Phosphor bronze contacts plated with tin bismuth over nickel for durability and conductivity. Surface mount solder termination with non-ZIF insertion force. Straight orientation and locking mechanism for secure connections.
Polysulfone chamfered housing for correct alignment and insulation. Voltage rating of 125V AC and 500 mA current capacity. Operation from -20°C to 80°C suitable for industrial and consumer environments. Ideal for automotive, mobile, medical, and communications applications.
Made in Malaysia ensuring quality manufacturing standards. Explore the Molex range of FPC Connectors at EnvMart for reliable electrical interconnection solutions suited to modern electronics design and manufacturing needs.
