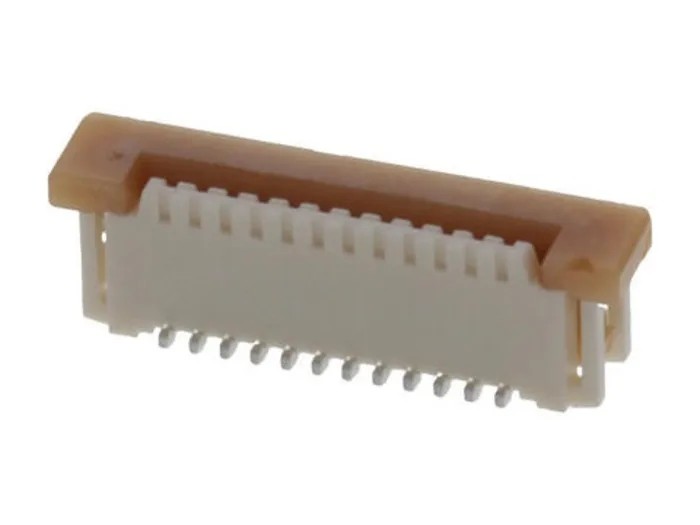

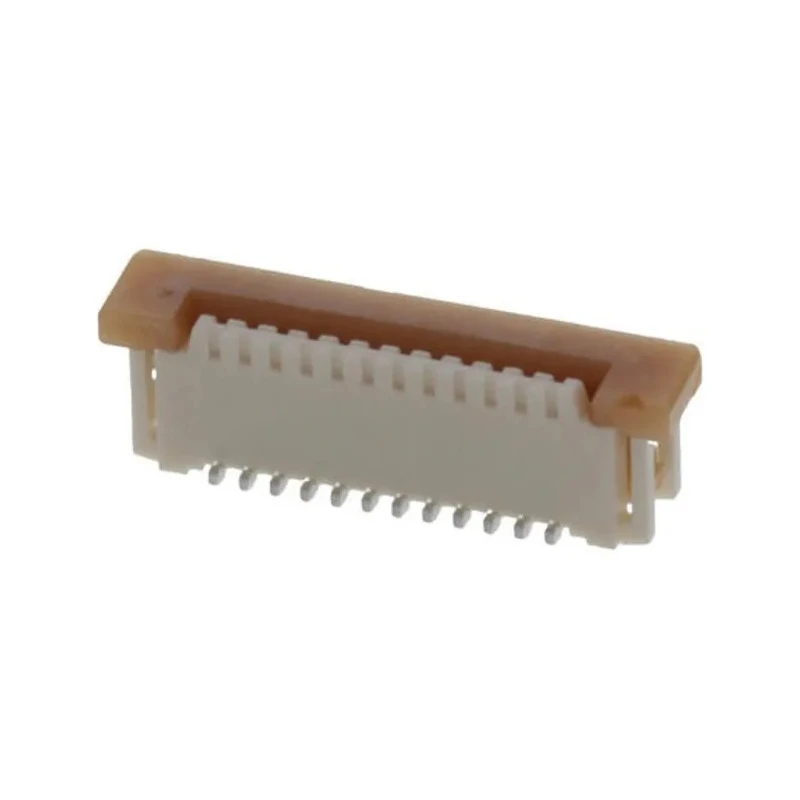

Molex 1 mm Pitch 12 Way Straight Female FPC Connector, Surface Mount, Solder Termination 52610-1272

Molex 52610-1272 is a 12 Way Straight Female FPC Connector designed for reliable, space-efficient connections in flexible printed circuit assemblies. Featuring a 1 mm pitch and surface mount style, it offers vertical contact orientation to optimize compact PCB layouts. Constructed with phosphor bronze contacts plated in gold over nickel, this connector provides excellent conductivity and resistance to corrosion, ensuring long-term connection integrity.

The connector supports a current capacity of 1 ampere and voltage rating of 125 volts, suitable for a range of electronic and industrial applications. Its operating temperature range from -40°C to +85°C makes it adaptable to various environmental conditions. The nylon housing adds mechanical strength while the locking mechanism secures the connection reliably during operation.

This solder termination type connector is ideal for use in electronic devices, automation systems, and electrical industry applications where flexible circuit connections are required. Its single row with 12 contacts facilitates efficient wiring and signal transmission.

Phosphor bronze contacts for enhanced electrical performance. Gold plating for superior corrosion resistance and durability. ZIF vertical contact style to maximize PCB space utilization. Surface mount configuration compatible with modern assembly methods.

Operating temperature range from -40°C to 85°C for broad versatility. 1 Amp current and 125 Volt voltage rating supports diverse applications. Durable nylon housing suitable for industrial environments. Locking mechanism ensures secure mating and reliable connections.

Solder termination allows straightforward, robust board attachment. Designed for electronic and automation system integration.

This Molex FPC Connector is part of the 52610 series and offers up to 30 mating cycles, making it suitable for repeated disconnects and reconnections without compromising performance. Its design supports standard PCB layouts without requiring PCB retention features, adding flexibility for various assembly needs.
