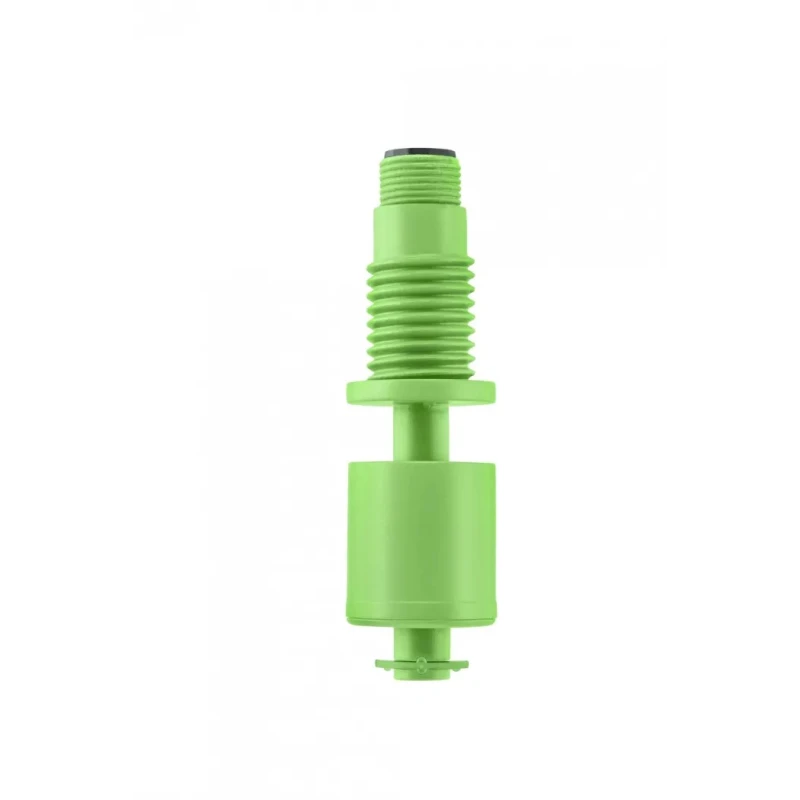

Cynergy3 RSF100 Series Vertical Viton Float Switch, 100 cm Cable, NO/NC, 240 V AC max, 120 V DC max RSF107YVP/RS

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF100 Series Vertical Viton Float Switch, 100 cm Cable, NO/NC, 240 V AC max, 120 V DC max RSF107YVP/RS

Name: Cynergy3 RSF100 Series Vertical Viton Float Switch, 100 cm Cable, NO/NC, 240 V AC max, 120 V DC max RSF107YVP/RS
Brand: Cynergy3
SKU: 194747
Price: 43 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF107YVP/RS
Cable Length	100cm
Mount Type	Vertical
Housing Material	Polyvinyl Fluoride
Series	RSF100
Maximum Operating Temperature	105°C
Switch output	NO/NC
Minimum Operating Temperature	-10°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Standards/Approvals	UL
Maximum AC Voltage	240V ac
Gasket Material	Viton

Key Features

The switch is a miniature vertical fluid level sensor.
It features a robust Viton gasket and polyvinyl fluoride housing material.
Suitable for operating temperatures from -10°C to 105°C.
Capable of switching currents up to 600 mA.
Switch output can be changed from normally open to normally closed by inverting the float.
Designed for top or bottom tank mounting with compression seal installation.
UL approved ensuring high safety and quality standards.
Offers high long-term reliability with minimal maintenance due to simple construction.

Product Description

Cynergy3 RSF107YVP/RS vertical Viton float switch is a compact, miniature fluid level switch designed to detect and control liquid levels in various industrial applications. This switch features a vertical mount type and is equipped with a durable Viton gasket and polyvinyl fluoride housing, offering excellent chemical resistance and durability.

The float switch includes a 100 cm cable for convenient installation and connection. It supports normally open (NO) and normally closed (NC) switch outputs, which can be easily toggled by removing and inverting the float. Operational temperature ranges from -10°C to 105°C, making it suitable for a variety of environments.

Electrical characteristics include a maximum AC voltage rating of 240 V and DC voltage rating of 120 V, with a maximum current capacity of 600 mA. It is UL certified, ensuring compliance with quality and safety standards. The device is designed to be mounted on the top or bottom of tanks using a compression seal, eliminating the need for tank interior access during installation.

These vertical float switches are well suited for applications in industrial automation, water treatment, HVAC systems, manufacturing processes, and other electrical control systems requiring reliable fluid level monitoring.

The switch is a miniature vertical fluid level sensor. It features a robust Viton gasket and polyvinyl fluoride housing material. Supports operating temperatures from -10°C to 105°C. Handles maximum AC voltage of 240 V and DC voltage of 120 V.

Maximum current capacity is 600 mA. Switch output is configurable between NO and NC by float inversion. UL approved for safety and reliability. Installation via compression seal, suitable for tank top or bottom mounting.

This product is manufactured in China and is supplied new. It is part of the Cynergy3 RSF100 series known for its simplicity, reliability, and low maintenance requirements. Explore more precision sensors and Float Switches in the Electronics & Electricals category at EnvMart for your industrial, laboratory, and commercial automation needs.
