Pepperl + Fuchs Horizontal Float Switch Polypropylene Housing 5m Cable Direct Load 250V AC 150V DC LFL2

Free Delivery in India | Lowest Global Shipping Charges

Pepperl + Fuchs Horizontal Float Switch Polypropylene Housing 5m Cable Direct Load 250V AC 150V DC LFL2

Name: Pepperl + Fuchs Horizontal Float Switch Polypropylene Housing 5m Cable Direct Load 250V AC 150V DC LFL2
Brand: Pepperl + Fuchs
SKU: 151078
Price: 153.39 USD
Availability: InStock



Category Float Switch Brand Pepperl + Fuchs Condition New

Specifications

Country of Origin	Hungary
Brand	Pepperl + Fuchs
Dimensions	86mm diameter
Model	LFL2
Cable Length	5m
Cable	5m, 3 x 0.75mm2
Mount Type	Horizontal
Density	≥0.6g/cm3
Housing Material	Polypropylene
Series	LFL2
Maximum Operating Temperature	70°C
Maximum Pressure	2bar
Switch output	Direct Load
Minimum Operating Temperature	-20°C
Maximum Current	3A
Maximum dc Voltage	150V dc
Standards/Approvals	CE, EN
Maximum AC Voltage	250V ac

Key Features

Equipped with a polypropylene housing for durability and chemical resistance.
Provides reliable switching via a mercury-free micro switch with a highly buoyant ball.
Suitable for use with liquids having a density of at least 0.6 g/cm3.
Operates effectively within a temperature range from -20°C to 70°C.
The float switch has a compact diameter of 86 mm allowing use in confined spaces.

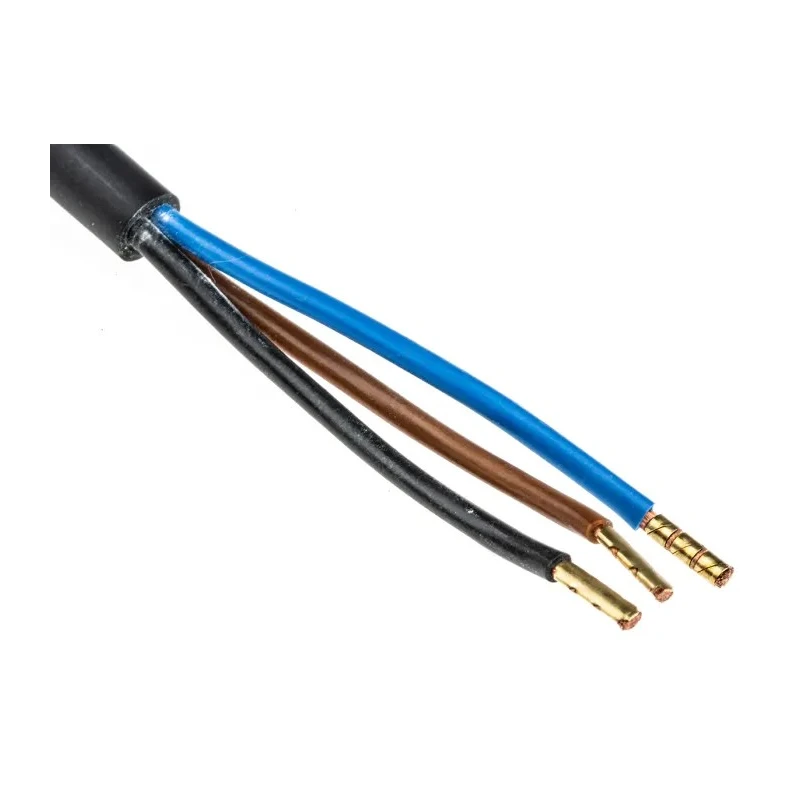

Cable is 5 meters long, comprising 3 cores of 0.75 mm² each for secure electrical connection.
Maximum current rating is 3 A with a pressure limit up to 2 bar.
Meets CE and EN standards ensuring quality and compliance.

Product Description

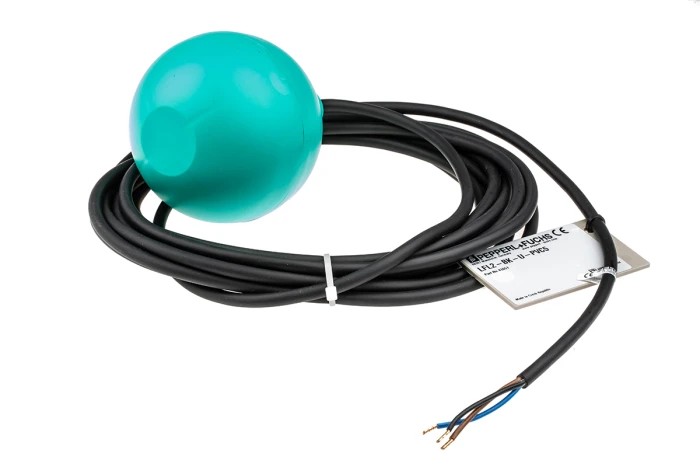

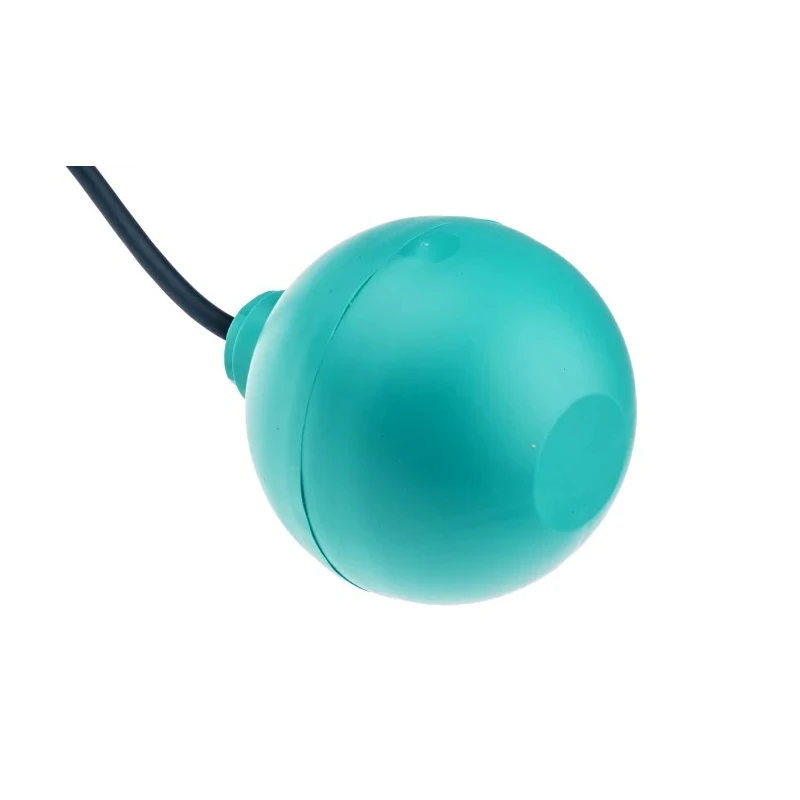

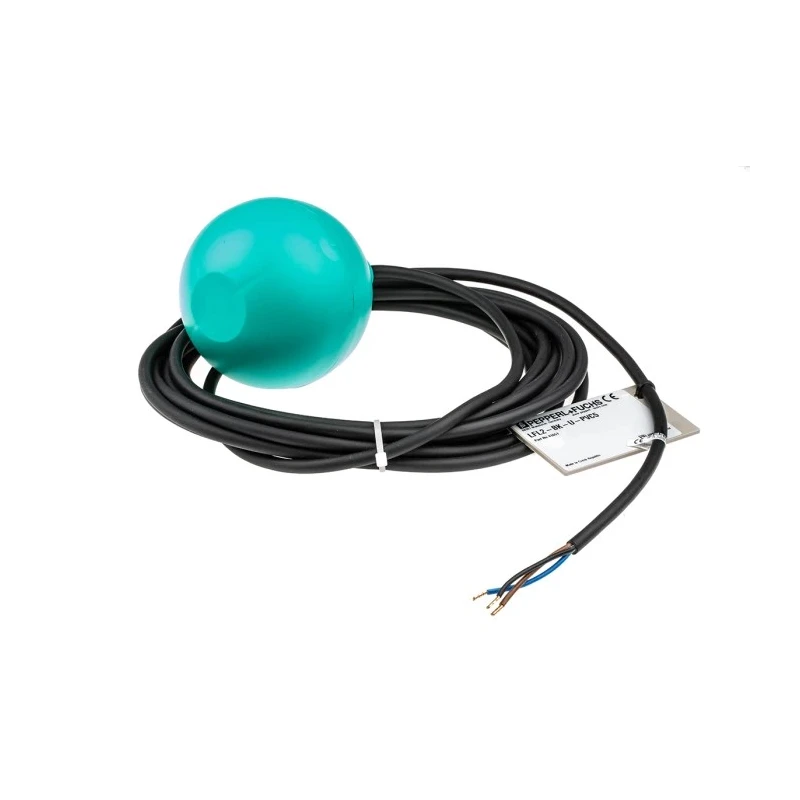

Pepperl + Fuchs LFL2 series horizontal float switch (Model: LFL2) is engineered for direct load switching applications in various industrial and commercial environments. The device features a polypropylene housing providing excellent resistance to chemicals and mechanical stress.

The float switch operates with a mercury-free micro switch activated by a high-buoyancy ball designed to respond accurately to liquid levels with a minimum density of 0.6 g/cm³. Its compact 86 mm diameter enables installation in small tap holes such as G1 size.

The float switch is outfitted with a 5-meter long cable comprising three 0.75 mm² conductors to ensure a reliable electrical connection. It is suitable for operating temperatures ranging from -20°C to 70°C and can withstand maximum AC voltage of 250 V and DC voltage of 150 V. The device supports a maximum current of 3 A and can endure pressures up to 2 bar.

Designed with safety and quality in mind, it complies with CE and EN standards, although it is not certified for hazardous area use. This makes it suitable for a broad range of applications such as water treatment, industrial automation, HVAC systems, and other process controls where liquid level monitoring is essential.

Polypropylene float housing for robustness and chemical resistance. Mercury-free micro switch utilizing a highly buoyant ball for precise switching. Compact diameter for fitting in tight installation points. Long 5 m cable with 3 x 0.75 mm² wiring for dependable connectivity.

Operational temperature range from -20°C to 70°C suitable for diverse environments. Voltage ratings supporting up to 250 V AC and 150 V DC maximum. Maximum current capacity of 3 A and pressure resistance up to 2 bar. Conforms to CE and EN quality standards ensuring reliable performance.

Manufactured in Hungary with global quality assurance.

This Pepperl + Fuchs LFL2 float switch combines reliable operation with compliance and durability, making it an ideal choice for water management, industrial automation, and similar engineering applications. Browse more in the Float Switch category on EnvMart for a wide selection of sensor and switch solutions by top brands.
