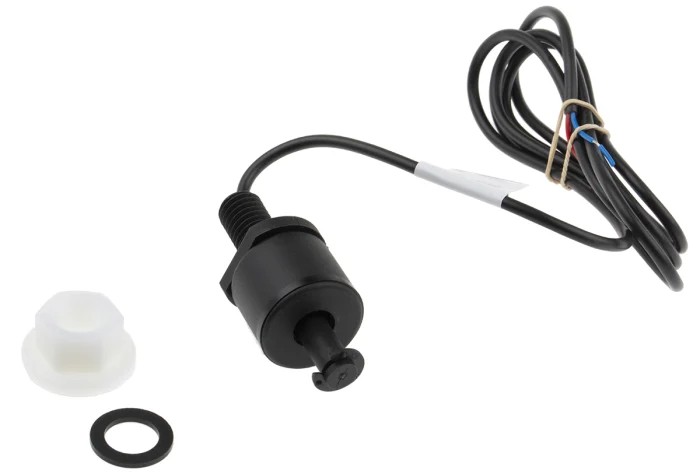

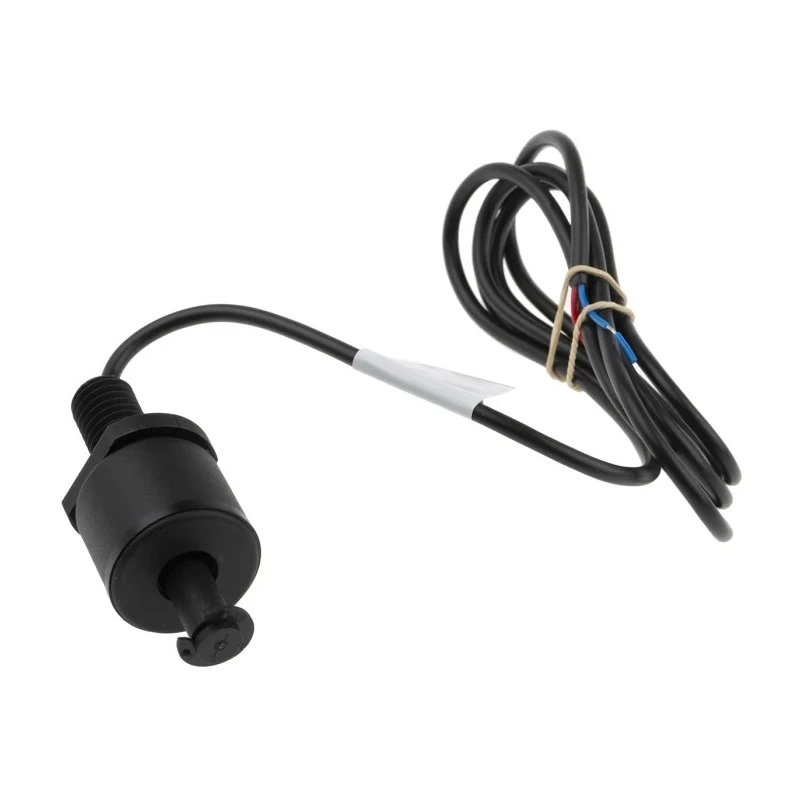

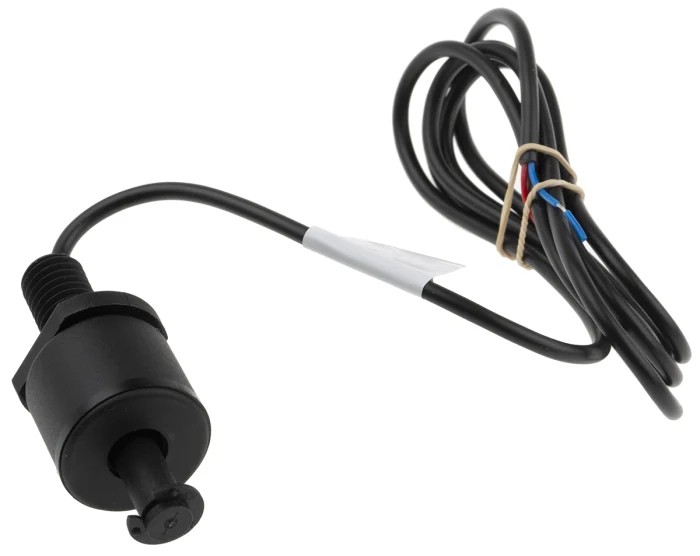

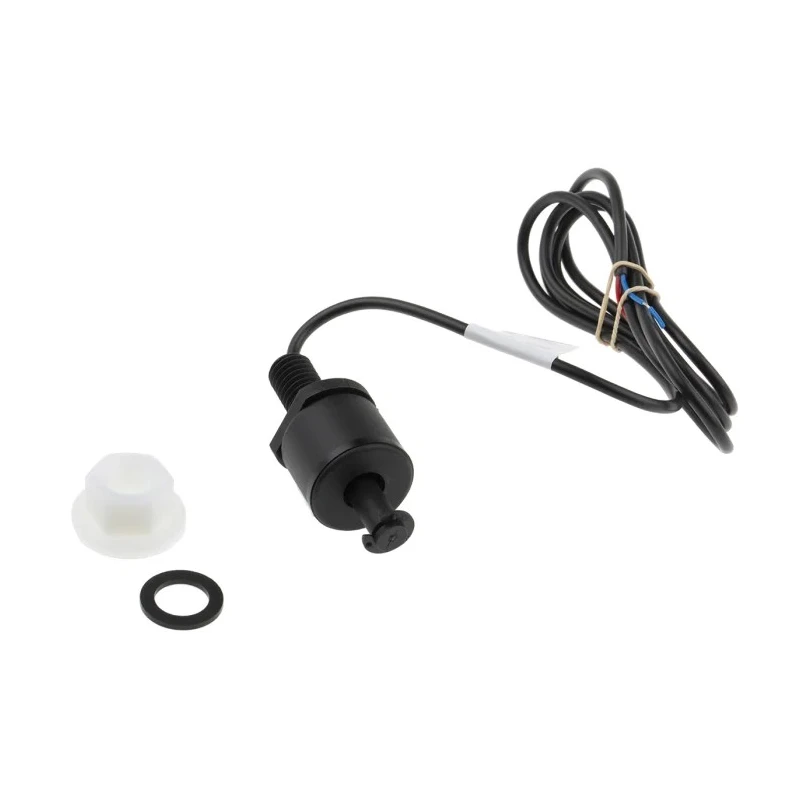

Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch, 1 m Cable, NO/NC, 240 V ac Max, 120 V dc Max RSF53Y100JC

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch, 1 m Cable, NO/NC, 240 V ac Max, 120 V dc Max RSF53Y100JC

Name: Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch, 1 m Cable, NO/NC, 240 V ac Max, 120 V dc Max RSF53Y100JC
Brand: Cynergy3
SKU: 155721
Price: 20.96 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF53Y100JC
Cable Length	1m
Mount Type	Vertical
Housing Material	Nylon
Series	RSF50
Maximum Operating Temperature	75°C
Switch output	NO/NC
Minimum Operating Temperature	-20°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Standards/Approvals	WRAS
Maximum AC Voltage	240V ac
Gasket Material	Nitrile Rubber (NBR)

Key Features

Compact vertical float switch suitable for liquid level monitoring.
Constructed with chemical-resistant nylon housing and nitrile rubber gasket.
Supports normally open or normally closed switch outputs.
Operates over a wide temperature range from -20°C to 75°C.
Includes a 1-meter cable for flexible electrical connections.
Resistant to corrosion and abrasion for durability.
Standard M12 mounting thread for easy installation.
Maximum current rating of 600 mA.

Product Description

Cynergy3 RSF53Y100JC is a vertical float switch designed for precise liquid level monitoring in industrial and commercial applications. Featuring a chemical-resistant nylon housing and a nitrile rubber (NBR) gasket, this switch ensures durability and resistance to corrosion and abrasion.

The float switch incorporates a magnet that actuates a reed switch within its body, allowing it to either open or close circuits based on liquid level changes. It provides flexibility with normally open (NO) or normally closed (NC) outputs and supports operation up to 240 V AC and 120 V DC with a maximum current of 600 mA.

Equipped with a 1-meter cable, the RSF53Y100JC enables easy connection and installation. It operates reliably over a broad temperature range from -20°C to +75°C, making it suitable for demanding environments and various liquids including oils, organic chemicals, and printing inks.

The standard M12 mounting thread facilitates vertical installation either at the top or bottom of containers where side access is limited. This model is part of the RSF50 series offering multiple material options for diverse applications.

This float switch is suitable for industrial, laboratory, HVAC, manufacturing, vending machines, chemical dosing equipment, and printing systems, enhancing operational safety and automation.

Compact vertical float switch suitable for liquid level monitoring. Chemical-resistant nylon housing with nitrile rubber (NBR) gasket. NO/NC switch outputs for flexible circuit design. Wide operating temperature range of -20°C to 75°C.

1-meter cable for flexible electrical connection. Corrosion and abrasion resistant construction. Standard M12 mounting thread for easy mounting. Maximum current rating of 600 mA at 240 V AC/120 V DC. WRAS approved compliance.

Ideal for industrial, vending machines, and chemical dosing systems. Explore more premium automation and control products in EnvMart’s Sensors and Float Switches category for efficient industrial process control solutions.
