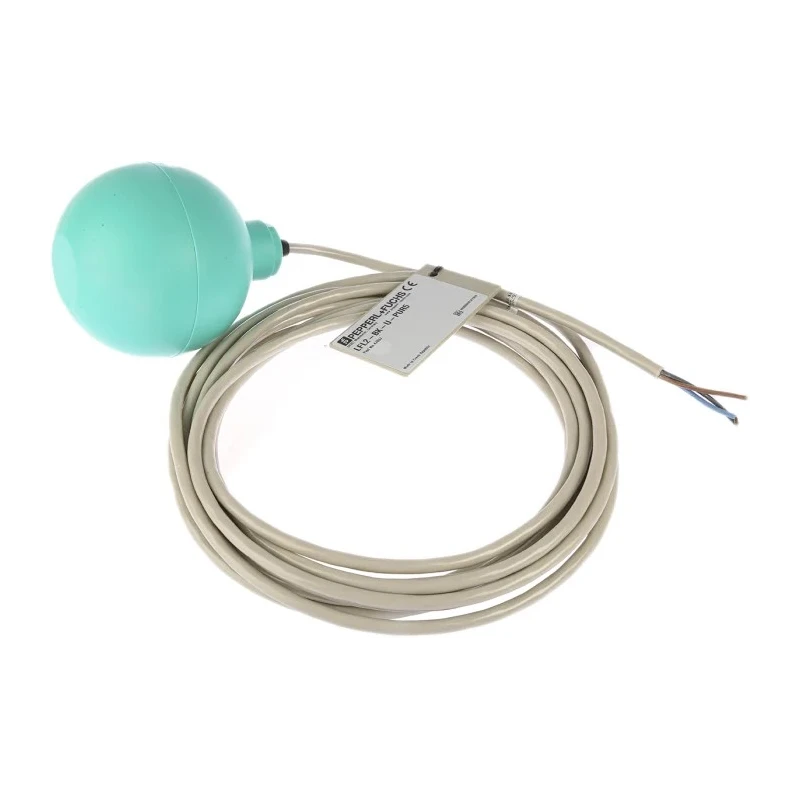

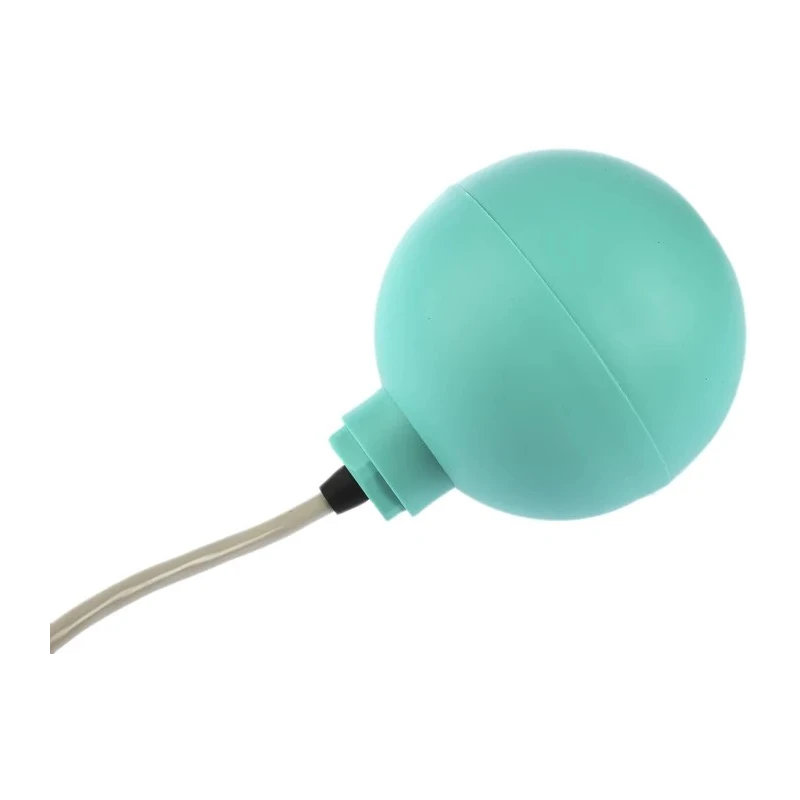

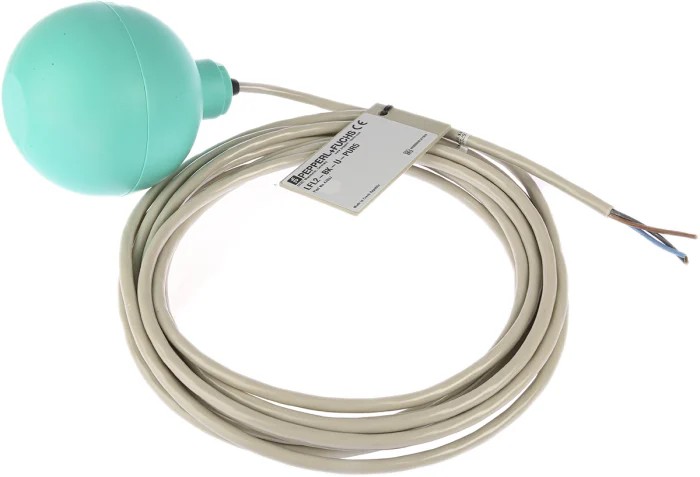

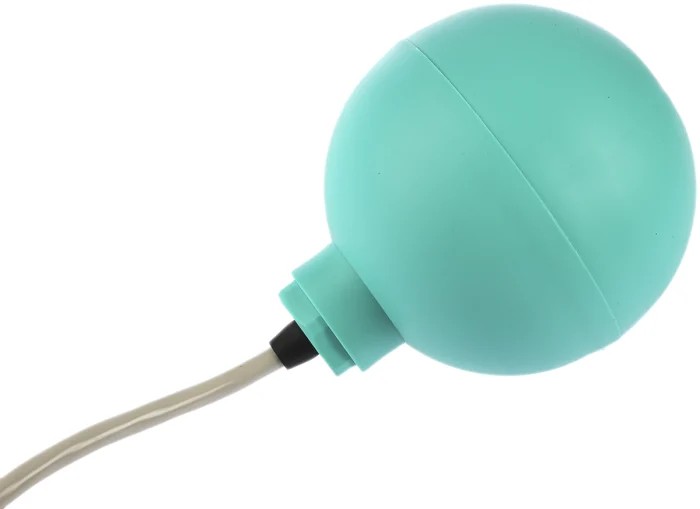

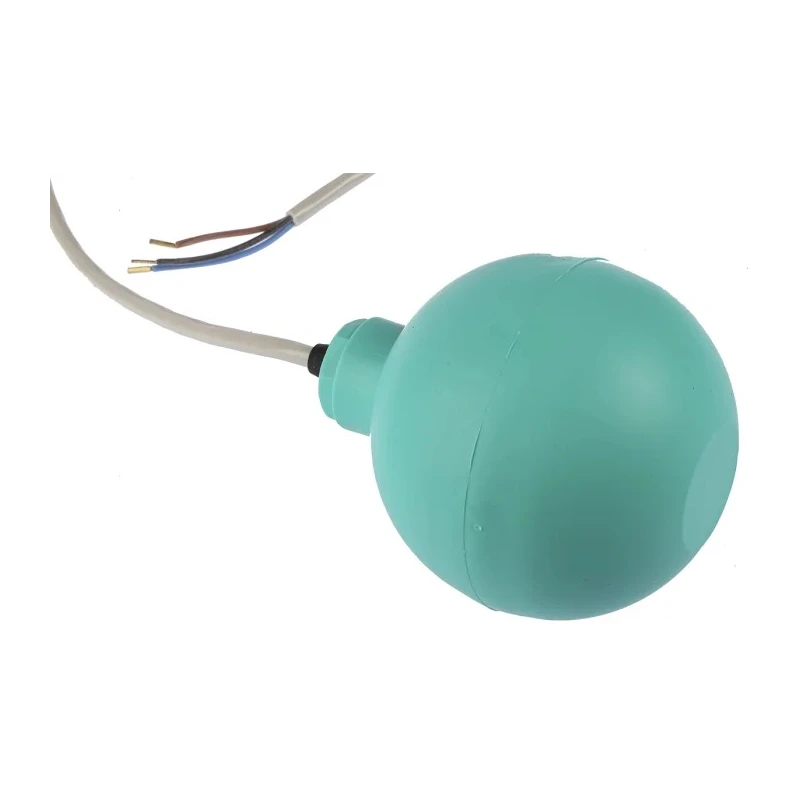

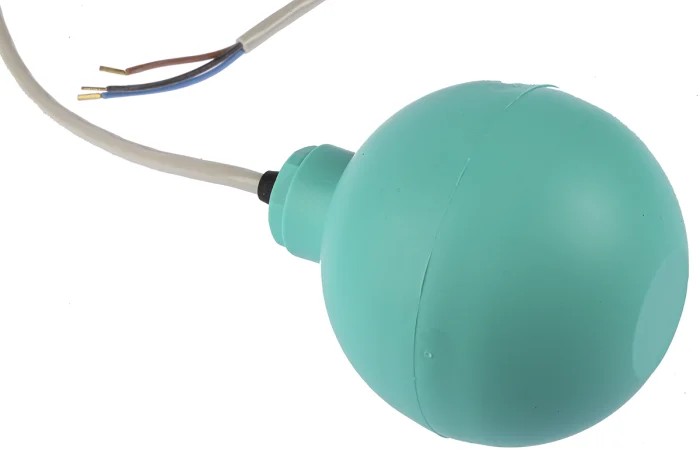

Pepperl + Fuchs LFL2 Series Horizontal Float Switch 5m Cable Direct Load 250V AC Max 150V DC Max LFL2-BK-U-PUR5

Free Delivery in India | Lowest Global Shipping Charges

Pepperl + Fuchs LFL2 Series Horizontal Float Switch 5m Cable Direct Load 250V AC Max 150V DC Max LFL2-BK-U-PUR5

Name: Pepperl + Fuchs LFL2 Series Horizontal Float Switch 5m Cable Direct Load 250V AC Max 150V DC Max LFL2-BK-U-PUR5
Brand: Pepperl + Fuchs
SKU: 161148
Price: 153.39 USD
Availability: InStock



Category Float Switch Brand Pepperl + Fuchs Condition New

Specifications

Country of Origin	Czech Republic
Brand	Pepperl + Fuchs
Model	LFL2-BK-U-PUR5
Cable Length	5m
Mount Type	Horizontal
Density	≥0.6g/cm3
Housing Material	Polypropylene
Series	LFL2
Maximum Operating Temperature	85°C
Maximum Pressure	2bar
Switch output	Direct Load
Minimum Operating Temperature	-20°C
Maximum Current	3A
Maximum dc Voltage	150V dc
Standards/Approvals	EN, CE
Maximum AC Voltage	250V ac
Switch element	Micro switch, mercury-free
Sleeve design	Small diameter, mounting through G1 tap hole possible
Ball design	High buoyancy
Density sleeve design	≥ 0.8 g/cm3 and ball design: ≥ 0.6 g/cm3

Key Features

Designed for horizontal mounting with a micro switch that is mercury-free.
Constructed with a durable polypropylene housing suitable for hostile environments.
Operates reliably within temperatures from -20°C to 85°C.

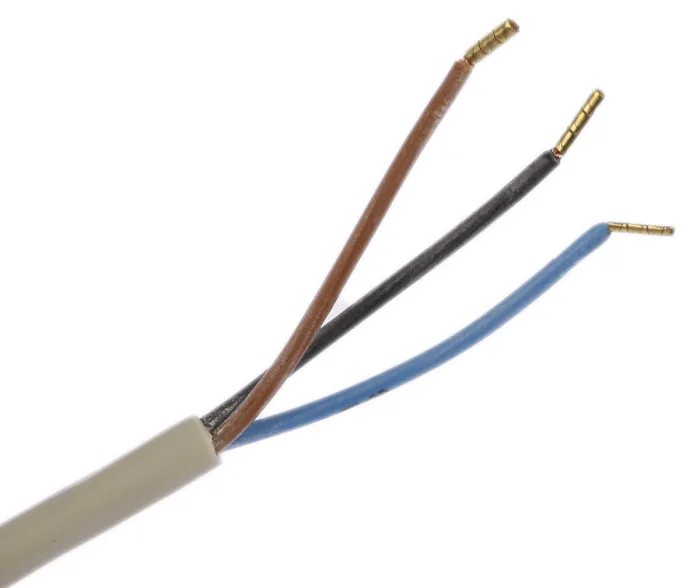

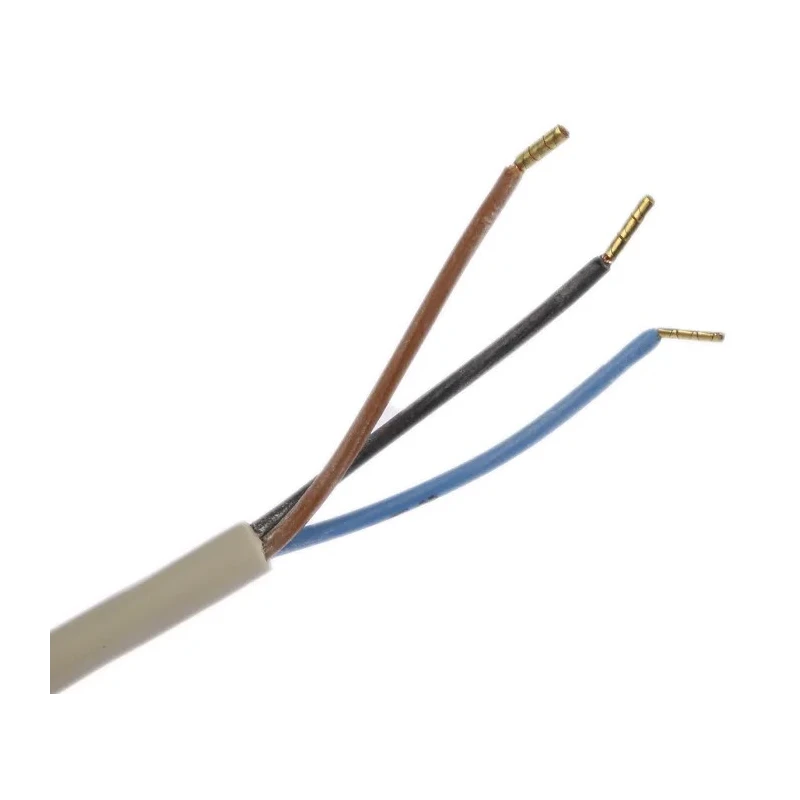

Cable length of 5 meters with PUR cable material for enhanced durability.
Maximum current rating of 3 A and pressure rating up to 2 bar.
Compact sleeve design allowing mounting through G1 tap hole.
High buoyancy float and density designed to detect low-density fluids.
Switching action initiated by rocking motion triggered by fluid level changes.

Product Description

Pepperl + Fuchs LFL2-BK-U-PUR5 is a horizontal float switch designed for precise liquid level detection in industrial, laboratory, and commercial applications. Featuring a polypropylene housing and a robust 5 meter PUR cable, it is engineered to switch at fluid level deviations through a mercury-free microswitch mechanism. The float's rocking motion along its axis activates the integrated switch, making it suitable for sequential electrical circuits that support its operational parameters.

The switch performs reliably within a temperature range of -20°C to 85°C and supports maximum ratings of 250 V AC and 150 V DC with a 3 amp current capacity. Its small diameter sleeve design allows installation through G1 tap holes, beneficial for space-constrained mounting environments. The high buoyancy float and the density optimized design enable detection for low density liquids down to 0.6 g/cm³.

The device is rated IP68, ensuring protection against dust and long-term immersion in water, and holds certifications according to EN 50178, EN 60529, EN 60947-5-2, and CE directives. This float switch is ideal for automation and control systems in industrial plants, water treatment facilities, HVAC, and manufacturing lines where fluid level monitoring and switching is critical.

Horizontal mounting type with direct load switch output. Made with polypropylene housing for chemical resistance. Provides a reliable 5 meter PUR cable for flexible installations. High operational temperature tolerance ranging from -20°C to 85°C.

Supports maximum pressure of 2 bar suitable for various fluid applications. Mercury-free microswitch for environmental safety and durability. Small diameter sleeve fits G1 tap holes facilitating easy mounting. Density designed for low buoyancy fluid detection capability.

IP68 certified for waterproof and dust-tight operations. Manufactured in Czech Republic, ensuring premium quality.

This Pepperl + Fuchs LFL2-BK-U-PUR5 Float Switch is an essential component for fluid level control automation, helping maintain efficient process workflows and safety in industrial environments. Explore the extensive range of sensors and control gear available on EnvMart for advanced industrial solutions.
