Cynergy3 Vertical Nitrile Rubber (NBR) Float Switch with 1m Cable, NO/NC, 240 V AC Max, 120 V DC Max RSF53Y100RC

Free Delivery in India | Lowest Global Shipping Charges

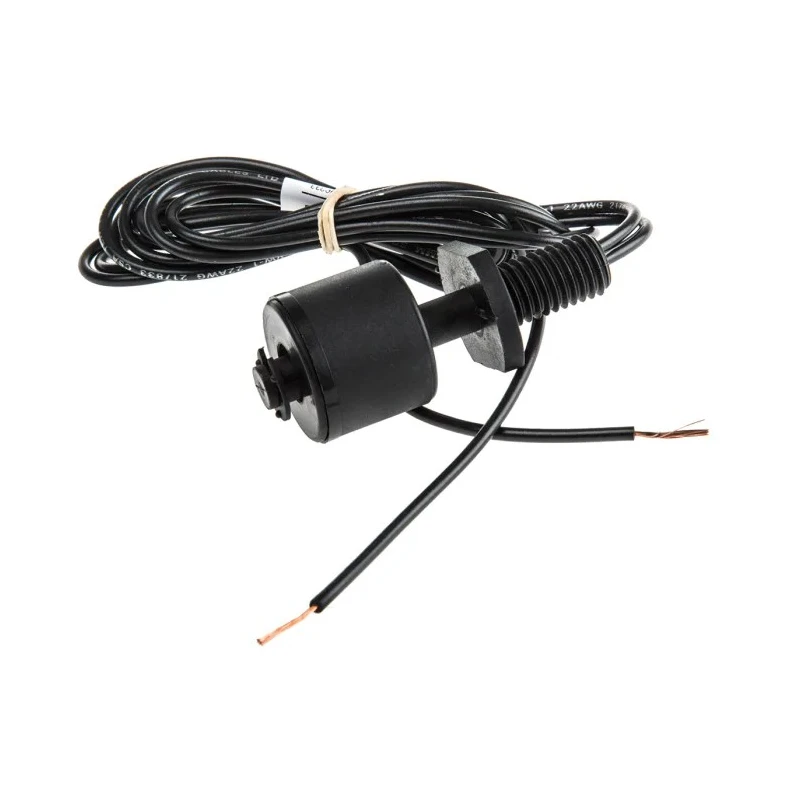

Cynergy3 Vertical Nitrile Rubber (NBR) Float Switch with 1m Cable, NO/NC, 240 V AC Max, 120 V DC Max RSF53Y100RC

Name: Cynergy3 Vertical Nitrile Rubber (NBR) Float Switch with 1m Cable, NO/NC, 240 V AC Max, 120 V DC Max RSF53Y100RC
Brand: Cynergy3
SKU: 150732
Price: 20.37 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF53Y100RC
Cable Length	1m
Mount Type	Vertical
Housing Material	Nylon
Series	RSF50
Maximum Operating Temperature	75°C
Switch output	NO/NC
Minimum Operating Temperature	-20°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Standards/Approvals	WRAS
Maximum AC Voltage	240V ac
Gasket Material	Nitrile Rubber (NBR)

Key Features

The switch features normally open and normally closed contacts for versatile control.
Constructed with durable nylon housing and nitrile rubber gasket resisting abrasion and wear.
Operates over wide temperature range from -20°C to 75°C suitable for harsh environments.
Electrical ratings include a maximum 240 V AC and 120 V DC voltage handling with 600 mA maximum current.
Its vertical mounting design fits applications with limited side tank access or internal top/bottom installation.
Cable length of 1 meter provides flexible installation options in liquid monitoring systems.
Ideal for use in vending machines, dishwashers, water closets, chemical dosing, and printing systems.

Product Description

Cynergy3 RSF53Y100RC vertical float switch is designed for precise liquid level sensing with a robust construction featuring a nitrile rubber (NBR) gasket and nylon housing. It includes a 1 meter cable with NO/NC switch outputs, capable of operating at up to 240 V AC and 120 V DC with a maximum current of 600 mA. This device can withstand operating temperatures from -20°C to 75°C, making it suitable for various industrial and commercial applications.

The switch is installed vertically either at the top or bottom inside tanks where side access is restricted. The nitrile rubber gasket provides excellent abrasion resistance ensuring durability in liquid environments. Its lightweight and waterproof nylon housing protects internal components for long service life. The float switch's compact design allows integration into vending machines, printing systems, dishwashers, chemical dosing equipment, and water closets.

Installation precautions include ensuring cable entry points are not submerged to avoid electrical hazards, and proper mounting such that the cable remains outside the tank wall if installed horizontally. The switch's mounting thread and cable entry points must stay above the liquid level for vertical fitting.

The RSF50 series float switches offer multiple material types across different models, with this particular model employing nitrile rubber for enhanced abrasion resistance. The NO/NC contact configuration supports flexible control schemes in automation and monitoring systems.

The switch’s low current consumption increases energy efficiency in sensitive applications. Flexible 1 meter cable length simplifies installation inside tanks and vessels. Wide operating temperature range allows performance in diverse environments.

Durable nylon housing with nitrile rubber gasket ensures long-term reliability. Suitable for industrial, laboratory, construction, HVAC, and water treatment use cases.

This float switch is a reliable component for controlling liquid levels, enhancing automation and safety in fluid handling systems. Explore the Electronics & Electricals > Sensors > Float Switches category at EnvMart for similar reliable products suitable for a variety of liquid sensing applications.
