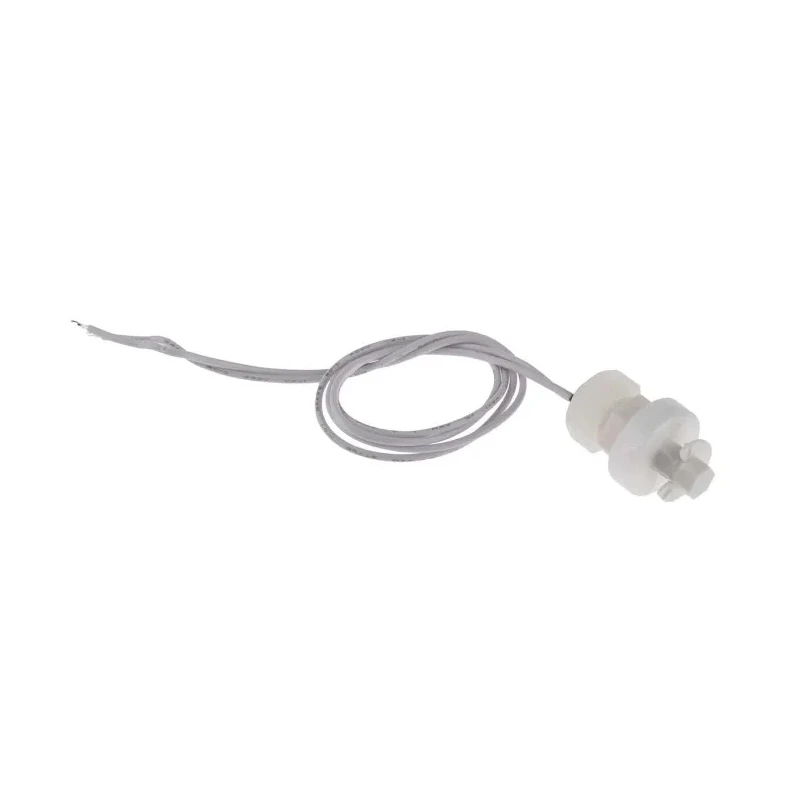

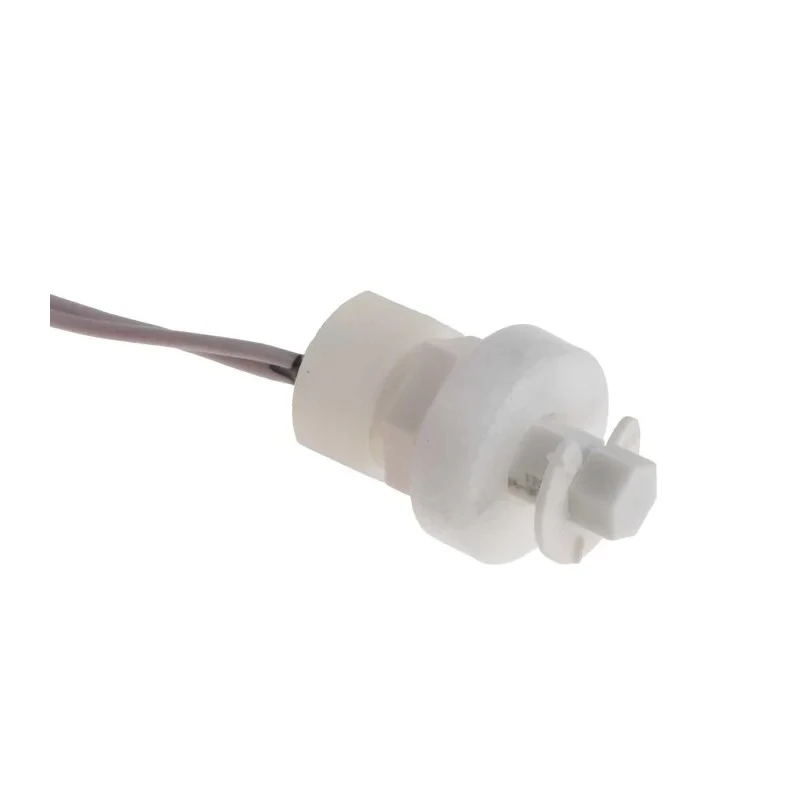

RS Pro Vertical Silicone Float Switch Polypropylene Housing 300 mm Cable Direct Load 130V AC Max 180V DC Max 519-248

RS Pro 519-248 Vertical Silicone Float Switch features a robust polypropylene housing and a 300 mm cable length equipped with AWG 24 leads designed for direct load switch output. It operates reliably at up to 130 V AC and 180 V DC with a maximum current rating of 1 ampere. This miniature float switch is designed for vertical mounting and is fully IP67 rated meaning it offers excellent protection against dust and water ingress, making it suitable for diverse industrial, commercial, and water treatment applications.

The switch operates safely within temperatures ranging from -20°C to +80°C, making it ideal for environments including water dispensers, tank monitoring systems, vending machines, coffee machines, and printing equipment. Its silicone gasket material ensures a secure, leak-proof sealing that complies with FDA standards, allowing safe use where food contact is necessary.

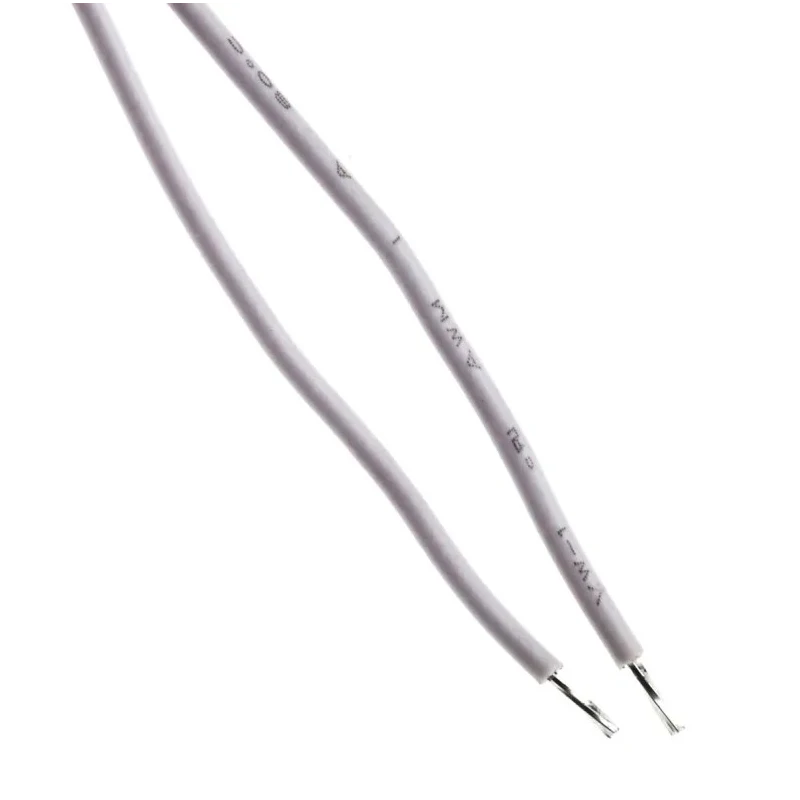

The device comes with a 300 mm cable fitted with UL 1007, AWG 24 leads for secure, reliable electrical connections. This float switch can be mounted either from the top or bottom of a tank, with reversed operating function when installed with the stem facing upwards. It is rated for a maximum pressure of 1 bar and does not carry hazardous area certification, making it appropriate for general industrial use.

This product is supplied in new condition and is suitable for a range of industrial automation and control gear applications where precise liquid level sensing is required for operational safety and efficiency.

The housing material is polypropylene for durable performance. The mounting style is vertical for easy installation within tanks. The device supports load switching with a direct load output. Cable length of 300 mm facilitates convenient connections.

This float switch ensures reliable operation between -20°C and +80°C. Operation voltage ratings are 130 V AC and 180 V DC maximum. Maximum current supported is 1 ampere. Gasket is made of silicone providing tight sealing and compliance with food safety standards.

IP67 rating guarantees protection against water and dust ingress. Ideal for applications including vending, printing, coffee machines, and water dispensers. Explore RS Pro Float Switches and other sensors within EnvMart for trusted industrial automation solutions and precise control gear components.
