Cynergy3 RSF64 Series Internal Float Switch, 1.5 m Cable, Direct Load, 240 V AC Max, 120 V DC Max RSF64EXS

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF64 Series Internal Float Switch, 1.5 m Cable, Direct Load, 240 V AC Max, 120 V DC Max RSF64EXS

Name: Cynergy3 RSF64 Series Internal Float Switch, 1.5 m Cable, Direct Load, 240 V AC Max, 120 V DC Max RSF64EXS
Brand: Cynergy3
SKU: 149064
Price: 85.17 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF64EXS
Cable Length	1.5m
Mount Type	Internal
Housing Material	Polyphenylene Sulphide
Series	RSF64
Maximum Operating Temperature	75°C
Switch output	Direct Load
Minimum Operating Temperature	-20°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Maximum AC Voltage	240V ac

Key Features

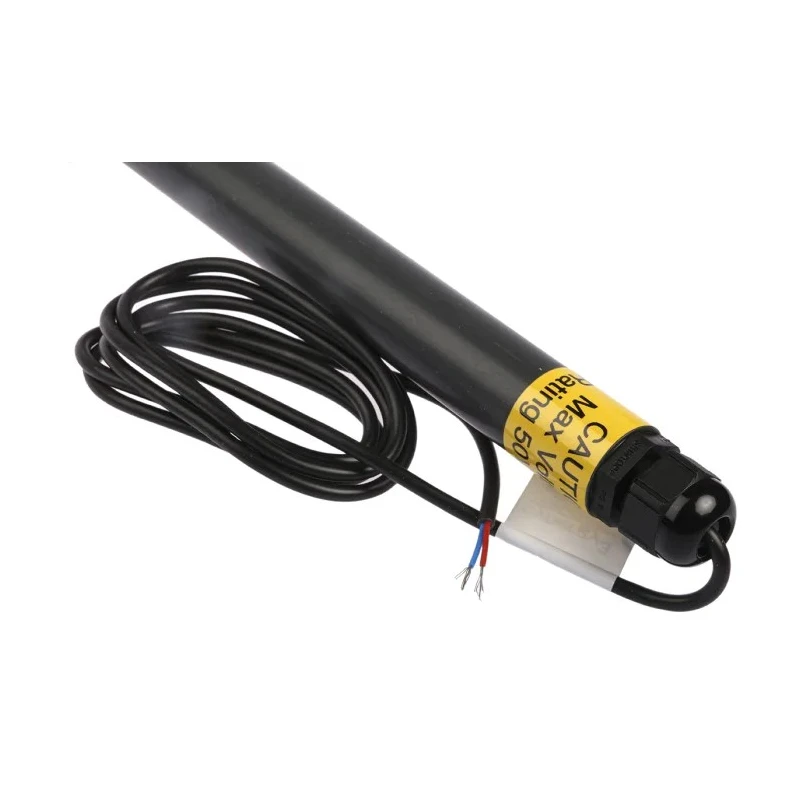

The float switch features a 1.5 m flying lead for flexible connections.
It has a switching power tolerance up to 25VA and a maximum current of 600mA for use with various loads.
Its operating temperature range spans from -20°C to +75°C, suitable for diverse environments.
The device is mounted internally and designed for vertical installation in tanks and sumps.
Constructed using polyphenylene sulphide (PPS) for chemical and thermal durability.
The switch includes a nitrile gasket to provide a secure seal, preventing leaks.

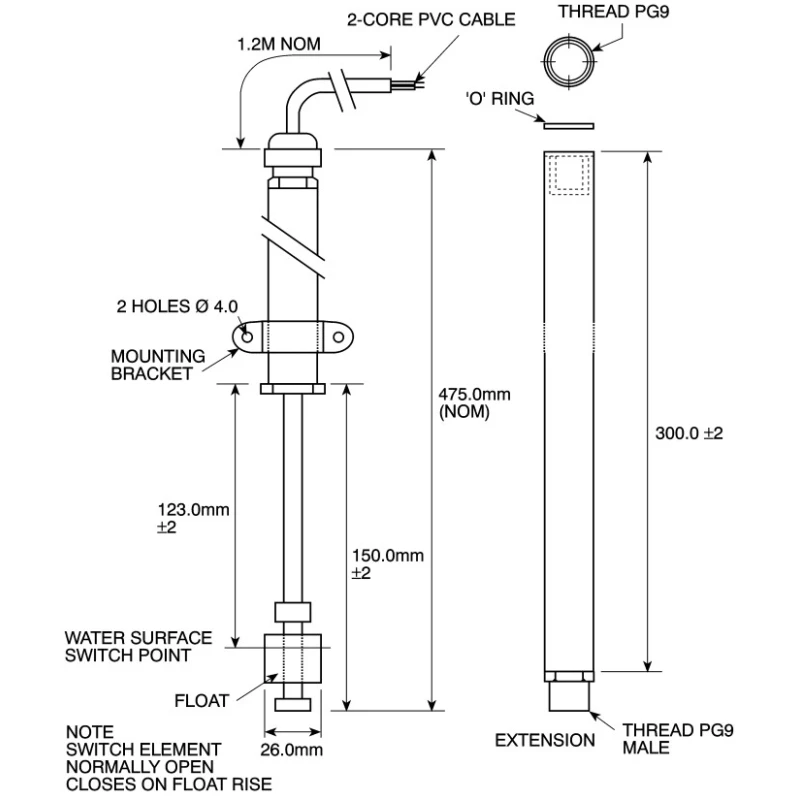

Additional extension tubes can be added for greater switching depth beyond the standard 130mm to 423mm range.

Product Description

Cynergy3 RSF64EXS is a vertical internal float switch designed for reliable level detection in demanding industrial, agricultural, and commercial fluid management applications. The switch features a polyphenylene sulphide (PPS) housing providing excellent resistance to chemicals and high temperatures, enabling its use in environments with operating temperatures between -20°C and 75°C.

The float switch includes a 1.5 m PVC flying lead cable to allow flexible electrical connections. It operates with a direct load output and supports a maximum switching power of 25 VA with a current capacity up to 600 mA at 240 V AC or 120 V DC. The device is designed for vertical mounting within tanks, boilers, sumps, and water wells, with the threaded mounting and cable entry points positioned above the maximum liquid level for safety.

The RSF64 series offers an effective solution for level sensing where space constraints exist, with a standard switching depth ranging from 130 mm to 423 mm. Additional extension tubes may be added to increase the sensing depth to suit specific installation requirements.

The internal float design minimizes intrusion into the tank, reducing the risk of damage or snagging. This float switch is a dependable choice for controlling pumps, alarms, and other control circuits in fluid level management systems across various sectors including manufacturing, water treatment, HVAC, and agricultural irrigation.

The 1.5 m flying lead cable provides versatile connection options for different system integrations. The PPS housing material ensures chemical, abrasion, and heat resistance for long service life. Maximum voltage ratings of 240 V AC and 120 V DC allow compatibility with a wide range of control circuits.

The direct load output simplifies installation, enabling control without additional relay interfaces. Designed for vertical mounting with secure sealing using a nitrile gasket to prevent leaks.

For engineers and system integrators requiring a compact, robust, and efficient Float Switch, the Cynergy3 RSF64EXS is a proven solution. Explore the wide range of Cynergy3 sensors and control devices available at EnvMart for your electrical and automation needs.
