RS PRO Vertical Float Switch with Nitrile Rubber (NBR) Gasket, NO/NC Output, 240 V AC Max, 120 V DC Max 191-9502

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Vertical Float Switch with Nitrile Rubber (NBR) Gasket, NO/NC Output, 240 V AC Max, 120 V DC Max 191-9502

Name: RS PRO Vertical Float Switch with Nitrile Rubber (NBR) Gasket, NO/NC Output, 240 V AC Max, 120 V DC Max 191-9502
Brand: RS PRO
SKU: 159717
Price: 28 USD
Availability: InStock



Category Float Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	191-9502
Mount Type	Vertical
Housing Material	Polyphenylene Sulphide
Series	RS PRO
Maximum Operating Temperature	120°C
Switch output	NO/NC
Minimum Operating Temperature	-10°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Maximum AC Voltage	240V ac
Gasket Material	Nitrile Rubber (NBR)
NPT connector	1/8in

Key Features

Compact vertical mount design suitable for top or bottom tank installation.
Constructed with durable Polyphenylene Sulphide housing for extended service life.
Operates at temperatures from -10°C to 120°C effectively.
Supports a maximum switching voltage of 240 V AC and 120 V DC.
Maximum switching current of 600 mA ensures safe control of electrical circuits.
Equipped with a 1/8 inch NPT connector for secure tank fitting.
Switch action polarity can be reversed by inverting the float on the stem.
Ideal for applications such as vending machines, printing systems, and chemical dosing equipment.

Product Description

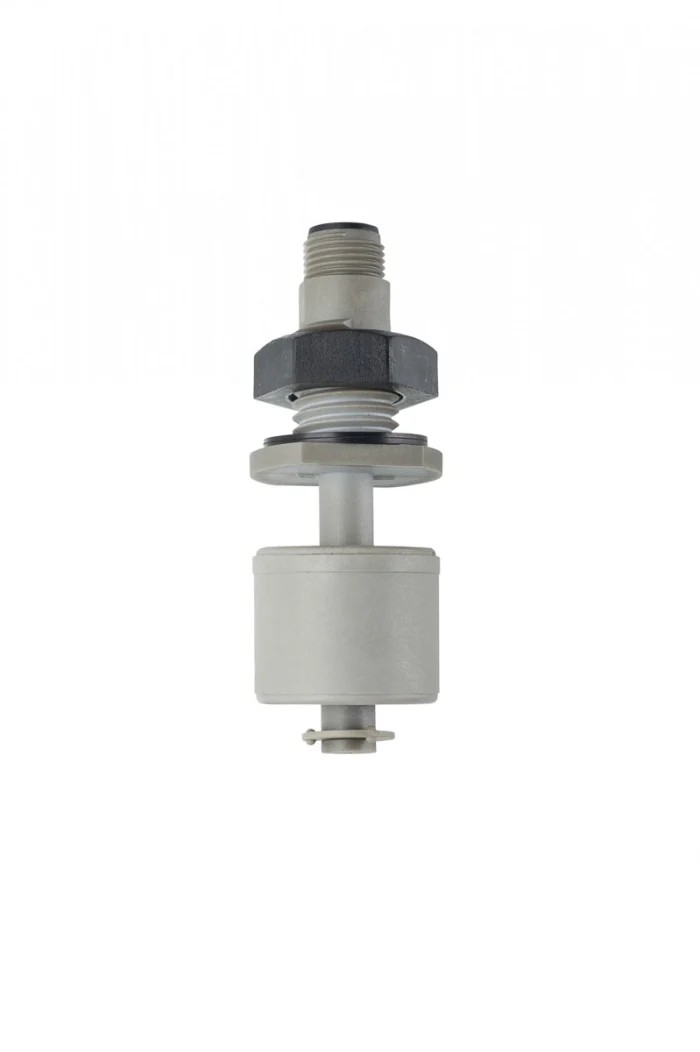

The RS PRO 191-9502 Vertical Float Switch incorporates a nitrile rubber (NBR) gasket and features a vertical mount design. Manufactured with robust Polyphenylene Sulphide housing, it endures operating temperatures ranging from -10°C to 120°C. This float switch supports normally open (NO) and normally closed (NC) switching outputs, accommodating maximum voltages up to 240 V AC and 120 V DC, with a maximum current of 600 mA. The design includes a 1/8 inch NPT connector enabling installation from the top or bottom inside tanks, requiring internal tank access.

The switch’s action can be reversed by removing, inverting, and refitting the float, offering operational flexibility for diverse control setups.

Due to its compact and durable design, the RS PRO 191-9502 is well suited for industrial and commercial applications, including vending machines, printing systems, and chemical dosing equipment where precise fluid level control is essential.

Compact vertical mount design suitable for top or bottom tank installation. Constructed with durable Polyphenylene Sulphide housing for extended service life. Operates effectively between -10°C and 120°C temperature range.

Maximum switching voltage of 240 V AC and 120 V DC with a current rating of 600 mA. Reversible switch action by inverting the float. Equipped with a 1/8 inch NPT connector for secure and leak-free installation. Applicable in vending machines, printing systems, and chemical dosing systems.

This product is sourced from China and is supplied in new condition. It belongs to the RS PRO series known for reliable automation and control gear components. The float switch is an essential device for fluid level monitoring and control in industrial, laboratory, HVAC, manufacturing, and commercial sectors.
