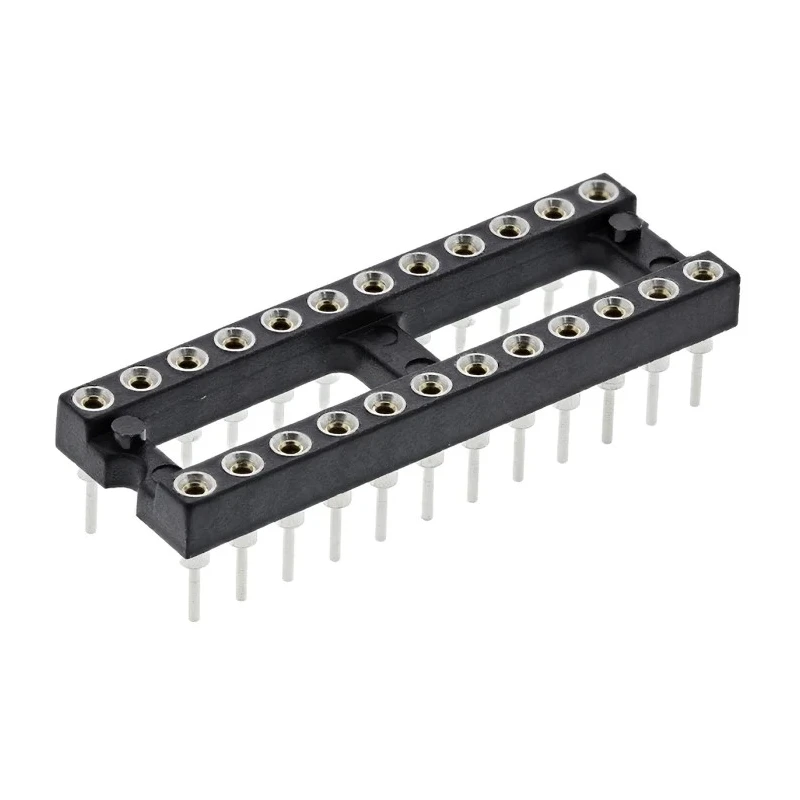

Preci-Dip 110 Series 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-324-41-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 110 Series 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-324-41-001101

Name: Preci-Dip 110 Series 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 110-87-324-41-001101
Brand: Preci-Dip
SKU: 215425
Price: 2.57 USD
Availability: InStock



Category DIL Socket Brand Preci-Dip Condition New

Specifications

Country of Origin	India
Voltage	100, 150V ac
Brand	Preci-Dip
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	30.4mm
Depth	2.8mm
Width	10.1mm
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Beryllium Copper Alloy, Brass
Series	110
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold, Tin
Number of Contacts	24
Pin Type	Turned
Row Width	7.62mm
Stock numbers	702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar

Key Features

Featuring a 2.54 mm pitch for standard dual in-line package compatibility.
Constructed with beryllium copper alloy and brass contacts with gold and tin plating for optimal conductivity and corrosion resistance.
Designed for through-hole mounting with solder termination ensuring secure PCB connection.
Operates safely within voltage ratings of 100 to 150 V AC and current up to 1 ampere.
Housing made of fibreglass reinforced polyethylene terephthalate providing high mechanical strength and thermal stability.
Supports operating temperatures from -55°C to 125°C for varied industrial environments.
Vertical orientation and open frame style allow easy access and inspection.
Suitable for electronic industrial applications requiring robust and precise IC socket solutions.

Product Description

Preci-Dip 110-87-324-41-001101 is a high-quality dual in-line (DIL) socket designed for 24-way vertical connections with a 2.54 mm pitch. This open frame through-hole socket features turned pin contacts plated with gold and tin, offering excellent electrical performance and reliability. Its construction utilises beryllium copper alloy and brass, combined with a fibreglass reinforced polyethylene terephthalate housing, ensuring mechanical durability and thermal resistance.

Rated for currents up to 1 ampere and voltages between 100 and 150 V AC, the socket safely operates over a broad temperature range from -55°C to 125°C. Its solder termination and vertical orientation enable robust mounting and accessibility on printed circuit boards (PCB).

The socket's physical dimensions - 30.4 mm length, 10.1 mm width, and 2.8 mm depth with a 7.62 mm row width - make it suitable for various industrial and electronic applications, including manufacturing, testing, and repair tasks. The open frame design allows easy inspection and replacement of components.

Standard 2.54 mm pitch DIL socket for common IC packages. Gold and tin plated contacts for corrosion resistance and reliable conductivity. Through-hole solder termination for secure PCB connection. Supports 1A current and 100/150 V AC voltage.

Fibreglass reinforced PET housing for improved durability. Wide operating temperature range from -55°C to 125°C. Open frame and vertical orientation enhance usability and maintenance. Complies with UL 94V-0 flammability safety standards.

Ideal for industrial electronics, laboratory testing, and manufacturing environments. Available with multiple stock numbers with or without center bars.

This reliable Preci-Dip DIL socket addresses the stringent demands of electronic component interfacing and is a trusted choice for industrial, commercial, and laboratory applications. Explore more DIL Socket options and complementary products in the EnvMart Electronics Components category.
