Molex 1 mm Pitch 7 Way Right Angle Female Easy-On FFC/FPC Connector, Surface Mount, Solder Termination 52271-0779

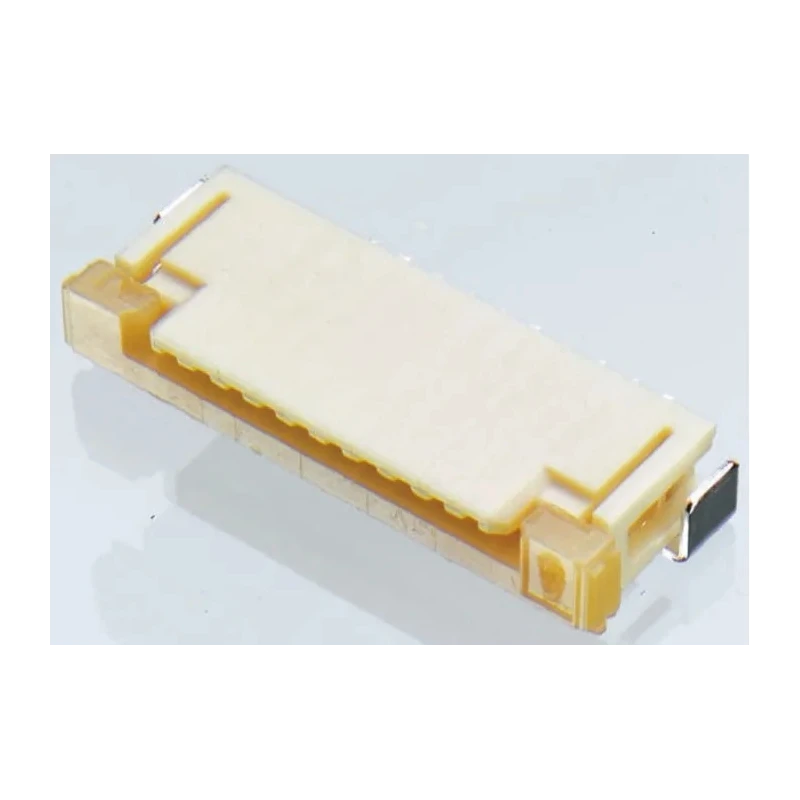

Molex 52271-0779 is a 1 mm pitch, 7 way right angle female FPC Connector specifically designed for surface mount applications with solder termination. This Easy-On Zero Insertion Force (ZIF) connector series offers a space-saving design, ideal for use in compact electronic devices and tight packaging environments.

The slide type actuator rotates 30° enabling effortless and secure Flexible Printed Circuit (FPC) insertion. Contacts made from phosphor bronze with tin bismuth alloy plating ensure high durability and excellent electrical conductivity. The bottom contact position and right angle orientation facilitate reliable connection to the PCB. The connector housing is constructed from robust nylon and includes guides for accurate FPC alignment, alongside a locking mechanism that maintains a secure fit.

Operating voltage supports up to 50 V AC with a current capacity of 500 mA, suitable for various electronic applications. It withstands temperatures ranging from -40°C to 85°C, enabling use in harsh industrial and automotive environments.

Solder tabs on the base reinforce mounting stability and provide strain relief to solder joints, contributing to durability in long-term use. This connector is widely used across automotive navigation systems, consumer electronics, medical devices, telecommunications, mobile phones, GPS systems, and industrial equipment.

The 52271 series enhances design flexibility by combining reliable electrical performance with ease of assembly, making it suitable for high-density PCB designs in industrial, automotive, consumer, and commercial applications.

Compact 1.00 mm pitch design suitable for tight packaging applications. Right angle orientation with bottom contact position for reliable PCB connection. Zero Insertion Force (ZIF) slide type actuator ensures easy FPC insertion and secure connection.

Phosphor bronze contacts plated with tin bismuth alloy for durability and conductivity. Operates at up to 50 V AC and 500 mA current capacity. Housing made of nylon with integrated guides and locking mechanism for FPC alignment and retention.

Temperature range from -40°C to 85°C for broad industrial usage. Solder termination and tabs provide secure PCB retention and strain relief. Explore a wide range of electronic connectors and components available at EnvMart for advanced electronics manufacturing and prototyping.
