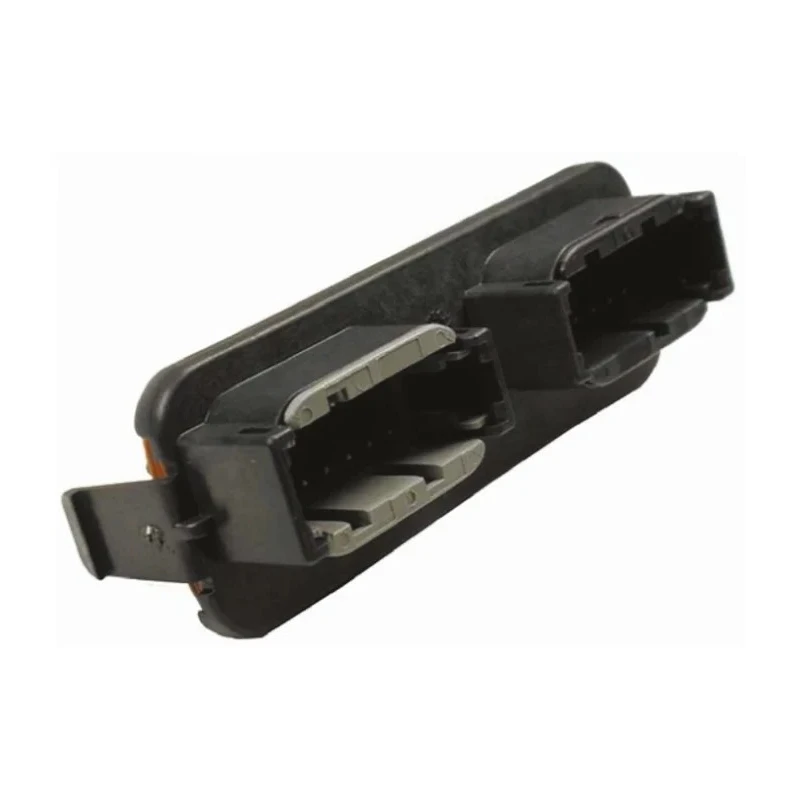

Deutsch DTM Automotive Connector Panel Mount Through Hole 24 Way Solder Termination DTM1312PA12PBR008
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Deutsch |
| Current | 7.5A |
| Height | 36mm |
| Model | DTM1312PA12PBR008 |
| Width | 118.8mm |
| Mount Type | Panel Mount, Through Hole |
| Contact Material | Copper Alloy |
| Series | DTM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Nickel |
| Number of Contacts | 24 |
Key Features
- Features 24 contacts with size 20 pins rated for 7.5A current capacity.
- Panel mount type with through hole solder termination for secure PCB connection.
- Contact pins made of solid copper alloy with nickel plating for corrosion resistance.
- Operating temperature range from -55°C to 125°C suitable for harsh environments.
- Constructed with rugged thermoplastic housing ensuring durability and stability.
- Designed to mate with Deutsch DTM06 series connector plugs for system compatibility.
- Manufactured in the United States adhering to industrial connector standards.
Product Description
Deutsch DTM1312PA12PBR008 is an automotive connector designed for panel mount applications with through hole solder termination. This 24 way connector is ideal for robust sensor and small module attachment in automotive environments requiring reliable electrical connections.
The connector features 24 size 20 contacts constructed from solid copper alloy, plated with nickel to ensure corrosion resistance and electrical durability. The housing is made from rugged thermoplastic material, providing excellent mechanical strength and resistance to harsh operation conditions.
Operating reliably across a wide temperature range from -55°C to 125°C, this connector supports up to 7.5A current per contact. Its two-row layout and dimensions of 118.8mm width and 36mm height facilitate easy integration into panel-mounted electronic assemblies.
The Deutsch DTM13 series interfaces seamlessly with the DTM06 series plugs, enabling modular and flexible automotive wiring systems. Applications include heavy duty automotive electrical sensor interfacing and small module connectivity in commercial vehicles.
This product is made in the United States, ensuring compliance with stringent quality and performance standards for industrial automotive connectors. Features 24 size 20 copper alloy contacts with nickel plating. Panel mount, through hole solder termination design.
Wide operating temperature range from -55 to 125 °C. Rugged thermoplastic housing for durability. Mates with Deutsch DTM06 series connector plugs. Designed for automotive heavy duty sensor and module applications. Explore the range of Deutsch connectors and industrial automotive electrical components available at EnvMart to meet your system design needs.
Explore more products in our Automotive Electrical Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Deutsch DTM1312PA12PBR008 connector has a current capacity of 7.5A per contact.
This connector operates reliably within a temperature range of -55°C to 125°C.
It features 24 contacts, specifically size 20 pins.
This model utilizes a solder termination type for secure connections.
The contact pins are made of solid copper alloy and are plated with nickel for corrosion resistance.
The dimensions of the DTM1312PA12PBR008 are 118.8mm in width and 36mm in height.
It is designed for panel mount applications with a through hole solder termination.
This model is designed to mate with Deutsch DTM06 series connector plugs for compatibility.
This connector is manufactured in the United States.
The housing is constructed from rugged thermoplastic material, providing mechanical strength.
The DTM1312PA12PBR008 has a two-row layout.
It is suitable for heavy duty automotive electrical sensor interfacing and small module connectivity in commercial vehicles.
